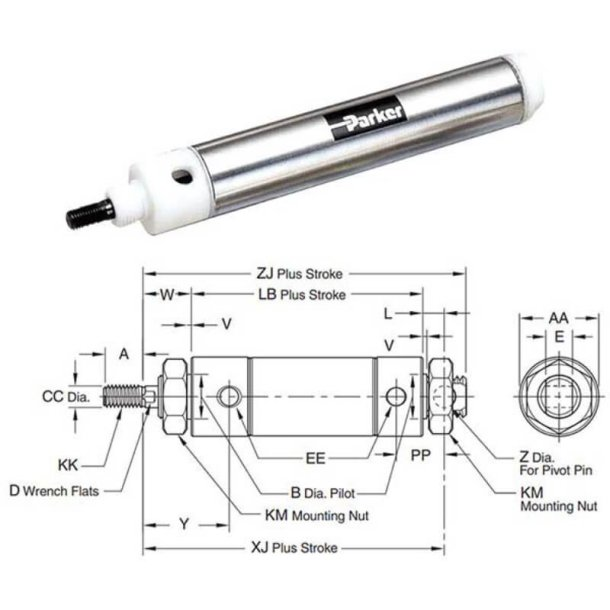

PARKER 2.00DXPSRD24.50 Pneumatic Cylinder
Get it by Thursday, Aug 20
€326.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | 32°F to 160°F |
| Ambient Air Temp. For Operation | 32°F to 160°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/4" NPT Threaded Pneumatic Ports 1/2"-20 UNF Male Threaded Rod End , 2 X 1/4" NPT Threaded Pneumatic Ports 1/2"-20 UNF Male Threaded Rod-End |
| Design | LipSeal Piston Acetal Resin Head, Cap Non Repairable |
| Dia. | 5/8" |
| Function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | 304 Stainless Steel Cylinder Body Aluminium Piston Oil Impregnated Bronze Rod Bushing Steel Rod |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil Impregnated Bronze Rod Bushing Steel Rod |
| Max. Air Pressure | 100 psig |
| Max. Air Service Pressure | 100 psig |
| Mounting | Pivot, Nose Mounting |
| Mounting Mode | Pivot And Nose Mounting (Without Pivot Pin) |
| Shape | Cylindrical |
| Stroke Length | 24 1/2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Max. Air Pressure | Dia. | Bore Size | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
2.00DSRD04.00 | 4" | Nose Mounting | 100 psig | 100 psig | 5/8" | 2" | Cylindrical | €185.53 | |
 |
2.00DSRD02.00 | 2" | Nose Mounting | 100 psig | 100 psig | 5/8" | 2" | Cylindrical | €172.55 | |
 |
2.00DXPSRDB05.00 | 5" | Pivot, Nose Mounting | 100 psig | 100 psig | 5/8" | 2" | Cylindrical | €220.74 | |
 |
2.00DXPSRD15.00 | 15" | Pivot, Nose Mounting | 100 psig | 100 psig | 5/8" | 2" | Cylindrical | €274.83 | |
 |
2.00DXPSRDB22.00 | 22" | Pivot, Nose Mounting | 100 psig | 100 psig | 5/8" | 2" | Cylindrical | €320.26 | |
 |
2.00DXPSRDB18.00 | 18" | Pivot, Nose Mounting | 100 psig | 100 psig | 5/8" | 2" | Cylindrical | €294.19 | |
 |
2.00DSRD03.00 | 3" | Nose Mounting | 100 psig | 100 psig | 5/8" | 2" | Cylindrical | €170.09 |
