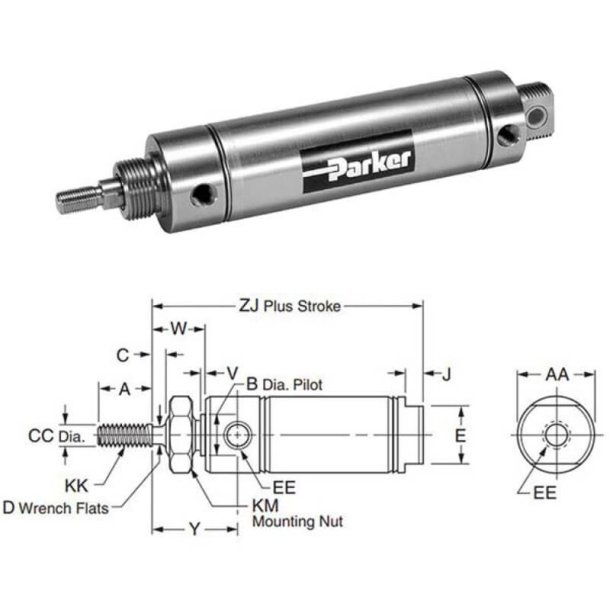

PARKER 2.00DSRGBVY08.00 Pneumatic Cylinder
8"
Get it by Friday, Aug 21
€355.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +250°F |
| Ambient Air Temp. For Operation | -10°F to +250°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/4" NPT Threaded Pneumatic Ports 1/2"-20 UNF Male Threaded Rod End , 2 X 1/4" NPT Threaded Pneumatic Ports 1/2"-20 UNF Male Threaded Rod-End |
| Design | "Lipseal" Piston 303 Stainless Steel Head And Cap Fluorocarbon Seals Piston Bumpers Both Ends Non-Repairable , LipSeal Piston 303 Stainless Steel Head And Cap Fluorocarbon Seals Piston Bumpers Both Ends Non-Repairable |
| Dia. | 5/8" |
| Function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | 304 Stainless Steel Cylinder Body Fluoro Carbon Seals Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Material | Stainless Steel Cylinder Body Fluoro Carbon Seals Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 8" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Dia. | Bore Size | Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
2.00DXPSRGY04.50 | 4 1/2" | Pivot, Nose Mounting | 250 psig | 5/8" | 2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €314.76 | |
 |
2.00DXPSRGY42.00 | 42" | Pivot, Nose Mounting | 250 psig | 5/8" | 2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €589.38 | |
 |
2.00DXPSRGVY06.00 | 6" | Pivot, Nose Mounting | 250 psig | 5/8" | 2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €360.73 | |
 |
2.00DXPSRGY34.00 | - | - | - | - | - | - | - | - | RFQ
|
 |
2.00DXPSRGY07.50 | 7 1/2" | Pivot, Nose Mounting | 250 psig | 5/8" | 2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €335.67 | |
 |
2.00DSRGVY02.00 | 2" | Nose Mounting | 250 psig | 5/8" | 2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €297.86 | |
|
2.00DXPSRGVY05.00 | - | - | - | - | - | - | - | - | RFQ
|
