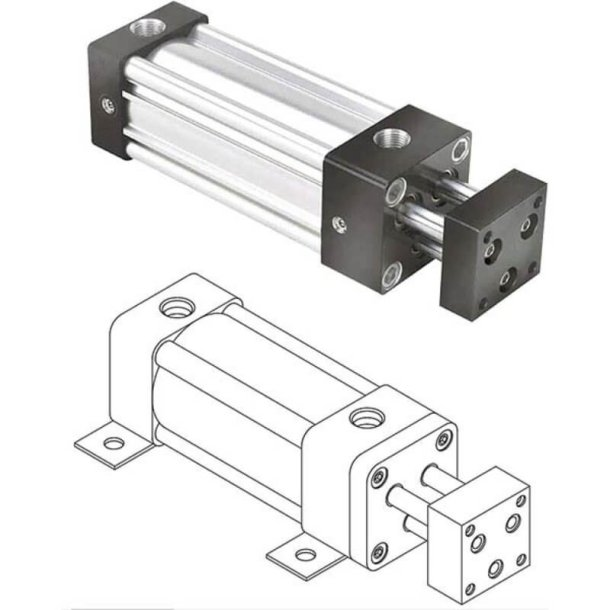

PARKER 2.00CNB2MNRUT9AC04.00 Pneumatic Cylinder
Get it by Thursday, Aug 20
€1,936.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Packaging Assembly |
| Bore Size | 2" |
| Connection Type | 2 X 1/4" NPT Threaded Pneumatic Ports Rod-End Equipped With Standard Tooling Plate |
| Design | Rod End Tooling Plate Cushion At Both Ends NFPA Interchangeable Model Repairable |
| Dia. | 12 mm |
| Function | Double-Acting Non-Rotating NFPA Triple-piston Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Cold-Rolled Carbon Steel Tooling Plate Lubricated Sintered-Bronze Rod Bearing Hard Chrome-Plated And Polished Carbon Steel Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Base Bar Mounting (Non-Nfpa Style) |
| Mounting Mode | Base Bar Mounting Non NFPA Style |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Rod Dia. | 12 mm |
| Shape | Rectangular |
| Stroke Length | 4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Rod Dia. | Dia. | Bore Size | Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2.00CH2MNRUT9AC02.00 | 2" | Cap Rectangular Flange Mounting (NFPA MF2) | 250 psig | 12 mm | 12 mm | 2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €1,771.47 | |
 |
2.00F2MNR3UT9A05.00 | 5" | Side Tap Mounting (NFPA MS4) | 250 psig | 12 mm | 12 mm | 2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €1,779.32 | |
 |
2.00F2MNR3UT9A11.00 | 11" | Side Tap Mounting (NFPA MS4) | 250 psig | 12 mm | 12 mm | 2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €2,091.58 | |
 |
2.00CTE2MNR3UT9AC08.00 | 8" | Sleeve Nut Mounting (NFPA MX5) | 250 psig | 12 mm | 12 mm | 2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €2,191.42 | |
 |
2.00F2MNR3UT9A12.00 | 12" | Side Tap Mounting (NFPA MS4) | 250 psig | 12 mm | 12 mm | 2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €2,143.64 | |
 |
2.00CT2MNRUT9AC18.00 | 18" | No Mount (NFPA MX0) | 250 psig | 12 mm | 12 mm | 2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €2,549.02 | |
 |
2.00CTE2MNRUT9AC14.00 | - | - | - | - | - | - | - | - | - | RFQ
|
