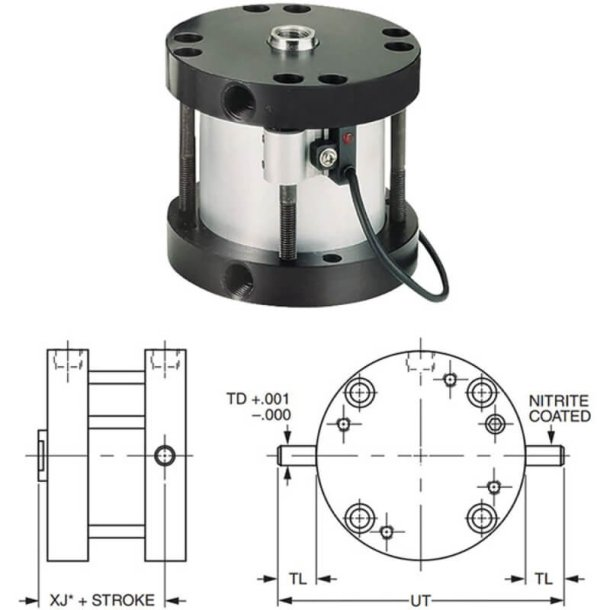

PARKER 2.002RLPE91.00 Pneumatic Cylinder
Get it by Thursday, Aug 20
€369.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +200°F |
| Ambient Air Temp. For Operation | -10°F to +200°F |
| Application Type | General Industry Conveyors Packaging Assembly |
| Bore Size | 2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/8" NPT Threaded Pneumatic Port 1/2"-20 UNF Female Threaded Rod-End |
| Design | Buna-N Piston Quad Seal Anodized Aluminium Head & Cap Permanent Lubrication Repairable |
| Dia. | 3/4" |
| Function | Single-Acting (Spring-Extend) Compact Aluminium Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Coated Aluminium Body High Density Iron Rod Bearing Anodized Aluminium Alloy Heads And Caps Hard Chrome-Plated High-Strength Steel Rod |
| Max. Air Pressure | 145 psig |
| Max. Air Service Pressure | 145 psig |
| Mounting | Cap Trunnion Mounting |
| Mounting Mode | Cap Trunnion Mounting |
| Rod Dia. | 3/4" |
| Shape | Cylindrical |
| Stroke Length | 1" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Max. Air Service Pressure | Rod Dia. | Max. Air Pressure | Bore Size | Shape | Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2.004RLP92.50 | 2 1/2" | Cap Bolt Mounting | 145 psig | 3/4" | 145 psig | 2" | Cylindrical | 3/4" | €321.03 | |
 |
2.001LP44.50 | 4 1/2" | Cap Pivot Eye Mounting | 145 psig | 3/4" | 145 psig | 2" | Cylindrical | 3/4" | €436.78 | |
 |
2.00NLPV91.25 | 1 1/4" | Basic Mounting (Standard) | 145 psig | 3/4" | 145 psig | 2" | Cylindrical | 3/4" | €314.95 | |
 |
2.00NLPLB93.00 | 3" | Basic Mounting (Standard) | 145 psig | 3/4" | 145 psig | 2" | Cylindrical | 3/4" | €388.67 | |
 |
2.00NLPB90.30 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
2.001LP91.75 | 1 3/4" | Cap Pivot Eye Mounting | 145 psig | 3/4" | 145 psig | 2" | Cylindrical | 3/4" | €353.42 | |
 |
2.00NLPLB40.50 | 1/2" | Basic Mounting (Standard) | 145 psig | 3/4" | 145 psig | 2" | Cylindrical | 3/4" | €362.14 |
