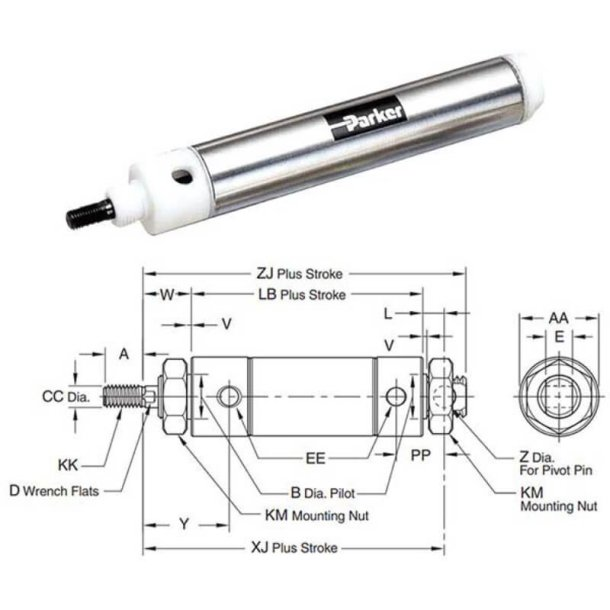

PARKER 1PSR00010387 Pneumatic Cylinder
3 1/2"
Get it by Friday, Aug 21
€106.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | 32°F to 160°F |
| Ambient Air Temp. For Operation | 32°F to 160°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 9/16" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 10-32 UNF Threaded Pneumatic Ports Non-Std. Rod-End Thread |
| Design | "Lipseal" Piston Acetal Resin Head And Cap Based On Model 0.56Dxpsrd303.50 Non-Std. Piston Rod Non-Repairable |
| Dia. | 3/16" |
| Function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Pressure | 100 psig |
| Max. Air Service Pressure | 100 psig |
| Mounting | Pivot, Nose Mounting |
| Mounting Mode | Pivot And Nose Mounting (Without Pivot Pin) |
| Shape | Cylindrical |
| Stroke Length | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
