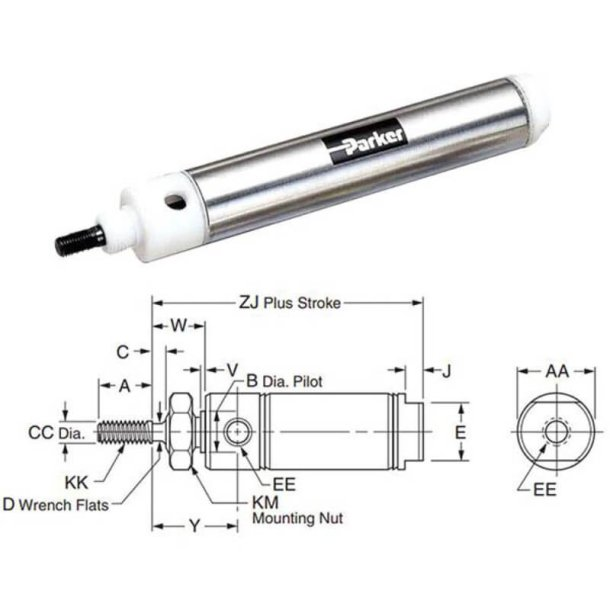

PARKER 1PSR00010060 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€119.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | 32°F to 160°F |
| Ambient Air Temp. For Operation | 32°F to 160°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/8" NPT Threaded Pneumatic Ports Non-Std. Rod-End Thread |
| Design | "Lipseal" Piston Acetal Resin Head And Cap Based On Model 1.50Dsrd304.00 Non-Std. Piston Rod Non-Repairable |
| Dia. | 7/16" |
| Function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Pressure | 100 psig |
| Max. Air Service Pressure | 100 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Shape | Cylindrical |
| Stroke Length | 4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
