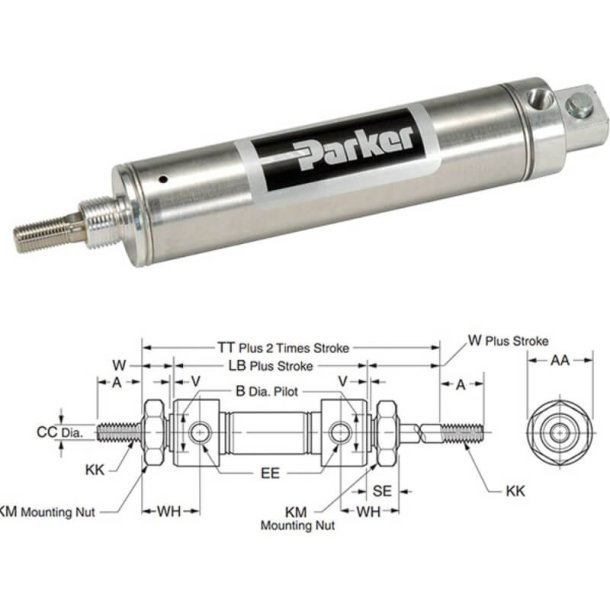

PARKER 1PSR00008468 Pneumatic Cylinder
Get it by Friday, Aug 21
€94.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | 14°F to 140°F |
| Ambient Air Temp. For Operation | 14°F to 140°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 3/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 1/8" NPT Threaded Pneumatic Ports 1/4"-28 UNF Male Threaded Rod Ends (Both Ends) , 2 x 1/8" NPT Threaded Pneumatic Ports 1/4"-28 UNF Male Threaded Rod-Ends (Both Ends) |
| Design | Piston Magnet "Lipseal" Piston Aluminium Head And Cap Based On Model 0.75Kdxsrm01.00 Non-Repairable , Piston Magnet LipSeal Piston Aluminium Head And Cap Based On Model 0.75KDXSRM01.00 Non-Repairable |
| Dia. | 2" x 1/4" |
| Function | Double-Acting Double-Rod Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Threaded Both Ends Mounting |
| Mounting Mode | Threaded Both Ends Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Rod Dia. | 1/4" |
| Shape | Cylindrical |
| Stroke Length | 1" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Air Service Pressure | Stroke Length | Dia. | Mounting | Bore Size | Rod Dia. | Shape | Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1PSR00007613 | 250 psig | 2" | 1/4" | Nose Mounting | 7/8" | - | Cylindrical | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €59.40 | |
 |
1PSR00008638 | 250 psig | 1/2" | 3/16" | Nose Mounting | 9/16" | - | Cylindrical | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €50.98 | |
 |
1PSR00009955 | 250 psig | 2.01" | 5/16" | Nose Mounting | 1 1/16" | 5/16" | Cylindrical | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €145.92 | |
 |
1PSR00007859 | 250 psig | 9 1/2" | 2" X 3/4" , 3/4" | Threaded Both Ends Mounting | 3" | - | Cylindrical | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €430.21 | |
 |
1PSR00008456 | 250 psig | 12" | 5/8" | Pivot, Nose Mounting | 2" | - | Cylindrical | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €362.18 | |
 |
1PSR00007594 | 250 psig | 1 3/4" | 1/4" | Nose Mounting | 3/4" | - | Cylindrical | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €46.77 | |
 |
1PSR00008339 | 250 psig | 24" | 5/8" | Pivot, Nose Mounting | 2" | - | Cylindrical | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | €325.50 |
