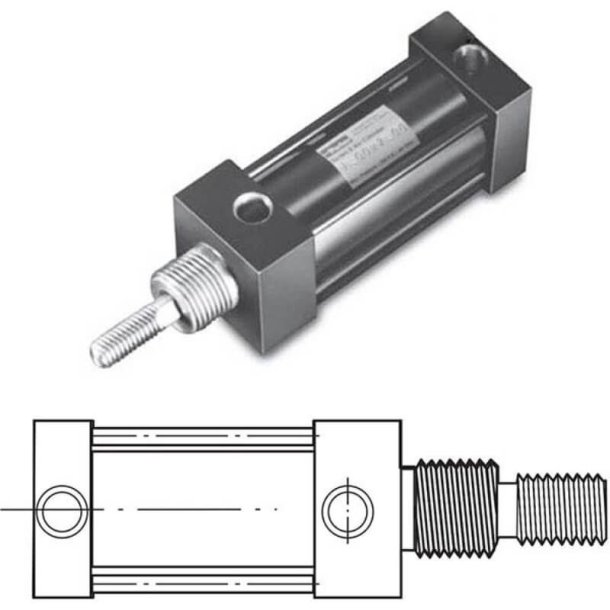

PARKER 1PS000008682 Pneumatic Cylinder
Get it by Monday, Aug 24
€521.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Bore Size | 1 1/8" |
| Connection Type | 2 x 1/8" NPT Threaded Pneumatic Ports Special Rod End Threading (Please Specify At Order Time), 2 x 1/8" NPT Threaded Pneumatic Ports Special Rod-End Threading (Please Specify At Order Time) |
| Design | "LipSeal" Piston Based On Model 1.12NSLU1302.00 Special Rod-End Thread Repairable |
| Dia. | 3/8" , 3/8" No.1 |
| Function | Double-Acting Universal Midget Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Steel Piston Bronze Rod Bearing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 200 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Shape | Rectangular |
| Stroke Length | 2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
