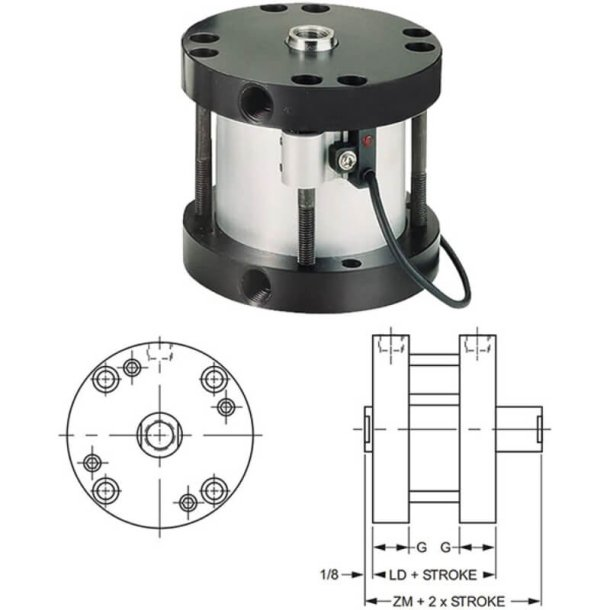

PARKER 1PLP00002524 Pneumatic Cylinder
Get it by Monday, Aug 24
€545.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +200°F |
| Ambient Air Temp. For Operation | -10°F to +200°F |
| Application Type | General Industry Conveyors Packaging Assembly |
| Bore Size | 2 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 1/4" NPT Threaded Pneumatic Ports Special UNF Rod-End Threading (Please Specify At Order Time) (End 1) 1/2"-20 UNF Female Threaded Rod (End 2) |
| Design | Buna-N Piston Quad Seal Anodized Aluminium Head & Cap Based On Model 2.50KNHLP391.50 Special UNF Rod End Thread Permanent Lubrication Repairable , Buna-N Piston Quad Seal Anodized Aluminium Head & Cap Based On Model 2.50Knhlp391.50 Special Unf Rod-End Thread Permanent Lubrication Repairable |
| Dia. | 2" X 3/4" , 3/4" |
| Function | Double-Acting Double-ended Hollow Rod Compact Aluminium Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Coated Aluminium Body High Density Iron Rod Bearing Anodized Aluminium Alloy Heads And Caps Hard Chrome-Plated High-Strength Steel Rod |
| Max. Air Pressure | 145 psig |
| Max. Air Service Pressure | 145 psig |
| Mounting | Basic Mounting (Standard) |
| Mounting Mode | Basic Mounting Standard |
| Shape | Cylindrical |
| Stroke Length | 1 1/2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Mounting | Bore Size | Dia. | Rod Dia. | Max. Air Service Pressure | Max. Air Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1PLP00002476 | 0.63" | Basic Mounting (Standard) | 2 1/2" | 3/4" | 3/4" | 145 psig | 145 psig | Cylindrical | €339.41 | |
 |
1PLP00003003 | - | - | - | - | - | - | - | - | - | RFQ
|
|
1PLP00003068 | - | - | - | - | - | - | - | - | - | RFQ
|
|
1PLP00003013 | - | - | - | - | - | - | - | - | - | RFQ
|
|
1PLP00003072 | - | - | - | - | - | - | - | - | - | RFQ
|
|
1PLP00003073 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
1PLP00002287 | 2 1/2" | Cap Bolt Mounting | 2" | 3/4" | 3/4" | 145 psig | 145 psig | Cylindrical | €403.69 |
