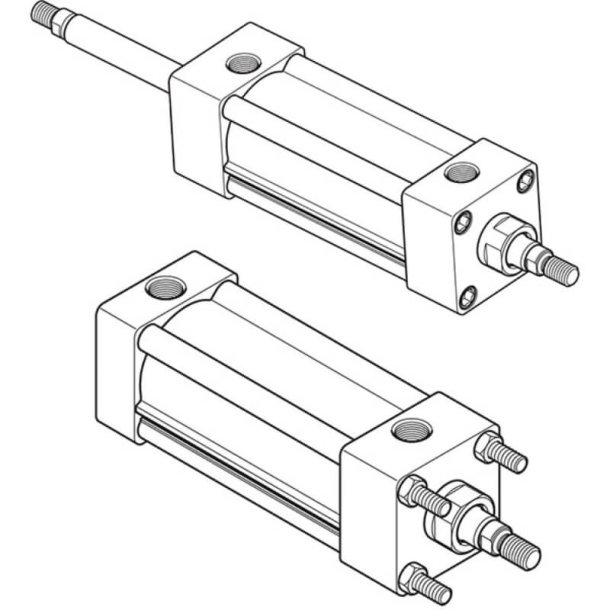

PARKER 1P4MA0044049 Pneumatic Cylinder
15"
Get it by Thursday, Aug 20
€863.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-Ends (Both Ends) |
| Design | Piston Magnet "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Cushion At Both Ends Nfpa Interchangeable Model Based On Model 2.00Cktb4Ma3U34A34Ac15.00 Repairable, Piston Magnet LipSeal Piston Small Male Rod End Threads (Both Ends) Cushion At Both Ends NFPA Interchangeable Model Based On Model 2.00CKTB4MA3U34A34AC15.00 Repairable |
| Dia. | 2 X 1" No.3 Rods (Both Ends) , 2" X 1" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Head End Mounting (NFPA MX3) |
| Mounting Mode | Tie-Rods Extended Head End Mounting NFPA Mx3) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 15" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Bore Size | Mounting | Rod Dia. | Max. Air Service Pressure | Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0024131 | 6" | 5/8" | 2 1/2" | Cap Detachable Clevis Mounting (NFPA MP2) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €405.28 | |
 |
1P4MA0044189 | 14" | 1" , 1" No.1 | 4" | Sleeve Nut Mounting (NFPA MX5) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0024065 | 16" | 1 3/8" | 8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €2,369.59 | |
 |
1P4MA0044742 | 18" | 5/8" | 2 1/2" | Head Rectangular Flange Mounting (NFPA MF1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0024050 | 1" | 1" No.1 | 5" | Head Rectangular Flange Mounting (NFPA MF1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0034076 | 6" | 1" | 2" | Cap Detachable Clevis Mounting (NFPA MP2) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0034160 | 6 3/4" | 1" , 1" No.1 | 3 1/4" | Head Rectangular Flange Mounting (NFPA MF1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €750.36 |
