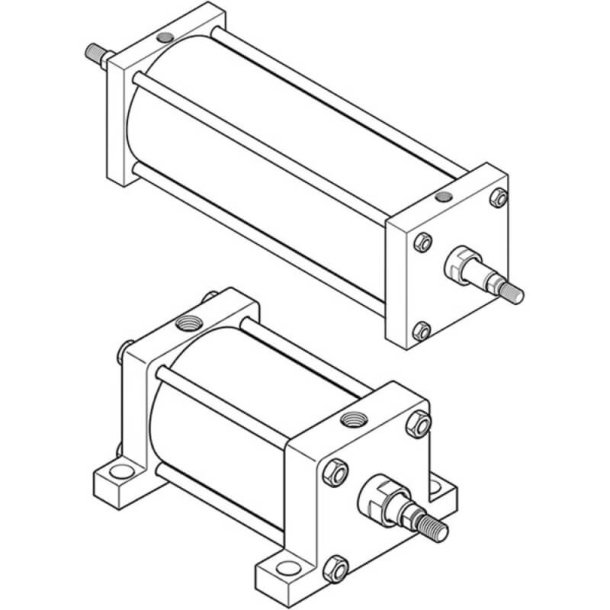

PARKER 1P4MA0039300 Pneumatic Cylinder
Get it by Tuesday, Aug 25
€2,674.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 8" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/4" NPT Threaded Pneumatic Ports 1"-14 UNF Male Small Threaded Rod-Ends (Both Ends) |
| Design | "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Cushion At Cap End Only Nfpa Interchangeable Model Based On Model 8.00Kc4Mau14A14Ac04.00 Repairable, LipSeal Piston Small Male Rod End Threads (Both Ends) Cushion At Cap End Only NFPA Interchangeable Model Based On Model 8.00KC4MAU14A14AC04.00 Repairable |
| Dia. | 2 X 1-3/8" No.1 Rods (Both Ends) , 2" X 1 3/8" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Side Lug Mounting (NFPA MS2) |
| Mounting Mode | Side Lug Mounting (NFPA MS2) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Max. Air Service Pressure | Dia. | Bore Size | Pressure | Mounting | Rod Dia. | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0039046 | 3 22/25" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cap Detachable Clevis Mounting (NFPA MP2) | - | Rectangular | - | RFQ
|
 |
1P4MA0039570 | 2 1/2" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Head Trunnion Mounting (NFPA MT1) | - | Rectangular | €423.52 | |
 |
1P4MA0039463 | 2" | 250 psig | 1 3/8" | 6" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Head Rectangular Flange Mounting (NFPA MF1) | - | Rectangular | €1,314.42 | |
 |
1P4MA0039609 | 8" | 250 psig | 1" , 1" No.1 | 4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Side Tap Mounting (NFPA MS4) | - | Rectangular | €788.21 | |
 |
1P4MA0039081 | 17" | 250 psig | 1" | 2 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cap Fixed Clevis Mounting (NFPA MP1) | - | Rectangular | - | RFQ
|
 |
1P4MA0039772 | 9 1/2" | 250 psig | 1" , 1" No.1 | 5" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | No Mount (NFPA MX0) | - | Rectangular | €7,878.31 | |
 |
1P4MA0039792 | 8 1/2" | 250 psig | 5/8" | 1 1/2" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Side Lug Mounting (NFPA MS2) | - | Rectangular | - | RFQ
|
