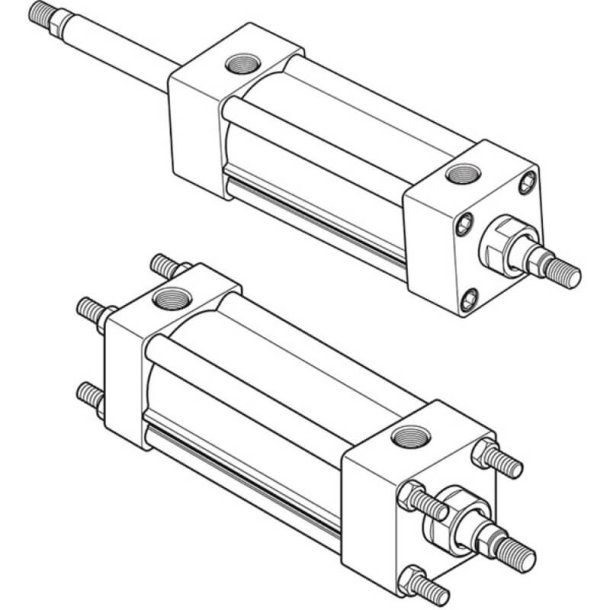

PARKER 1P4MA0036206 Pneumatic Cylinder
3 1/2"
Get it by Tuesday, Sep 1
€766.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 3 1/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod Ends (Both Ends) , 2 x 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-Ends (Both Ends) |
| Design | Piston Magnet "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Nfpa Interchangeable Model Based On Model 3.25Ktd4Ma3U14A14A03.50 Repairable , Piston Magnet LipSeal Piston Small Male Rod End Threads (Both Ends) NFPA Interchangeable Model Based On Model 3.25KTD4MA3U14A14A03.50 Repairable |
| Dia. | 2 X 1" No.1 Rods (Both Ends) , 2" X 1" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Both Ends Mounting (NFPA MX1) |
| Mounting Mode | Tie-Rods Extended Both Ends Mounting (NFPA MX1) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Rod Dia. | Port Size | Rod End Style | Piston No. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0016906 | 2" | 1 1/2" | 5/8" | Sleeve Nut Mounting (NFPA MX5) | - | - | - | - | €566.58 | |
 |
1P4MA0026091 | 2 1/4" | 2" | 1" | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | - | €464.08 | |
 |
1P4MA0036197 | 15" | 2 1/2" | 5/8" | Side Lug Mounting (NFPA MS2) | - | - | - | - | €502.30 | |
 |
1P4MA0036539 | 2" | 1 1/2" | 5/8" | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | - | - | RFQ
|
 |
1P4MA0036800 | 2 1/2" | 4" | 1" , 1" No.1 | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | - | €680.59 | |
 |
1P4MA0036696 | 2" | 2" | 5/8" | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | - | - | RFQ
|
 |
1P4MA0036162 | 1" | 3 1/4" | 1" No.1 | Side End Angle Mounting (NFPA MS1) | - | - | - | - | - | RFQ
|
