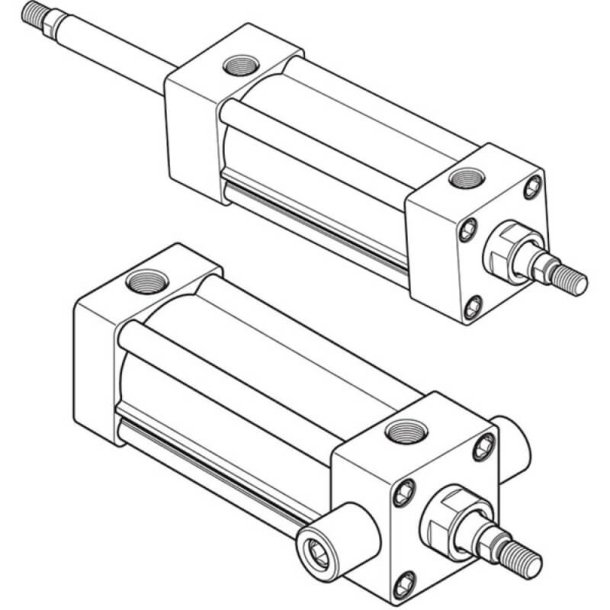

PARKER 1P4MA0033862 Pneumatic Cylinder
5 1/2"
Get it by Friday, Aug 21
€552.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Small Threaded Rod-Ends (Both Ends) |
| Design | "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Nfpa Interchangeable Model Based On Model 2.00Kd4Ma2U14A14A05.50 Repairable |
| Dia. | 2" X 5/8" , 5/8" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Head Trunnion Mounting (NFPA MT1) |
| Mounting Mode | Head Trunnion Mounting NFPA MT1 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 5 1/2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Rod Dia. | Rod End Style | Piston No. | Max. Air Service Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0023478 | 42" | 6" | 1 3/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | 250 psig | €2,953.64 | |
 |
1P4MA0033580 | 14" | 6" | 1 3/8" | Cap Detachable Clevis Mounting (NFPA MP2) | - | - | - | 250 psig | €1,456.79 | |
 |
1P4MA0023454 | 42" | 6" | 1 3/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | 250 psig | €2,485.66 | |
 |
1P4MA0023125 | 18" | 1 1/2" | 5/8" | Side End Angle Mounting (NFPA MS1) | - | - | - | 250 psig | - | RFQ
|
 |
1P4MA0033868 | 24" | 4" | 1" , 1" No.1 | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | 250 psig | €935.98 | |
 |
1P4MA0033921 | 5 3/4" | 1 1/2" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | 250 psig | €413.06 | |
 |
1P4MA0023580 | 6" | 2 1/2" | 5/8" | Intermediate Trunnion Mounting (NFPA MT4) | - | - | - | 250 psig | €957.62 |
