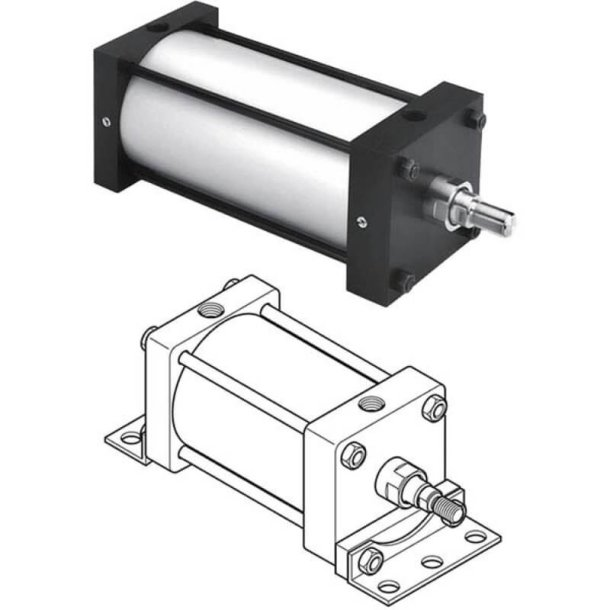

PARKER 1P4MA0029103 Pneumatic Cylinder
22"
Get it by Tuesday, Sep 1
€4,922.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +250°F |
| Ambient Air Temp. For Operation | -10°F to +250°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 6" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/4" NPT Threaded Pneumatic Ports 1"-14 UNF Male Small Threaded Rod-End |
| Design | Piston Magnet "Lipseal" Piston Fluorocarbon Seals Small Male Rod-End Thread Nfpa Interchangeable Model Based On Model 6.00Cb4Ma3Uv14A122.00 Repairable |
| Dia. | 1 3/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Fluoro Carbon Seals Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Side End Angle Mounting (NFPA MS1) |
| Mounting Mode | Side End Angle Mounting (NFPA MS1) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 22" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Bore Size | Mounting | Rod Dia. | Max. Air Service Pressure | Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0029506 | 5" | 1" , 1" No.1 | 4" | Cap Fixed Clevis Mounting (NFPA MP1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €922.95 | |
 |
1P4MA0029183 | 6" | 5/8" | 1 1/2" | Cap Fixed Clevis Mounting (NFPA MP1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0029288 | 10" | 5/8" | 2 1/2" | No Mount (NFPA MX0) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €652.70 | |
 |
1P4MA0029239 | 10" | 2 X 1" No.3 Rods (Both Ends) , 2" X 1" | 2" | Side Lug Mounting (NFPA MS2) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0029749 | 18" | 5/8" | 1 1/2" | Side Tap Mounting (NFPA MS4) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0029835 | 4" | 5/8" | 2" | Cap Fixed Clevis Mounting (NFPA MP1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €1,047.73 | |
 |
1P4MA0029266 | 14" | 1" | 2 1/2" | Head Rectangular Flange Mounting (NFPA MF1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €596.93 |
