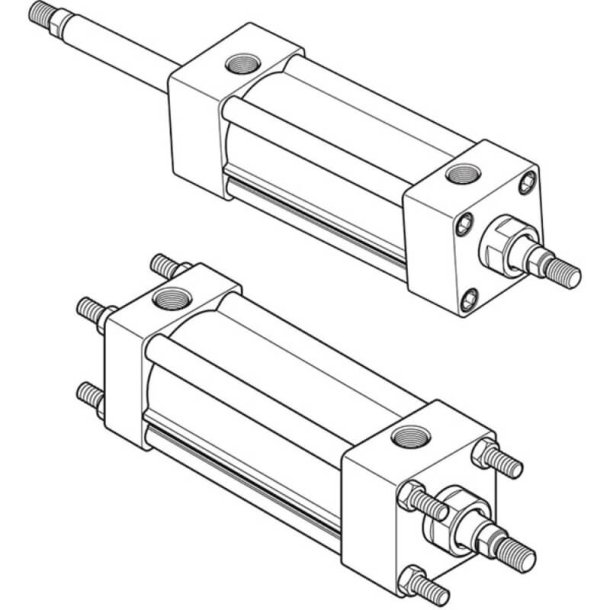

PARKER 1P4MA0028943 Pneumatic Cylinder
1 1/4"
Get it by Tuesday, Sep 1
€521.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 3/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Small Threaded Rod End (End 1) Special UNF Connection (End 2) , 2 x 3/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Small Threaded Rod-End (End 1) Special UNF Connection (End 2) |
| Design | "Lipseal" Piston Small Male Rod-End Thread Nfpa Interchangeable Model Based On Model 1.50Ktd4Ma2U14A13A01.25 Repairable |
| Dia. | 2" X 5/8" , 5/8" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Both Ends Mounting (NFPA MX1) |
| Mounting Mode | Tie-Rods Extended Both Ends Mounting (NFPA MX1) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Rod Dia. | Max. Air Service Pressure | Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0028580 | 52" | 3 1/4" | 1" , 1" No.1 | Intermediate Trunnion Mounting (NFPA MT4) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €1,694.69 | |
 |
1P4MA0028984 | 4" | 4" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0028639 | 2 1/2" | 1 1/2" | 1" | Cap Detachable Clevis Mounting (NFPA MP2) | 1" | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0028978 | 8" | 5" | 1" , 1" No.1 | Cap Trunnion Mounting (NFPA MT2) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0028401 | 3 1/2" | 1 1/2" | 1" | Head Rectangular Flange Mounting (NFPA MF1) | 1" | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €407.78 | |
 |
1P4MA0028394 | 10" | 3 1/4" | 1" , 1" No.1 | Cap Trunnion Mounting (NFPA MT2) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0028363 | 3 1/2" | 2 1/2" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
