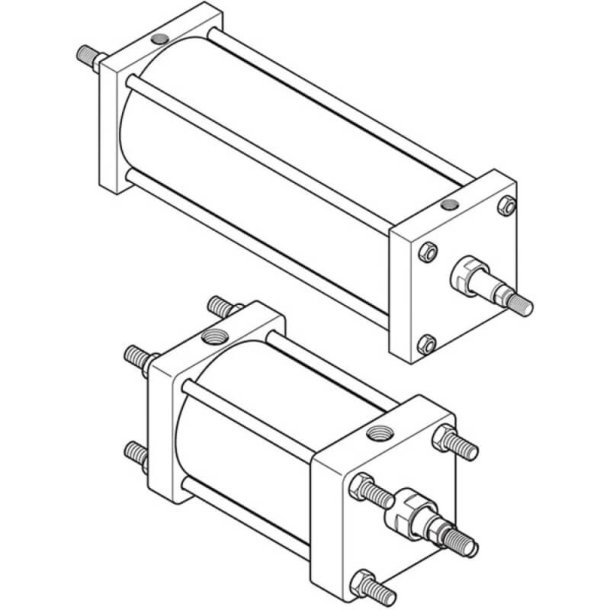

PARKER 1P4MA0028840 Pneumatic Cylinder
Get it by Tuesday, Sep 1
€2,480.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 8" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/4" NPT Threaded Pneumatic Ports 1"-14 UNF Male Small Threaded Rod-Ends (Both Ends) |
| Design | Piston Magnet "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Nfpa Interchangeable Model Based On Model 8.00Ktd4Ma3U14A14A02.00 Repairable , Piston Magnet LipSeal Piston Small Male Rod End Threads (Both Ends) NFPA Interchangeable Model Based On Model 8.00KTD4MA3U14A14A02.00 Repairable |
| Dia. | 2 X 1-3/8" No.1 Rods (Both Ends) , 2" X 1 3/8" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Both Ends Mounting (NFPA MX1) |
| Mounting Mode | Tie-Rods Extended Both Ends Mounting (NFPA MX1) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Rod Dia. | Max. Air Service Pressure | Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0028580 | 52" | 3 1/4" | 1" , 1" No.1 | Intermediate Trunnion Mounting (NFPA MT4) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €1,694.69 | |
 |
1P4MA0028984 | 4" | 4" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0028639 | 2 1/2" | 1 1/2" | 1" | Cap Detachable Clevis Mounting (NFPA MP2) | 1" | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0028978 | 8" | 5" | 1" , 1" No.1 | Cap Trunnion Mounting (NFPA MT2) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0028401 | 3 1/2" | 1 1/2" | 1" | Head Rectangular Flange Mounting (NFPA MF1) | 1" | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €407.78 | |
 |
1P4MA0028394 | 10" | 3 1/4" | 1" , 1" No.1 | Cap Trunnion Mounting (NFPA MT2) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0028363 | 3 1/2" | 2 1/2" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
