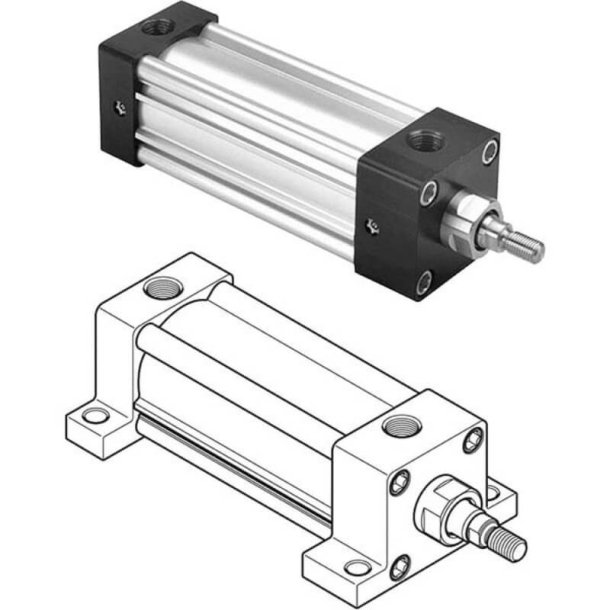

PARKER 1P4MA0026485 Pneumatic Cylinder
13 3/4"
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 3 1/4" |
| Bumpers | W, O Bumpers |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 1/2" NPT Threaded Pneumatic Ports 1 1/4"-12 UNF Male Intermediate Threaded Rod-End , 2 x 1/2" NPT Threaded Pneumatic Ports 1-1/4"-12 UNF Male Intermediate Threaded Rod-End |
| Cylinder Bore Size | 3 1/4" |
| Cylinder Material | Clear Anodized Aluminum Alloy |
| Cylinder Style | Tie Rod, NFPA |
| Design | Piston Magnet "Lipseal" Piston Intermediate Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Based On Model 3.25Cc4Ma3Us38Ac13.75 Special Model Repairable, Piston Magnet LipSeal Piston Intermediate Male Rod End Thread Cushion At Both Ends NFPA Interchangeable Model Based On Model 3.25CC4MA3US38AC13.75 Special Model Repairable |
| Dia. | 1 3/8" |
| End Type | Single Rod |
| Filter Media | Filtered Air |
| Filtration Requirement | 40 μm |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Min. Temp. | -10°F |
| Mounting | Side Lug Mounting (NFPA MS2) |
| Mounting Mode | Side Lug Mounting (NFPA MS2) |
| Piston Material | Aluminum |
| Piston No. | 3 |
| Port Size | 0.5 |
| Port Type | NPTF |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Rod End Style | Male, Intermediate |
| Rod End Thread | 1 1/4"-12 |
| Rod Material | Case Hardened Chrome Plated Carbon Steel |
| Rod Thread Type | UNF |
| Seal Material | Nitrile |
| Seal Type | Lip Seal |
| Series | 4MA Series |
| Shape | Rectangular |
| Stroke Length | 13 3/4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Rod Dia. | Port Size | Rod End Style | Piston No. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0016906 | 2" | 1 1/2" | 5/8" | Sleeve Nut Mounting (NFPA MX5) | - | - | - | - | €566.58 | |
 |
1P4MA0026091 | 2 1/4" | 2" | 1" | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | - | €464.08 | |
 |
1P4MA0036197 | 15" | 2 1/2" | 5/8" | Side Lug Mounting (NFPA MS2) | - | - | - | - | €502.30 | |
 |
1P4MA0036539 | 2" | 1 1/2" | 5/8" | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | - | - | RFQ
|
 |
1P4MA0036800 | 2 1/2" | 4" | 1" , 1" No.1 | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | - | €680.59 | |
 |
1P4MA0036696 | 2" | 2" | 5/8" | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | - | - | RFQ
|
 |
1P4MA0036162 | 1" | 3 1/4" | 1" No.1 | Side End Angle Mounting (NFPA MS1) | - | - | - | - | - | RFQ
|
