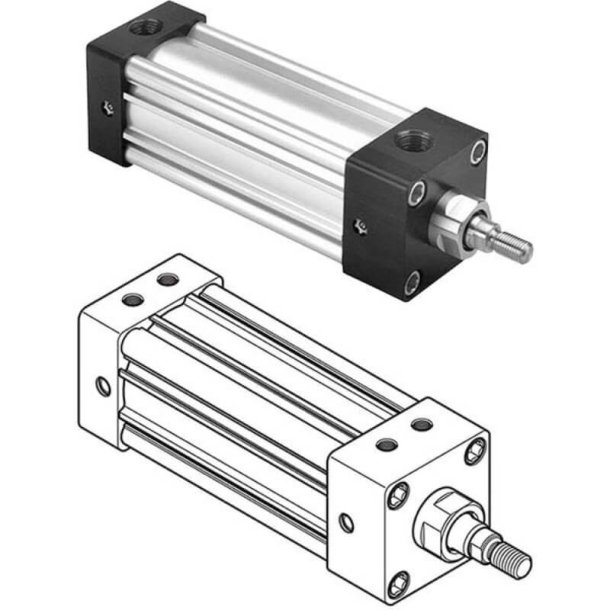

PARKER 1P4MA0024350 Pneumatic Cylinder
9"
Get it by Thursday, Aug 20
€921.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 5" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-End |
| Design | "Lipseal" Piston Small Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Based On Model 5.00Cf4Ma2U14Ac09.00 Repairable |
| Dia. | 1" , 1" No.1 |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Side Tap Mounting (NFPA MS4) |
| Mounting Mode | Side Tap Mounting (NFPA MS4) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 9" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Bore Size | Mounting | Rod Dia. | Max. Air Service Pressure | Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0024131 | 6" | 5/8" | 2 1/2" | Cap Detachable Clevis Mounting (NFPA MP2) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €405.28 | |
 |
1P4MA0044189 | 14" | 1" , 1" No.1 | 4" | Sleeve Nut Mounting (NFPA MX5) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0024065 | 16" | 1 3/8" | 8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €2,369.59 | |
 |
1P4MA0044742 | 18" | 5/8" | 2 1/2" | Head Rectangular Flange Mounting (NFPA MF1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0024050 | 1" | 1" No.1 | 5" | Head Rectangular Flange Mounting (NFPA MF1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0034076 | 6" | 1" | 2" | Cap Detachable Clevis Mounting (NFPA MP2) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | - | RFQ
|
 |
1P4MA0034160 | 6 3/4" | 1" , 1" No.1 | 3 1/4" | Head Rectangular Flange Mounting (NFPA MF1) | - | 250 psig | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Rectangular | €750.36 |
