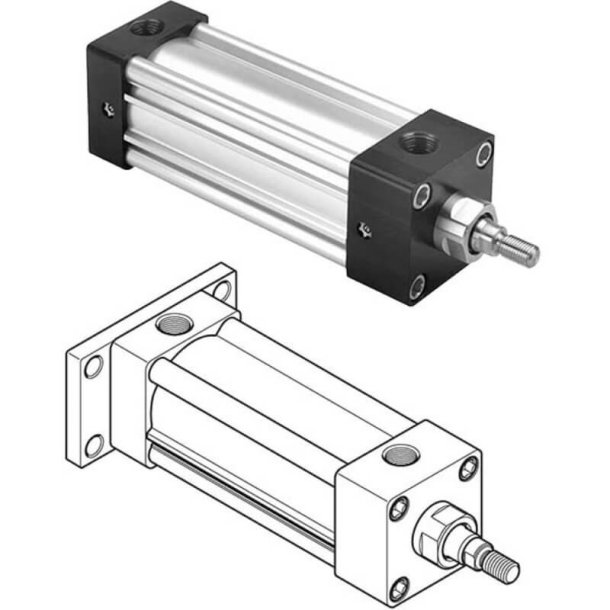

PARKER 1P4MA0023703 Pneumatic Cylinder
7"
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 5" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Small Threaded Rod-End |
| Design | "Lipseal" Piston Small Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Based On Model 5.00Ch4Ma2U34Ac07.00 Repairable, LipSeal Piston Small Male Rod End Thread Cushion At Both Ends NFPA Interchangeable Model Based On Model 5.00CH4MA2U34AC07.00 Repairable |
| Dia. | 1 3/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Cap Rectangular Flange Mounting (NFPA MF2) |
| Mounting Mode | Cap Rectangular Flange Mounting NFPA MF2 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 7" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Rod Dia. | Rod End Style | Piston No. | Max. Air Service Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0023478 | 42" | 6" | 1 3/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | 250 psig | €2,953.64 | |
 |
1P4MA0033580 | 14" | 6" | 1 3/8" | Cap Detachable Clevis Mounting (NFPA MP2) | - | - | - | 250 psig | €1,456.79 | |
 |
1P4MA0023454 | 42" | 6" | 1 3/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | 250 psig | €2,485.66 | |
 |
1P4MA0023125 | 18" | 1 1/2" | 5/8" | Side End Angle Mounting (NFPA MS1) | - | - | - | 250 psig | - | RFQ
|
 |
1P4MA0033868 | 24" | 4" | 1" , 1" No.1 | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | 250 psig | €935.98 | |
 |
1P4MA0033921 | 5 3/4" | 1 1/2" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | 250 psig | €413.06 | |
 |
1P4MA0023580 | 6" | 2 1/2" | 5/8" | Intermediate Trunnion Mounting (NFPA MT4) | - | - | - | 250 psig | €957.62 |
