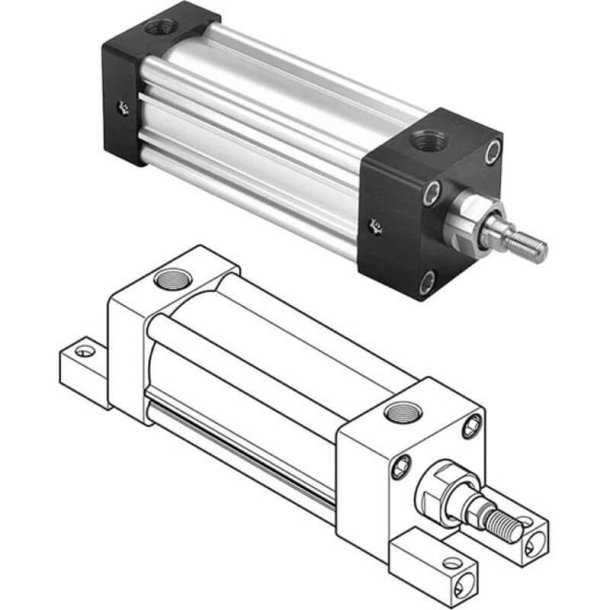

PARKER 1P4MA0022150 Pneumatic Cylinder
62"
Get it by Friday, Aug 21
€2,834.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Small Threaded Rod-End |
| Design | Piston Magnet "Lipseal" Piston Small Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Based On Model 1.50Cg4Ma3Us14Ac62.00 Special Model Repairable |
| Dia. | 5/8" |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Side End Lug Mounting (NFPA MS7) |
| Mounting Mode | Side End Lug Mounting (NFPA MS7) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 62" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
