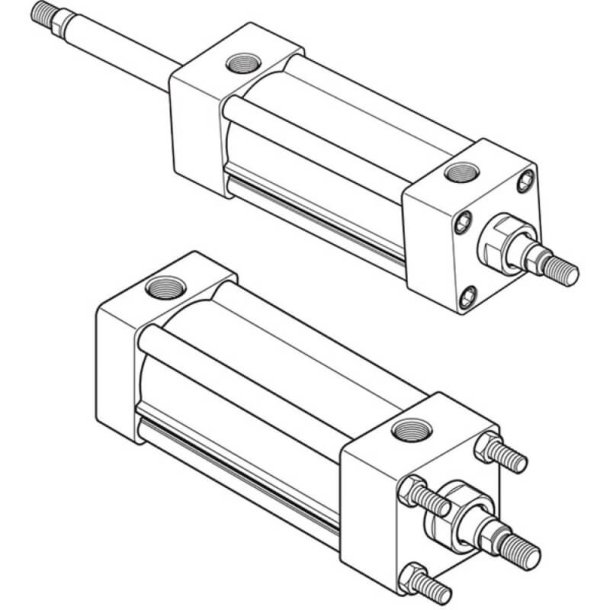

PARKER 1P4MA0021517 Pneumatic Cylinder

Item: EB9EMKModel: 1P4MA0021517
Check Availability
In Stock

Get it by Friday, Aug 21

€863.75 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Cylinder
Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 2"
Chemical Resistance Corrosion Resistance
Connection Type 2 X 3/8" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-Ends (Both Ends)
Design Piston Magnet "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Cushion At Both Ends Nfpa Interchangeable Model Based On Model 2.00Cktb4Ma3U34A34Ac15.00 Repairable, Piston Magnet LipSeal Piston Small Male Rod End Threads (Both Ends) Cushion At Both Ends NFPA Interchangeable Model Based On Model 2.00CKTB4MA3U34A34AC15.00 Repairable
Dia. 2 X 1" No.3 Rods (Both Ends) , 2" X 1"
Function Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Tie-Rods Extended Head End Mounting (NFPA MX3)
Mounting Mode Tie-Rods Extended Head End Mounting NFPA Mx3)
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Stroke Length 15"

Shipping Info:

Ship weight (kg) 1.13
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
