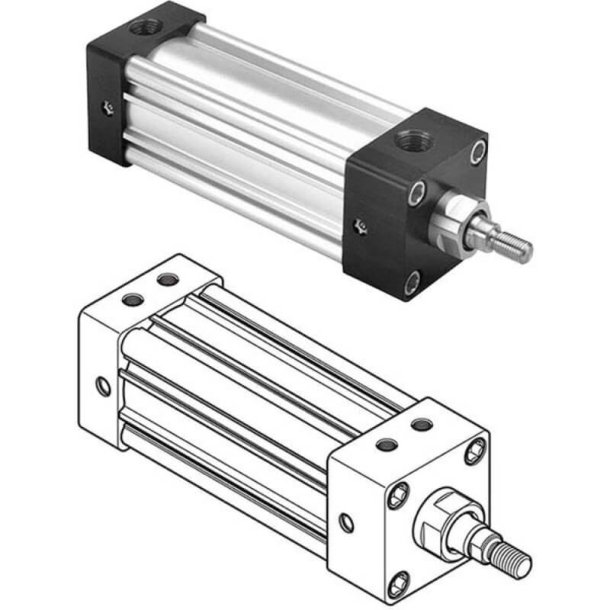

PARKER 1P4MA0021393 Pneumatic Cylinder
20.38"
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 2" |
| Bumpers | W, O Bumpers |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 3/8" NPT Threaded Pneumatic Ports 1/2"-20 UNF Male Intermediate Threaded Rod End , 2 x 3/8" NPT Threaded Pneumatic Ports 1/2"-20 UNF Male Intermediate Threaded Rod-End |
| Corrosion Resistant | Yes |
| Cylinder Material | Clear Anodized Aluminum Alloy |
| Cylinder Style | Tie Rod, NFPA |
| Design | "Lipseal" Piston Intermediate Male Rod-End Thread Nfpa Interchangeable Model Based On Model 2.00Tef4Ma2U18A20.38 Repairable |
| Dia. | 5/8" |
| End Type | Single Rod |
| Filter Media | Filtered Air |
| Filtration Requirement | 40 μm |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Magnetic Ring | No |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Min. Temp. | -10°F |
| Mounting | Sleeve Nut With Side Tap Mounting (NFPA MX5, MS4) |
| Mounting Mode | Sleeve Nut With Side Tap Mounting (NFPA MX5/MS4) |
| Mounting Style | MS4-MX5 |
| Piston Material | Aluminum |
| Piston No. | 1 |
| Port Size | 0.375 |
| Port Type | NPTF |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Rod End Style | Male, Intermediate |
| Rod End Thread | 1/2"-20 |
| Rod Material | Case Hardened Chrome Plated Carbon Steel |
| Rod Thread Type | UNF |
| Seal Material | Nitrile |
| Seal Type | Lip Seal |
| Series | 4MA Series |
| Shape | Rectangular |
| Stroke Length | 20.38" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Port Size | Rod End Style | Piston No. | Bumpers | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0017764 | 50" | 2" | 1" | Side End Angle Mounting (NFPA MS1) | - | - | - | - | €7,554.25 | |
 |
1P4MA0017300 | 1" | 1 1/2" | 5/8" | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | - | €425.02 | |
 |
1P4MA0017015 | 16" | 2 1/2" | 5/8" | Intermediate Trunnion Mounting (NFPA MT4) | - | - | - | - | €880.18 | |
 |
1P4MA0020218 | 1 1/2" | 2" | 5/8" | Side Tap Mounting (NFPA MS4) | - | - | - | - | €511.37 | |
 |
1P4MA0020600 | 12" | 1 1/2" | 5/8" | Cap Detachable Clevis Mounting (NFPA MP2) | - | - | - | - | €464.40 | |
 |
1P4MA0020530 | 6" | 2 1/2" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | RFQ
|
 |
1P4MA0017376 | 7" | 2" | 5/8" | Side Lug Mounting (NFPA MS2) | - | - | - | - | €373.03 |
