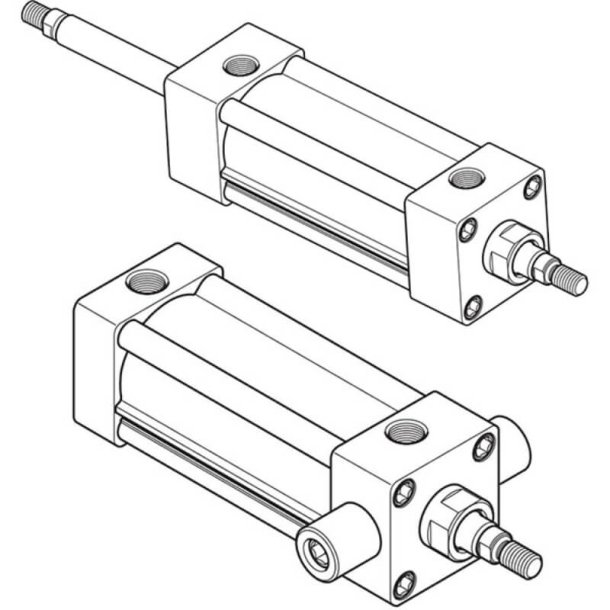

PARKER 1P4MA0020889 Pneumatic Cylinder
Get it by Monday, Aug 24
€2,045.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 2 1/2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 3/8" NPT Threaded Pneumatic Ports Special UNF Rod-End Threading (Please Specify At Order Time) (Both Ends) |
| Design | Piston Magnet "Lipseal" Piston Nfpa Interchangeable Model Based On Model 2.50Kd4Ma3Us13A13A04.00 Special Model Special Unf Rod-End Thread Repairable , Piston Magnet LipSeal Piston NFPA Interchangeable Model Based On Model 2.50KD4MA3US13A13A04.00 Special Model Special UNF Rod End Thread Repairable |
| Dia. | 2" X 5/8" , 5/8" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Head Trunnion Mounting (NFPA MT1) |
| Mounting Mode | Head Trunnion Mounting NFPA MT1 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 4" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Port Size | Rod End Style | Piston No. | Bumpers | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0017764 | 50" | 2" | 1" | Side End Angle Mounting (NFPA MS1) | - | - | - | - | €7,554.25 | |
 |
1P4MA0017300 | 1" | 1 1/2" | 5/8" | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | - | €425.02 | |
 |
1P4MA0017015 | 16" | 2 1/2" | 5/8" | Intermediate Trunnion Mounting (NFPA MT4) | - | - | - | - | €880.18 | |
 |
1P4MA0020218 | 1 1/2" | 2" | 5/8" | Side Tap Mounting (NFPA MS4) | - | - | - | - | €511.37 | |
 |
1P4MA0020600 | 12" | 1 1/2" | 5/8" | Cap Detachable Clevis Mounting (NFPA MP2) | - | - | - | - | €464.40 | |
 |
1P4MA0020530 | 6" | 2 1/2" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | RFQ
|
 |
1P4MA0017376 | 7" | 2" | 5/8" | Side Lug Mounting (NFPA MS2) | - | - | - | - | €373.03 |
