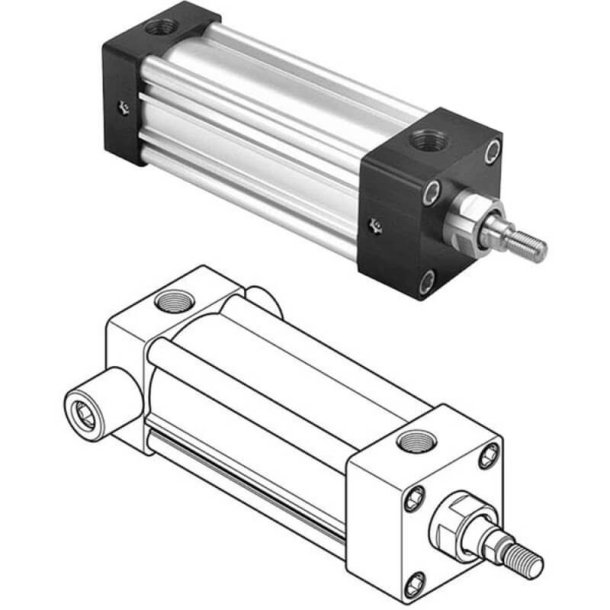

PARKER 1P4MA0020688 Pneumatic Cylinder
15"
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 3 1/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-End |
| Design | "Lipseal" Piston Small Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Based On Model 3.25Cdb4Ma2U14Yac15.00 Repairable, LipSeal Piston Small Male Rod End Thread Cushion At Both Ends NFPA Interchangeable Model Based On Model 3.25CDB4MA2U14YAC15.00 Repairable |
| Dia. | 1" , 1" No.1 |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing 17-4 PH Stainless Steel Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Cap Trunnion Mounting (NFPA MT2) |
| Mounting Mode | Cap Trunnion Mounting NFPA MT2 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 15" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Port Size | Rod End Style | Piston No. | Bumpers | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0017764 | 50" | 2" | 1" | Side End Angle Mounting (NFPA MS1) | - | - | - | - | €7,554.25 | |
 |
1P4MA0017300 | 1" | 1 1/2" | 5/8" | Head Rectangular Flange Mounting (NFPA MF1) | - | - | - | - | €425.02 | |
 |
1P4MA0017015 | 16" | 2 1/2" | 5/8" | Intermediate Trunnion Mounting (NFPA MT4) | - | - | - | - | €880.18 | |
 |
1P4MA0020218 | 1 1/2" | 2" | 5/8" | Side Tap Mounting (NFPA MS4) | - | - | - | - | €511.37 | |
 |
1P4MA0020600 | 12" | 1 1/2" | 5/8" | Cap Detachable Clevis Mounting (NFPA MP2) | - | - | - | - | €464.40 | |
 |
1P4MA0020530 | 6" | 2 1/2" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | RFQ
|
 |
1P4MA0017376 | 7" | 2" | 5/8" | Side Lug Mounting (NFPA MS2) | - | - | - | - | €373.03 |
