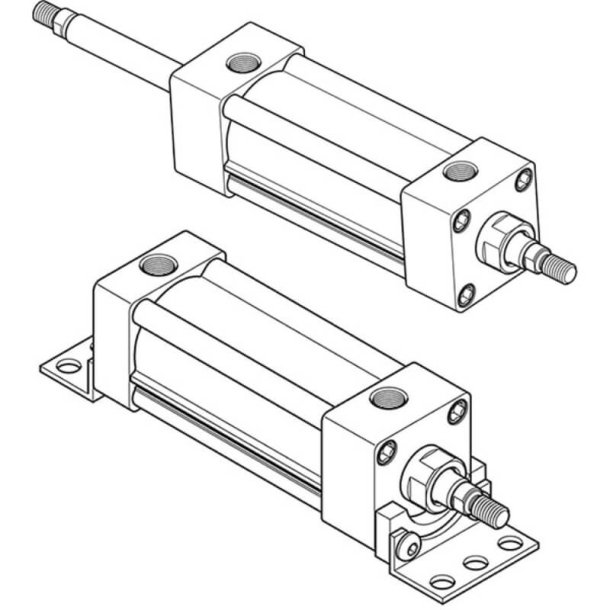

PARKER 1P4MA0019496 Pneumatic Cylinder
10"
Get it by Tuesday, Sep 1
€887.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 3 1/4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 x 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod Ends (Both Ends) , 2 x 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-Ends (Both Ends) |
| Design | Piston Magnet "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Nfpa Interchangeable Model Based On Model 3.25Kcb4Ma3U14A14A10.00 Repairable |
| Dia. | 2 X 1" No.1 Rods (Both Ends) , 2" X 1" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Side End Angle Mounting (NFPA MS1) |
| Mounting Mode | Side End Angle Mounting (NFPA MS1) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 10" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Dia. | Bore Size | Mounting | Rod End Thread | Rod End Style | Piston No. | Rod Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0019732 | 12" | 1" , 1" No.1 | 5" | Tie-Rods Extended Both Ends Mounting (NFPA MX1) | - | - | - | - | - | RFQ
|
 |
1P4MA0019451 | 12" | 1" , 1" No.1 | 4" | Cap Detachable Clevis Mounting (NFPA MP2) | - | - | - | - | - | RFQ
|
 |
1P4MA0019113 | 2" | 5/8" | 2" | Side Tap Mounting (NFPA MS4) | 7/16"-20 | Male, Small | 1 | - | - | RFQ
|
 |
1P4MA0019726 | 3" | 5/8" | 2" | No Mount (NFPA MX0) | - | - | - | - | €533.58 | |
 |
1P4MA0019852 | 2" | 5/8" | 2" | Cap Trunnion Mounting (NFPA MT2) | - | - | - | - | - | RFQ
|
 |
1P4MA0019010 | 14" | 5/8" | 2 1/2" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | RFQ
|
 |
1P4MA0019305 | 2" | 5/8" | 1 1/2" | Side Tap Mounting (NFPA MS4) | - | - | - | - | - | RFQ
|
