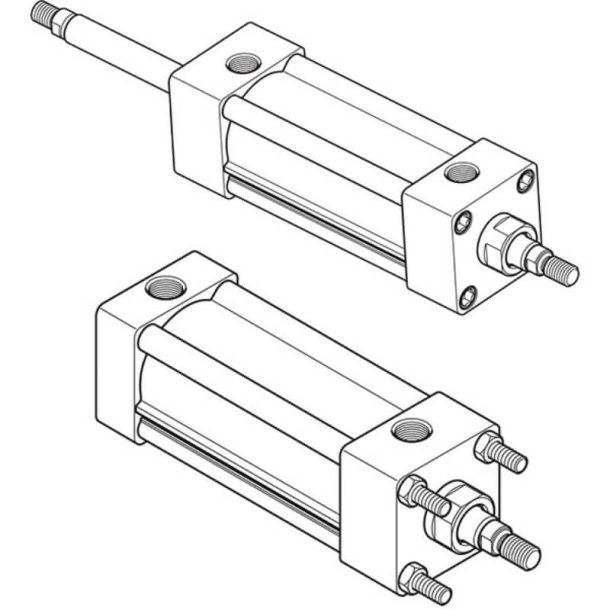

PARKER 1P4MA0018760 Pneumatic Cylinder
19 1/2"
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 2" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-Ends (Both Ends) |
| Design | "Lipseal" Piston Small Male Rod-End Threads (Both Ends) Cushion At Both Ends Nfpa Interchangeable Model Based On Model 2.00Cktb4Ma2U34A34Ac19.50 Repairable |
| Dia. | 2 X 1" No.3 Rods (Both Ends) , 2" X 1" |
| Function | Double-Acting Non-Lube NFPA Double-Ended Tie-Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Tie-Rods Extended Head End Mounting (NFPA MX3) |
| Mounting Mode | Tie-Rods Extended Head End Mounting NFPA Mx3) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 19 1/2" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Port Size | Rod End Style | Piston No. | Rod Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0018811 | 4" | 1 1/2" | 5/8" | Sleeve Nut Mounting (NFPA MX5) | - | - | - | - | - | RFQ
|
 |
1P4MA0018263 | 6" | 2 1/2" | 1" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | RFQ
|
 |
1P4MA0018919 | 4" | 1 1/2" | 5/8" | Side Lug Mounting (NFPA MS2) | - | - | - | - | - | RFQ
|
 |
1P4MA0018871 | 11" | 4" | 1" , 1" No.1 | Cap Trunnion Mounting (NFPA MT2) | - | - | - | - | €1,110.16 | |
 |
1P4MA0018219 | 1 1/2" | 3 1/4" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | €606.38 | |
 |
1P4MA0018895 | 14 1/2" | 2 1/2" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | RFQ
|
 |
1P4MA0018983 | 3" | 4" | 1 3/8" | Cap Rectangular Flange Mounting (NFPA MF2) | - | - | - | - | - | RFQ
|
