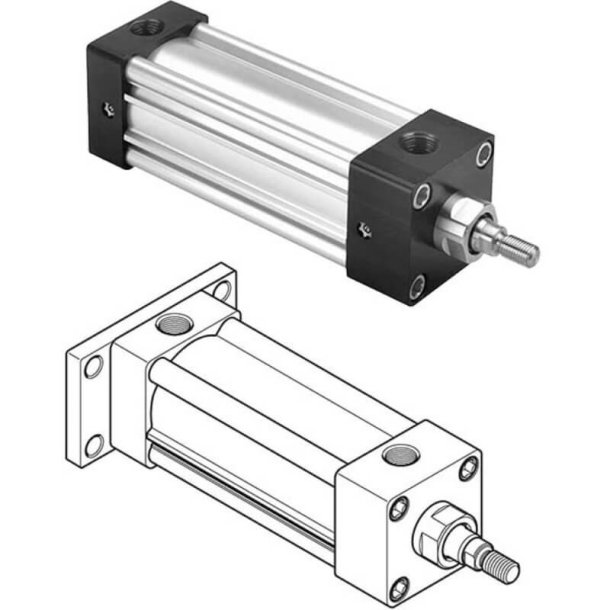

PARKER 1P4MA0018696 Pneumatic Cylinder
13"
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder |
| Ambient Air Temp. | -10°F to +165°F |
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 4" |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Full Threaded Rod-End |
| Design | Piston Magnet "Lipseal" Piston Full Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Based On Model 4.00Ch4Ma3U16Ac13.00 Repairable, Piston Magnet LipSeal Piston Full Male Rod End Thread Cushion At Both Ends NFPA Interchangeable Model Based On Model 4.00CH4MA3U16AC13.00 Repairable |
| Dia. | 1" , 1" No.1 |
| Function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Cap Rectangular Flange Mounting (NFPA MF2) |
| Mounting Mode | Cap Rectangular Flange Mounting NFPA MF2 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Stroke Length | 13" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Stroke Length | Bore Size | Dia. | Mounting | Port Size | Rod End Style | Piston No. | Rod Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1P4MA0018811 | 4" | 1 1/2" | 5/8" | Sleeve Nut Mounting (NFPA MX5) | - | - | - | - | - | RFQ
|
 |
1P4MA0018263 | 6" | 2 1/2" | 1" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | RFQ
|
 |
1P4MA0018919 | 4" | 1 1/2" | 5/8" | Side Lug Mounting (NFPA MS2) | - | - | - | - | - | RFQ
|
 |
1P4MA0018871 | 11" | 4" | 1" , 1" No.1 | Cap Trunnion Mounting (NFPA MT2) | - | - | - | - | €1,110.16 | |
 |
1P4MA0018219 | 1 1/2" | 3 1/4" | 1" , 1" No.1 | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | €606.38 | |
 |
1P4MA0018895 | 14 1/2" | 2 1/2" | 5/8" | Cap Fixed Clevis Mounting (NFPA MP1) | - | - | - | - | - | RFQ
|
 |
1P4MA0018983 | 3" | 4" | 1 3/8" | Cap Rectangular Flange Mounting (NFPA MF2) | - | - | - | - | - | RFQ
|
