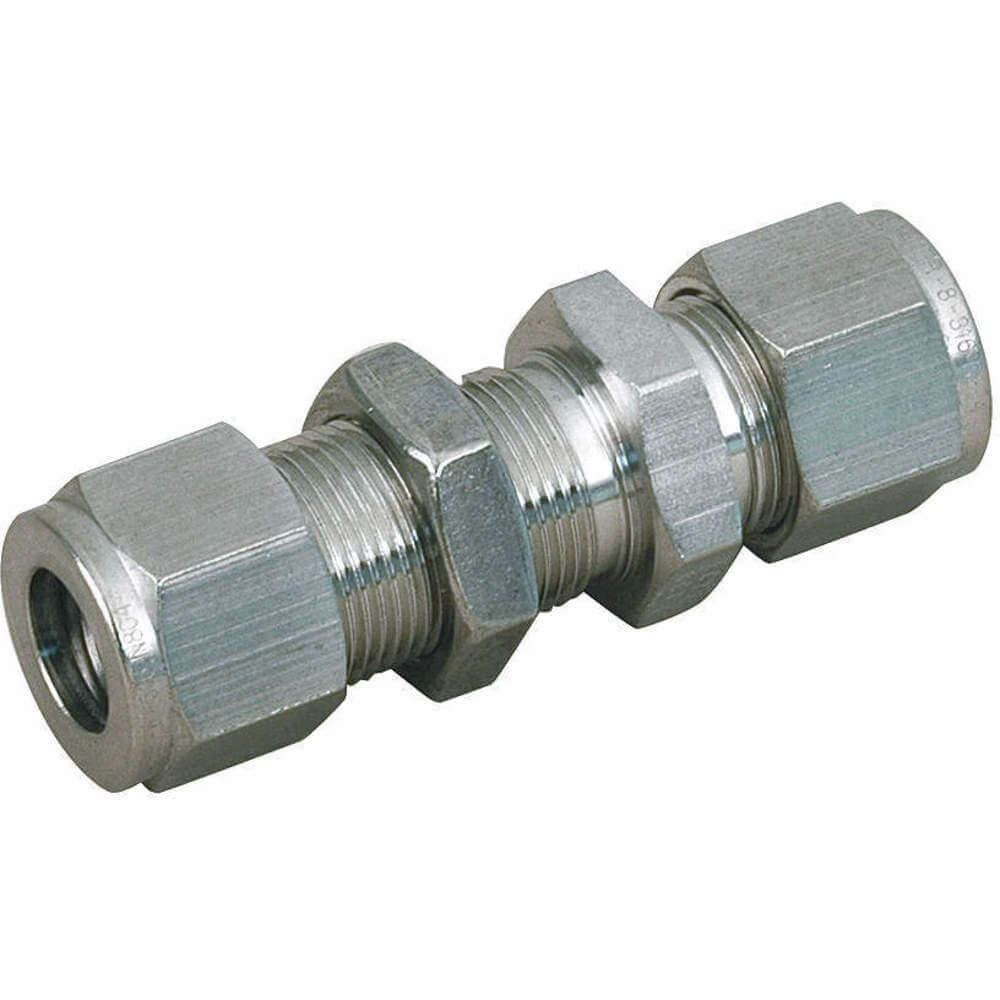

PARKER 1BC1-316 Bulkhead Connector Stainless Steel A-LOK x M 1/16 Inch
Item: AF7GKWModel: 1BC1-316Cross Ref: 20YX65
7 In Stock
Ships within 2 days via
10.00% off
€236.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bulkhead Connector |
| Application | Compressed Natural Gas, Fuels, Gases, Hydrogen, Liquids, Oils, Petroleum Oil, Steam |
| Basic Material | Stainless Steel |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Connector |
| Body Material | Stainless Steel |
| Compatible Fitting Brands | A LOK |
| Compression Thread Size | 1/16" |
| Configuration Sub-type | Bulkhead Union Flareless |
| Configuration Type | Straight |
| Connection Type | A Lok x MNPT |
| End 2 Type | Inch |
| Ferrule Type | Double |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Dia. | 1/16" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Dia. | 1/16" |
| Hex Size | 5/16" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 16800 psi |
| Max. Pressure | 16800 psi |
| Maximum Operating Temperature | 649°C |
| Minimum Operating Temperature | 255°C |
| Overall Length | 1 1/4" |
| Pipe Size | 1/16" |
| Product Datasheet | parker-1bc1-316.pdf |
| Resistance Properties | Corrosion Resistant, Gall Resistant |
| Series | A LOK Series |
| Specific Fitting Shape | Straight Bulkhead Union |
| Specific Pipe Fitting Shape | Bulkhead Connector |
| System Of Measurement | Imperial |
| Temp. Range | -425°F to +1200°F |
| Thread Size A | 10-32 |
| Thread Size B | 10-32 |
| Tube Fitting Material | Stainless Steel |
| Tube Fitting/adapter Type | Bite Type, A Lok Double Ferrule Flareless |
| Tube Size | 1/16" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.79 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 0.79 |
| HS code | 7307290000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Body Material | Hex Size | Max. Operating Pressure | Tube Size | Connection Type | Max. Pressure | Pipe Size | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4BC4-316 | Stainless Steel | 5/8" | 10300 psi | 1/4" | - | - | - | -425°F to +1200°F | €84.12 | |
|
6BC6-316 | Stainless Steel | 3/4" | 6600 psi | 3/8" | - | - | - | -425°F to +1200°F | €124.51 | |
|
8BC8-316 | Stainless Steel | 15/16" | 6700 psi | - | Two Ferrule | - | - | -425°F to +1200°F | €163.61 | |
 |
4BC4-B | Brass | 5/8" | 10300 psi | - | - | - | - | -40°F to +400°F | €34.85 | |
|
6BC6-B | Brass | 3/4" | 6600 psi | 3/8" | - | - | - | -40°F to +400°F | €46.89 | |
|
10BC10-B | Brass | 1 1/16" | 6100 psi | 5/8" | - | - | - | -40°F to +400°F | €149.68 | |
 |
4BC4-S | Carbon Steel | 5/8" | 10300 psi | 1/4" | Compression | 8000 psi | - | -20°F to +800°F | €56.82 |
