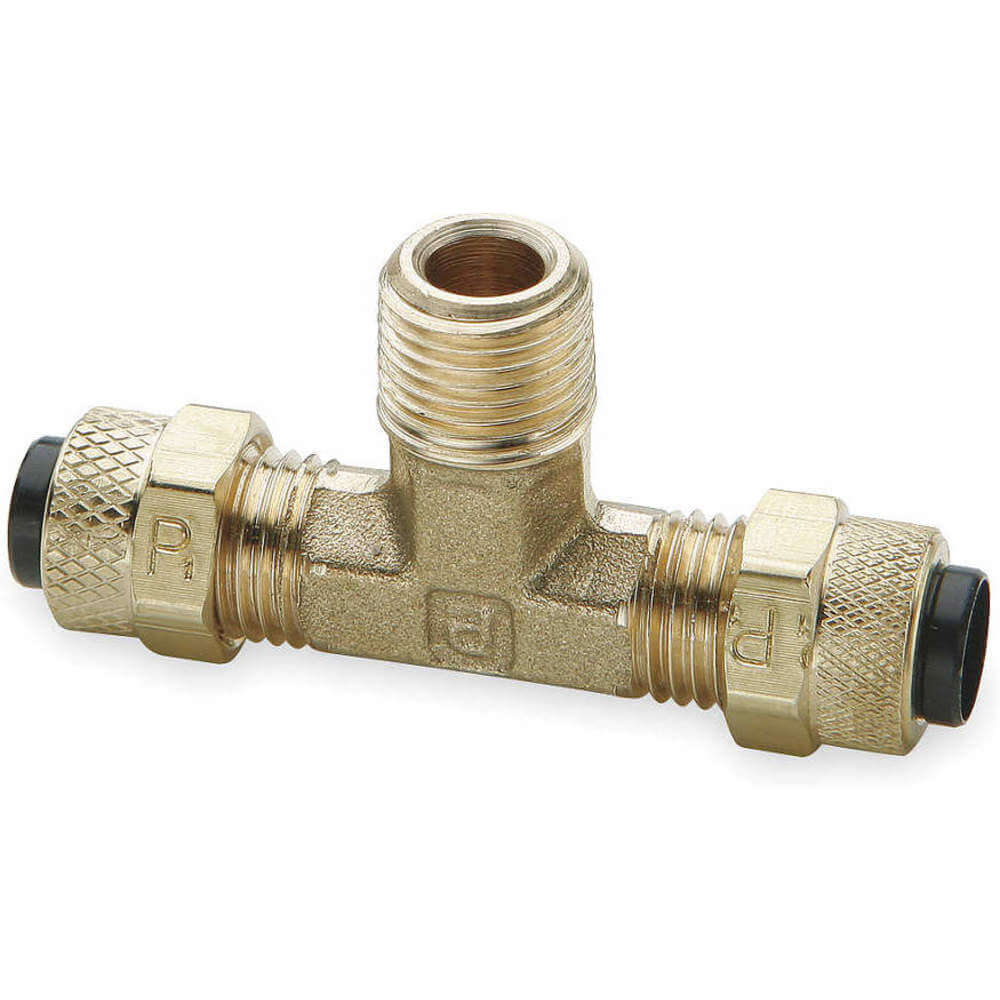

PARKER 172P-5-2 Branch Tee, 5/16 Inch Outside Diameter, Brass
Item: AB3WXGModel: 172P-5-2Cross Ref: 1VPH2
7 In Stock
Ships within 2 days via
10.00% off
€209.60 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Brass |
| Compatible Tube Material | Nylon, Polyethylene, Polypropylene, Vinyl |
| Compression Thread Size | 1/8" |
| Connection Type | Compression x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 5/16" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 5/16" |
| Fitting Side C Connection Type | MNPT |
| Fitting Side C Pipe Size | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 65°C |
| Max. Operating Temp. | 65 Deg C |
| Max. Pressure | 150 psi |
| Maximum Operating Temperature | 150°F |
| Min. Operating Temp. | -17°C |
| Minimum Operating Temperature | 0°F |
| Nut Material | Brass |
| Overall Length | 1 21/32" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-172p-5-2.pdf |
| Resistance Properties | UV Resistant |
| Shape | Branch Tee |
| Sleeve Material | Brass, Acetal Copolymer |
| Specific Fitting Shape | Adapter Tee |
| Specific Pipe Fitting Shape | Branch Tee |
| Style | Tube To Pipe |
| Temp. Range | 0°F to +150°F |
| Thread Size A | 0.125 |
| Thread Size B | 7/16"-24 |
| Tube Outside Dia. | 0.312" |
| Tube Size | 5/16" |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 4.21 |
| Ship width (cm) | 6.86 |
| HS code | 7419995010 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Connection Type | Max. Pressure | Temp. Range | Fitting Side A Tube Outer Diameter | Thread Size B | Fitting Side B Tube Outer Diameter | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 172P-4-2 | 1/8" | 1/4" | Compression x MNPT | 150 psi | 0°F to +150°F | 1/4" | 3/8"-24 | 1/4" | 10 | €144.73 | |
| 172P-4-4 | 1/4" | 1/4" | Compression x MNPT | 150 psi | 0°F to +150°F | 1/4" | 3/8"-24 | 1/4" | 10 | €206.95 | |
| 172P-6-4 | 1/4" | 3/8" | Compression x MNPT | 150 psi | 0°F to +150°F | 3/8" | 1/2"-24 | 3/8" | 10 | €184.80 | |
| 172P-8-6 | 3/8" | 1/2" | Compression x MNPT | 150 psi | 0°F to +150°F | 1/2" | 11/16"-20 | 1/2" | 10 | €340.85 | |
| 172P-6-2 | 1/8" | 3/8" | Compression | 150 psi to 300 psi | 0°F to +175°F | 3/8" | 1/2"-24 | 3/8" | 10 | €314.92 |
