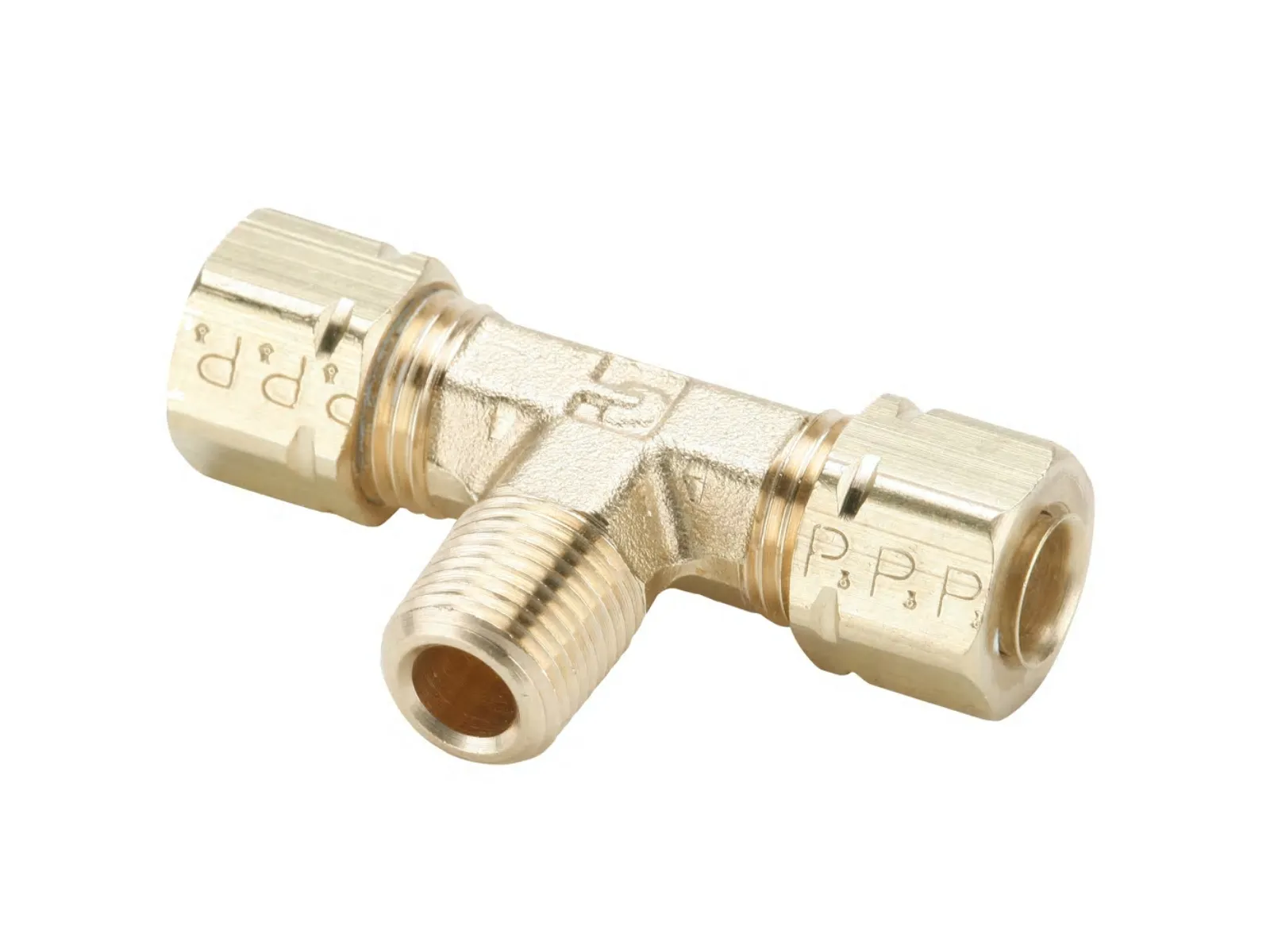

PARKER 172CA-2-2 Branch Tee, 1/8 Inch Outside Diameter, Brass
Item: AB3TWRModel: 172CA-2-2Cross Ref: 1VDN9
7 In Stock
Ships within 2 days via
10.00% off
€240.15 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Forged Brass |
| Compatible Tube Material | Aluminum, Copper, FEA, PFA, TFE, Thermoplastic |
| Compression Thread Size | 5/16" |
| Connection Type | NPTF |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/8" |
| Fitting Side C Connection Type | MNPT |
| Fitting Side C Pipe Size | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi |
| Max. Operating Temp. | 121 Deg C |
| Max. Operating Temp. | 121°C |
| Max. Pressure | 350 psi to 2800 psi |
| Maximum Operating Temperature | 250°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 1 11/16" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-172ca-2-2.pdf |
| Shape | Branch Tee |
| Sleeve Material | Brass |
| Specific Fitting Shape | Adapter Tee |
| Specific Pipe Fitting Shape | Branch Tee |
| Style | Tube To Pipe |
| Temp. Range | -65°F to +250°F |
| Thread Size A | 5/16" |
| Thread Size B | 5/16"-24 |
| Tube Outside Dia. | 1/8" |
| Tube Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 5.08 |
| HS code | 7419995010 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Operating Temp. | Min. Operating Temp. | Pipe Size | Max. Pressure | Tube Size | Fitting Side A Tube Outer Diameter | Fitting Side C Connection Type | Fitting Side C Pipe Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

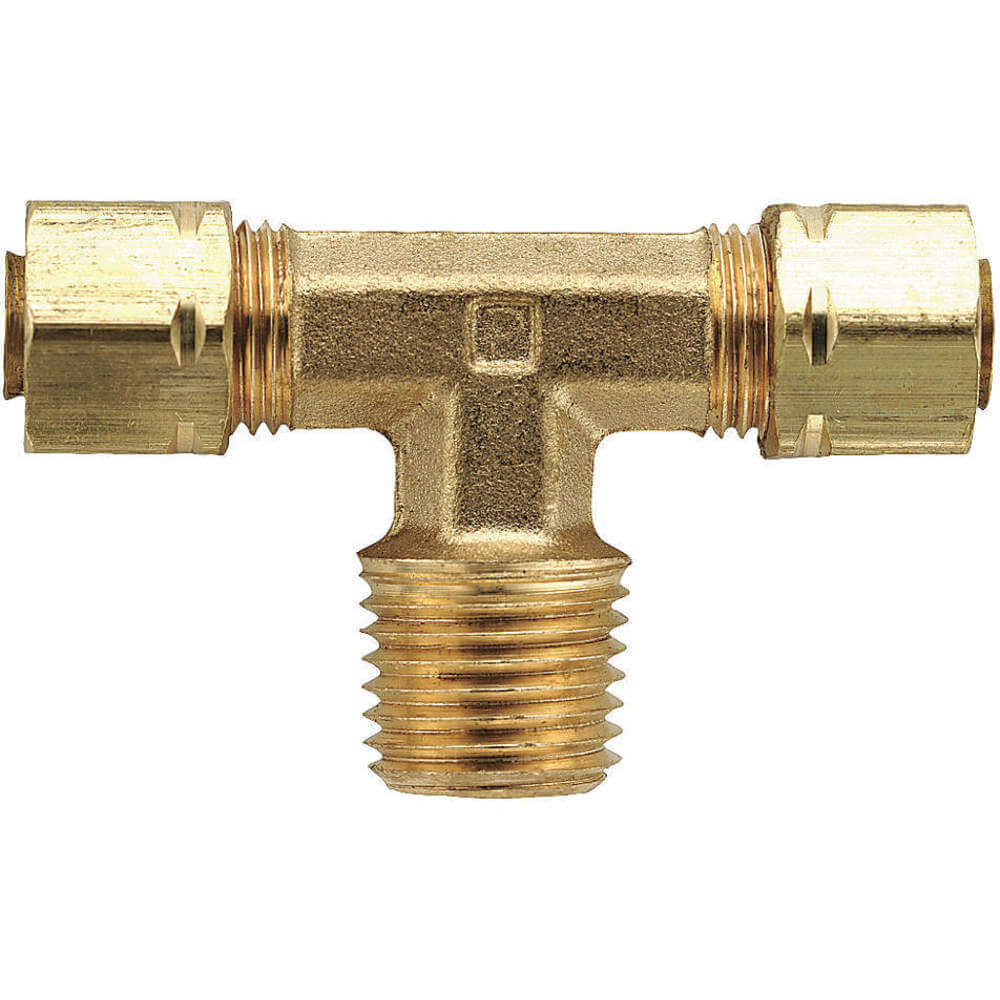

172CA-12-12 | 121°C | -54°C | 3/4" | 550 psi | 3/4" | 3/4" | Compression | - | 6 | €671.62 | |
|
172CA-4-2 | 121°C | -54°C | 1/8" | 1400 psi | 1/4" | 1/4" | MNPT | 1/8" | 1 | €204.60 | |
|
172CA-4-4 | 121°C | -54°C | 1/4" | 1400 psi | 1/4" | 1/4" | MNPT | 1/4" | 1 | €235.29 | |
|
172CA-6-2 | 121°C | -54°C | 3/8" | 1000 psi | 3/8" | 3/8" | MNPT | 1/8" | 10 | €415.33 | |
|
172CA-6-4 | 121°C | -54°C | 1/4" | 1000 psi | 3/8" | 3/8" | MNPT | 1/4" | 10 | €328.58 | |
|
172CA-6-6 | 121°C | -54°C | 3/8" | 1000 psi | - | 3/8" | MNPT | 3/8" | 10 | €387.98 | |
 |

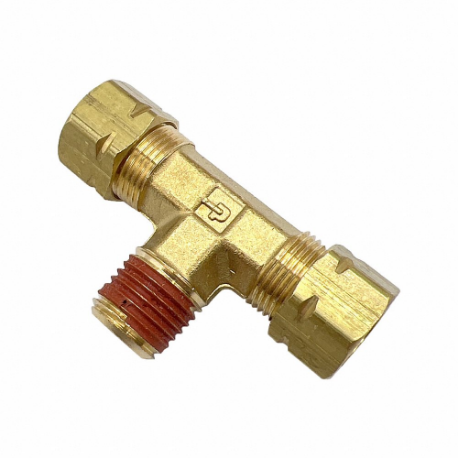

VS172CA-4-2 | 250°F | -65°F | - | - | - | 1/4" | MNPT | 1/8" | 1 | €21.78 |
