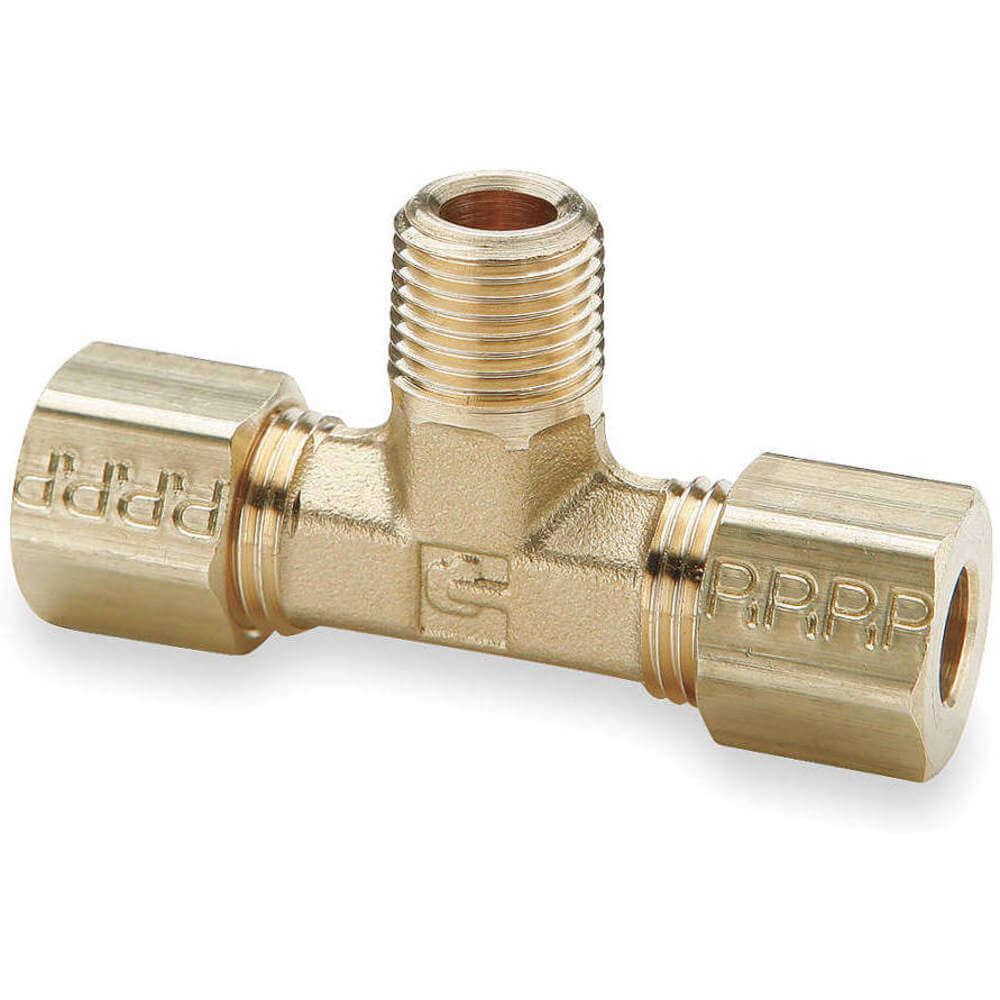

PARKER 172C-2-2 Branch Tee, 1/8 Inch Outside Diameter, Brass
Item: AB3TVUModel: 172C-2-2Cross Ref: 1VDK1
7 In Stock
Ships within 2 days via
10.00% off
€173.96 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Forged Brass |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Compression Thread Size | 5/16" |
| Configuration Sub-type | Male Branch Tee |
| Configuration Type | Tube To Male |
| Connection Type | Compression x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/8" |
| Fitting Side C Connection Type | MNPT |
| Fitting Side C Pipe Size | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 400 psi |
| Max. Operating Temp. | 121°C |
| Max. Operating Temp. | 121 Deg C |
| Max. Pressure | 75 psi to 400 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 1 21/32" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-172c-2-2.pdf |
| Series | Compression Series |
| Shape | Branch Tee |
| Sleeve Material | Brass, Acetal |
| Specific Fitting Shape | Adapter Tee |
| Specific Pipe Fitting Shape | Branch Tee |
| Standards | SAE J512 |
| Style | Tube To Pipe |
| System Of Measurement | Inch |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Size A | 5/16" |
| Thread Size B | 5/16"-24 |
| Thread Type | NPTF |
| Tube Outside Dia. | 1/8" |
| Tube Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 4.21 |
| Ship width (cm) | 6.86 |
| HS code | 7419995010 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Max. Operating Pressure | Fitting Side B Connection Type | Fitting Side A Tube Outer Diameter | Tube Outside Dia. | Thread Size B | Thread Size A | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 172C-3-2 | 1/8" | 3/16" | 400 psi | MNPT | 3/16" | 0.188" | 3/8"-24 | 3/8"-24 | 1 | €185.27 | |
| 172C-4-2 | 1/8" | 1/4" | 300 psi | Compression | 1/4" | 1/4" | 7/16"-24 | 7/16"-24 | 10 | €137.18 | |
| 172C-4-4 | 1/4" | 1/4" | 300 psi | Compression | 1/4" | 1/4" | 7/16"-24 | 7/16"-24 | 10 | €165.47 | |
| 172C-6-2 | 1/8" | 3/8" | 200 psi | MNPT | 3/8" | 3/8" | 9/16"-24 | 9/16"-24 | 10 | €289.47 | |
| 172C-6-4 | 1/4" | 3/8" | 200 psi | Compression | 3/8" | 3/8" | 9/16"-24 | 9/16"-24 | 10 | €234.94 | |
| 172C-6-6 | 3/8" | 3/8" | 200 psi | MNPT | 3/8" | 3/8" | 9/16"-24 | 9/16"-24 | 10 | €273.24 | |
| 172C-8-6 | 3/8" | 1/2" | 200 psi | MNPT | 1/2" | 1/2" | 11/16"-20 | 11/16" | 10 | €309.73 |
