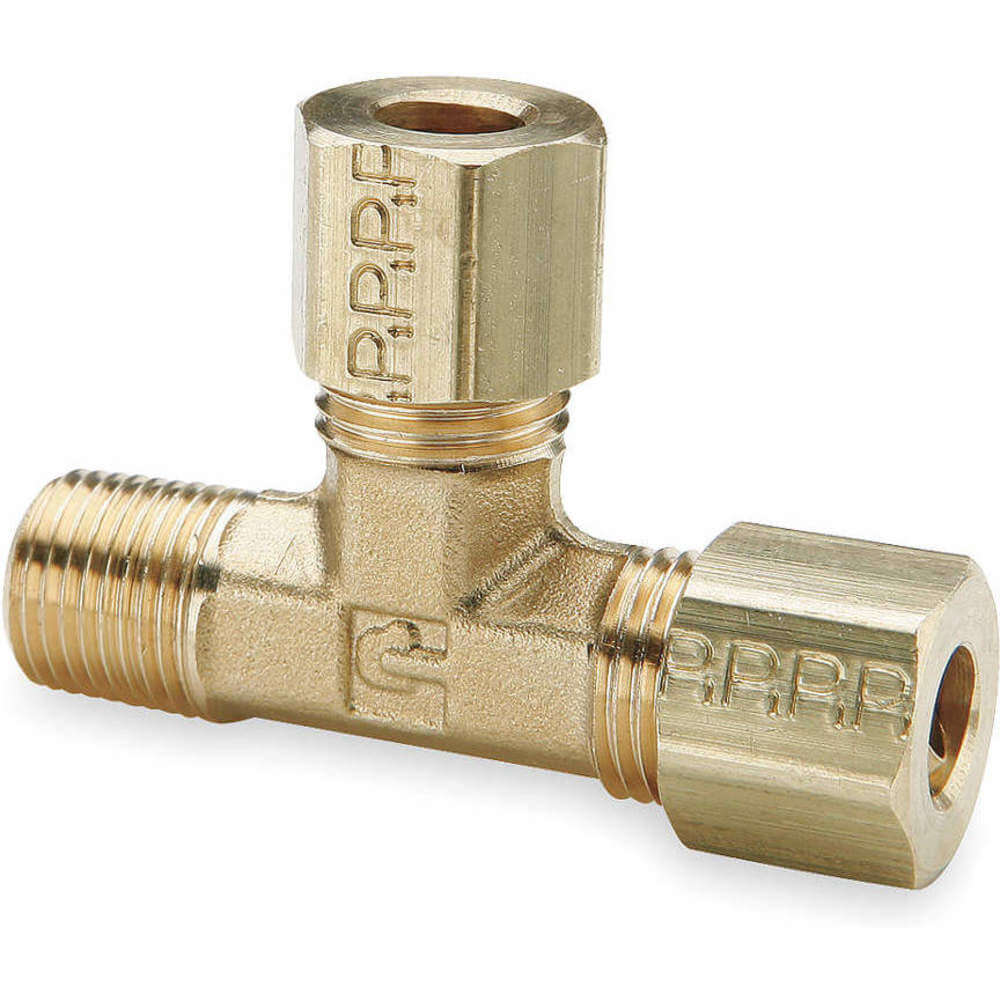

PARKER 171C-4-2 Run Tee, 1/4 Inch Outside Diameter, Brass
Item: AB3TVQModel: 171C-4-2Cross Ref: 1VDJ7
7 In Stock
Ships within 2 days via
10.00% off
€106.07 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Forged Brass |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Compression Thread Size | 7/16"-24 |
| Configuration Sub-type | Male Run Tee |
| Configuration Type | Tube To Male |
| Connection Type | Compression x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Fitting Side C Connection Type | Compression |
| Fitting Side C Tube Outer Diameter | 1/4" |
| Material | Brass |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 121 Deg C |
| Max. Operating Temp. | 121°C |
| Max. Pressure | 75 psi to 400 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 1 21/32" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-171c-4-2.pdf |
| Series | Compression Series |
| Shape | Run Tee |
| Sleeve Material | Brass, Acetal |
| Specific Fitting Shape | Adapter Tee |
| Specific Pipe Fitting Shape | Run Tee |
| Standards | SAE J512 |
| Style | Tube To Pipe |
| System Of Measurement | Inch |
| Temp. Range | -65°F to +250°F |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Size | 7/16"-24 |
| Thread Size A | 7/16"-24 |
| Thread Size B | 7/16"-24 |
| Thread Type | NPTF |
| Tube Outside Dia. | 1/4" |
| Tube Size | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 4.21 |
| Ship width (cm) | 7.11 |
| HS code | 7419995010 |
| Country of Origin | US |
