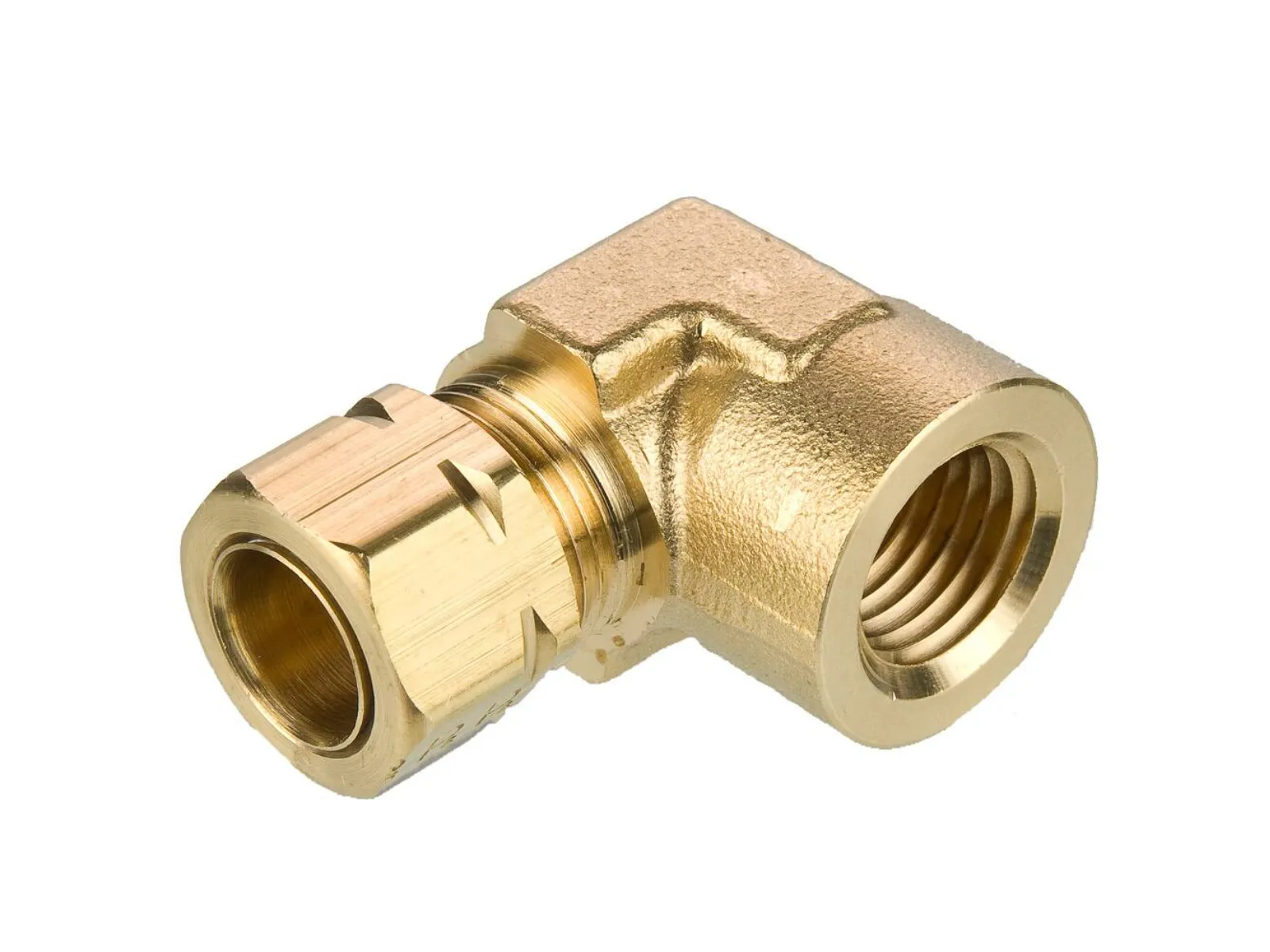

PARKER 170CA-2-2 90 Deg Elbow, 1/8 Inch Outside Diameter, Brass
Item: AB3TWMModel: 170CA-2-2Cross Ref: 1VDN3
7 In Stock
Ships within 2 days via
10.00% off
€102.79 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Forged Brass |
| Compatible Tube Material | Aluminum, Copper, FEA, PFA, TFE, Thermoplastic |
| Compression Thread Size | 5/16" |
| Connection Type | NPTF |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | FNPTF |
| Fitting Side B Pipe Size | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi |
| Max. Operating Temp. | 121°C |
| Max. Operating Temp. | 121 Deg C |
| Max. Pressure | 350 psi to 2800 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 15/16" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-170ca-2-2.pdf |
| Series | Compress-Align Series |
| Sleeve Material | Brass |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Style | Tube To Female Pipe |
| System Of Measurement | Imperial |
| Temp. Range | -65°F to +250°F |
| Thread Size B | 5/16"-24 |
| Tube Outside Dia. | 1/8" |
| Tube Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 0.24 |
| Ship length (cm) | 2.38 |
| Ship width (cm) | 5.08 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Max. Pressure | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Thread Size B | Overall Length | Tube Outside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 170CA-8-8 | 1/2" | 1/2" | 750 psi | - | - | - | - | - | 5 | €227.70 | |
| 170CA-4-2 | 1/8" | 1/4" | 1400 psi | 1/4" | 1/8" | 7/16"-24 | 1" | 1/4" | 1 | €12.87 | |
| 170CA-4-4 | 1/4" | 1/4" | 1400 psi | 1/4" | 1/4" | 7/16"-24 | 1 1/32" | 1/4" | 25 | €446.68 | |
| 170CA-6-4 | 1/4" | 3/8" | 1000 psi | 3/8" | 1/4" | 9/16"-24 | 1 3/32" | 3/8" | 10 | €198.95 | |
| 170CA-6-6 | 3/8" | 3/8" | 1000 psi | 3/8" | 3/8" | 9/16"-24 | 1 5/32" | 3/8" | 10 | €350.75 | |
| 170CA-8-6 | 3/8" | 1/2" | 750 psi | 1/2" | 3/8" | 11/16"-20 | 1 7/32" | - | 10 | €286.63 |
