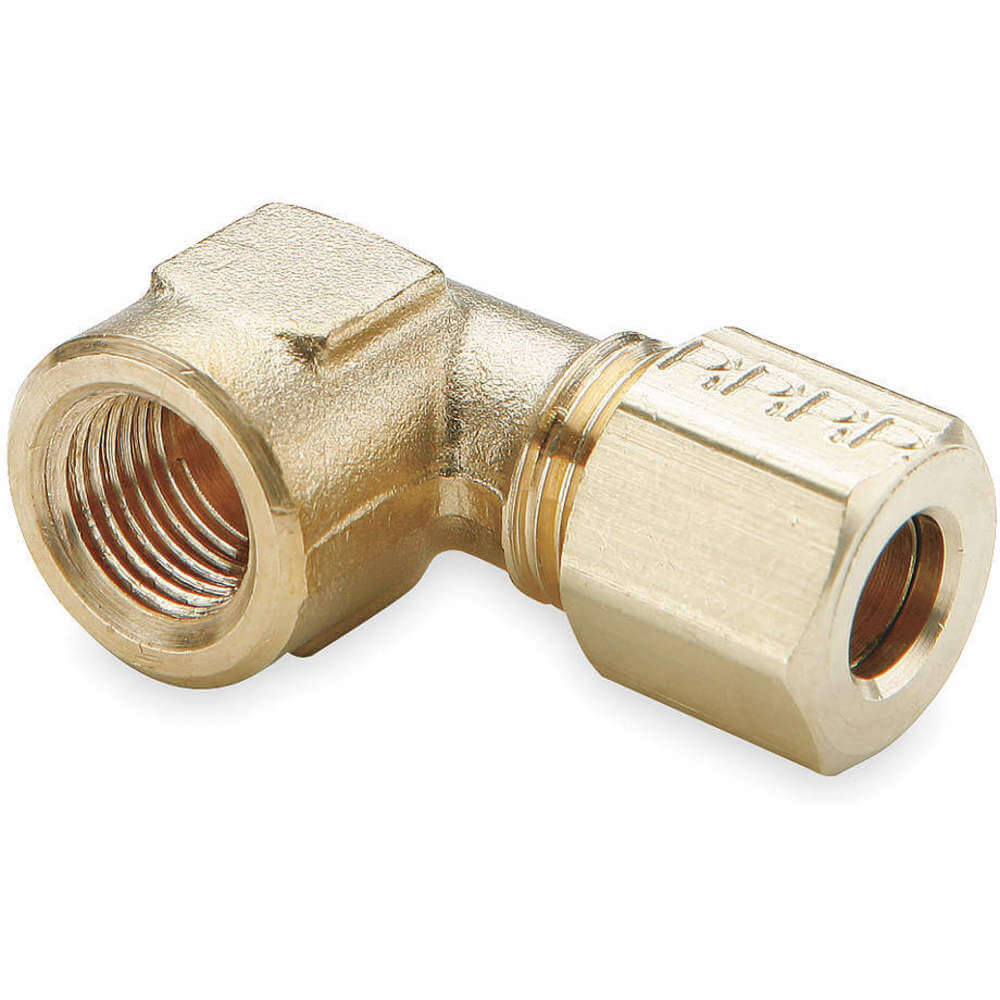

PARKER 170C-2-2 90 Deg Elbow, 1/8 Inch Outside Diameter, Brass
Item: AB3TVLModel: 170C-2-2Cross Ref: 1VDJ2
7 In Stock
Ships within 2 days via
5.00% off
€134.34 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Forged Brass |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Compression Thread Size | 5/16" |
| Configuration Sub Type | Female Elbow 90° |
| Configuration Type | Tube To Female |
| Connection Type | FNPT x Compression |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outside Dia. | 1/8" |
| Fitting Side B Connection Type | FNPTF |
| Fitting Side B Pipe Size | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi , 400 psi |
| Max. Operating Temp. | 121°C , 200°F |
| Max. Operating Temp. | 121 Deg C |
| Max. Pressure | 75 psi to 400 psi |
| Min. Operating Temp. | -54°C , 65°F |
| Nut Material | Brass |
| Overall Length | 7/8" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-170c-2-2.pdf |
| Series | Compression Series |
| Sleeve Material | Brass, Acetal |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Style | Tube To Female Pipe |
| System Of Measurement | Imperial |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Size B | 5/16"-24 |
| Thread Type | NPTF |
| Tube Outside Dia. | 1/8" |
| Tube Size | 1/8" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 0.24 |
| Ship length (cm) | 2.22 |
| Ship width (cm) | 5.08 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Max. Operating Pressure | Fitting Side A Tube Outside Dia. | Fitting Side B Connection Type | Tube Size | Tube Outside Dia. | Max. Operating Temp. | Min. Operating Temp. | Fitting Side B Pipe Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 170C-3-2 | 400 psi | 3/16" | FNPTF | 0.188" | 0.188" | 200°F | 65°F | 1/8" | 10 | €169.68 | |
| 170C-6-4 | 200 psi | - | - | 3/8" | 3/8" | 121°C | -54°C | - | 10 | €217.50 | |
| 170C-8-6 | 200 psi | 1/2" | FNPTF | 1/2" | 1/2" | 200°F | 65°F | 3/8" | 10 | €281.00 | |

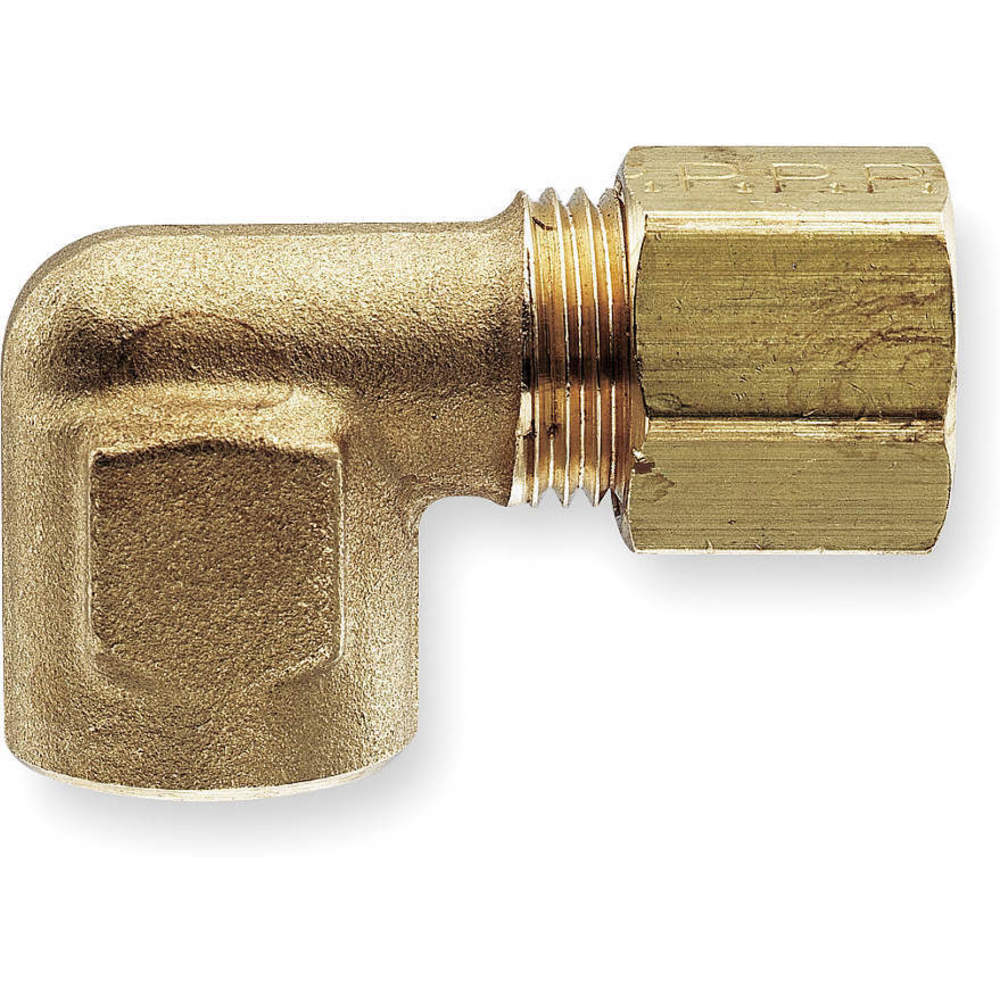

| 170C-4-2 | 300 psi | 1/4" | FNPTF | - | 1/4" | 200°F | 65°F | 1/8" | 1 | €10.40 | |
| 170C-4-4 | 300 psi | 1/4" | FNPTF | 1/4" | 1/4" | 200°F | 65°F | 1/4" | 10 | €146.43 | |
| 170C-6-6 | 1000 psi | 3/8" | FNPTF | 3/8" | 3/8" | 200°F | 65°F | 3/8" | 10 | €254.52 | |
| 170C-8-8 | 200 psi | 1/2" | FNPTF | 1/2" | 1/2" | 200°F | 65°F | 1/2" | 5 | €240.16 |
