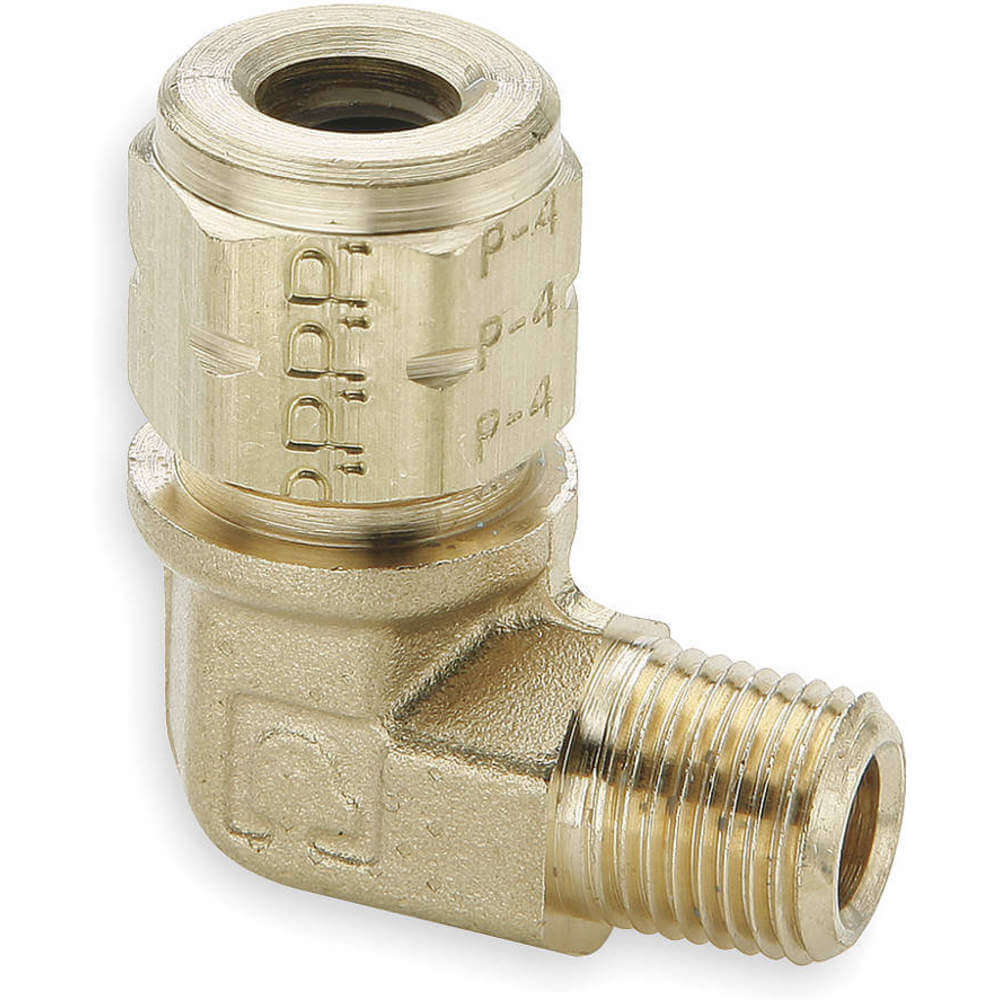

PARKER 169VL-4-2 Compression Fitting, 1/4 Inch Outside Diameter, Brass
Item: AB3WYMModel: 169VL-4-2Cross Ref: 1VPU3
7 In Stock
Ships within 2 days via
10.00% off
€142.98 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Brass |
| Compatible Tube Material | Aluminum, Copper, Glass, Stainless Steel, Steel |
| Configuration Sub-type | Male Elbow 90° |
| Configuration Type | Tube To Male |
| Connection Type | NPTF x Straight Thread |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 400 psi |
| Max. Operating Temp. | 135°C |
| Max. Operating Temp. | 135 Deg C |
| Max. Pressure | 400 psi |
| Maximum Operating Temperature | 275°F |
| Min. Operating Temp. | -34°C |
| Minimum Operating Temperature | 30°F |
| Nut Material | Brass |
| Operating Temp. Range | -30°F to +275°F |
| Overall Length | 1" |
| Pipe Size | 1/8" |
| Product Datasheet | parker-169vl-4-2.pdf |
| Resistance Properties | Vibration Resistant |
| Ring Material | Fluorocarbon |
| Series | VIBRA LOK Series |
| Sleeve Material | Buna N, Fluorocarbon |
| Specific Application | Oil, Fuel And Coolant Lines On Engines |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Style | Tube To Pipe |
| System Of Measurement | Imperial |
| Temp. Range | -30°F to +275°F |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Tube Outside Dia. | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 6.86 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Max. Operating Temp. | Max. Operating Pressure | Max. Pressure | Fitting Side B Connection Type | Fitting Side A Tube Outer Diameter | Tube Outside Dia. | Fitting Side B Pipe Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 169VL-4-4 | 1/4" | 135°C | 400 psi | 400 psi | MNPT | 1/4" | 1/4" | 1/4" | 10 | €253.11 | |
| 169VL-6-4 | 1/4" | 135°C | 225 psi | 225 psi | MNPT | 3/8" | 3/8" | 1/4" | 10 | €284.27 | |

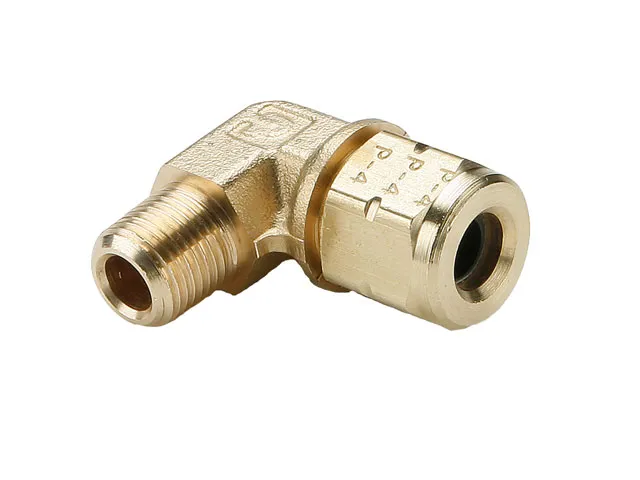

| 169VL-8-6 | 3/8" | 275°F | 200 psi | - | Compression | 1/2" | 1/2" | 3/8" | 1 | €47.61 |
