PARKER 169C-3-4 90 Deg Elbow, 3/16 Inch Outside Diameter, Brass
Item: AB3TUVModel: 169C-3-4Cross Ref: 1VDG5
7 In Stock
Ships within 2 days via
10.00% off
€160.38 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Forged Brass |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Compression Thread Size | 3/8"-24 |
| Configuration Sub-type | Male Elbow 90° |
| Configuration Type | Tube To Male |
| Connection Type | Compression x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 3/16" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/4" |
| Material | Brass |
| Max. Operating Pressure | 400 psi |
| Max. Operating Temp. | 121 Deg C |
| Max. Operating Temp. | 121°C |
| Max. Pressure | 75 psi to 400 psi |
| Maximum Operating Pressure | 1900 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Outer Diameter 1 | 3/16" |
| Overall Length | 7/8" |
| Pipe Size | 1/4" |
| Product Datasheet | parker-169c-3-4.pdf |
| Series | Compression Series |
| Sleeve Material | Brass, Acetal |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Style | Tube To Pipe |
| System Of Measurement | Imperial |
| Thread 1 Size | 1/4" |
| Thread 1 Type | NPT |
| Thread Size | 3/8"-24 |
| Thread Size B | 3/8"-24 |
| Thread Type | NPTF |
| Tube Outside Dia. | 0.188" |
| Tube Size | 0.188" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 0.32 |
| Ship length (cm) | 2.22 |
| Ship width (cm) | 5.08 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Body Material | Max. Pressure | Max. Operating Pressure | Fitting Side A Tube Outer Diameter | Tube Outside Dia. | Fitting Side B Pipe Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 169C-10-6 | 3/8" | 5/8" | Brass | 75 psi to 400 psi | 400 psi | 5/8" | 5/8" | 3/8" | 10 | €327.65 | |
| 169C-12-12 | 3/4" | 3/4" | Forged Brass | 75 psi to 400 psi | 550 psi | 3/4" | 3/4" | 3/4" | 10 | €558.65 | |
| 169C-12-8 | 1/2" | 3/4" | Forged Brass | 75 psi to 400 psi | 550 psi | 3/4" | 3/4" | 1/2" | 10 | €502.07 | |

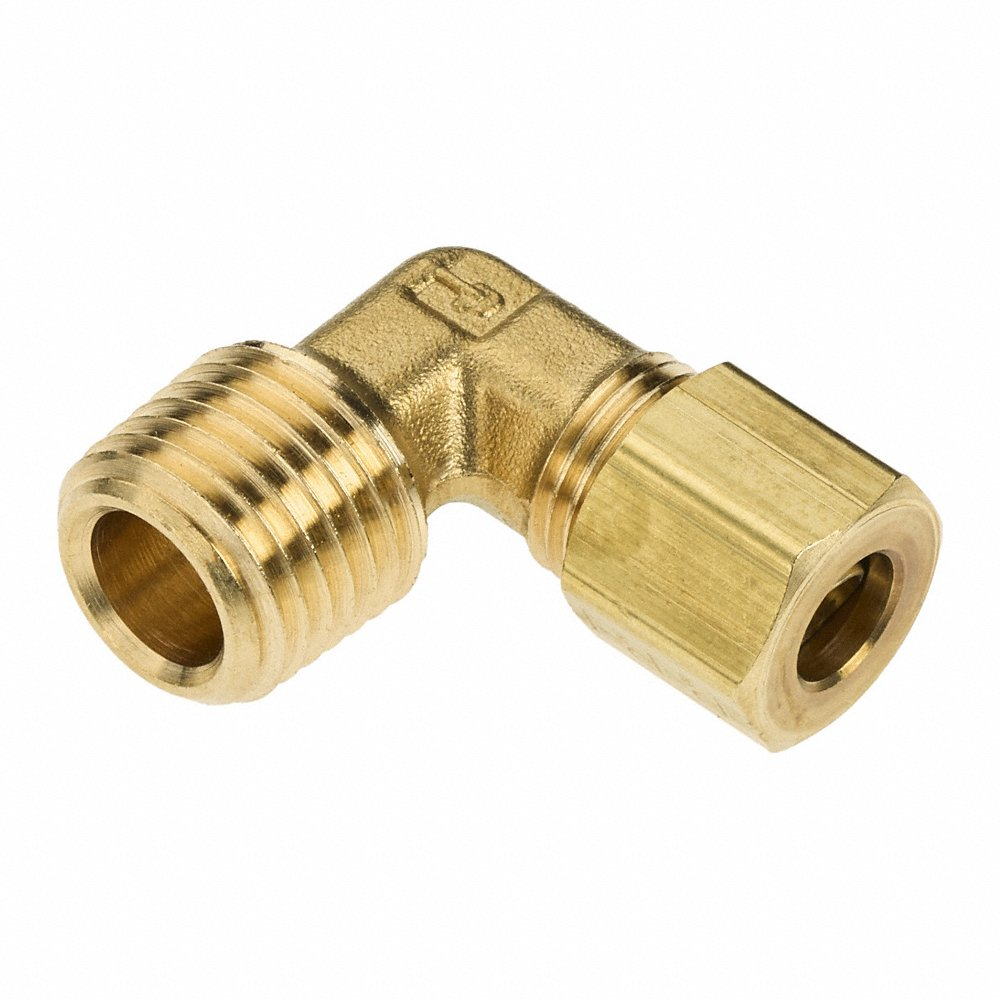

| 169C-4-4 | 1/4" | 1/4" | Forged Brass | 75 psi to 400 psi | 300 psi | 1/4" | 1/4" | 1/4" | 1 | €8.62 | |
| 169C-4-6 | 3/8" | 1/4" | Forged Brass | 75 psi to 400 psi | 300 psi | 1/4" | 1/4" | 3/8" | 10 | €171.89 | |
| 169C-5-2 | 1/8" | 0.312" | Forged Brass | 75 psi to 400 psi | 300 psi | 5/16" | 0.312" | 1/8" | 10 | €105.23 | |
| 169C-5-4 | 1/4" | 0.312" | Forged Brass | 75 psi to 400 psi | 300 psi | 5/16" | 0.312" | 1/4" | 10 | €118.61 |
