PARKER 165C-2 90 Deg Elbow, 1/8 Inch Outside Diameter, Brass
Item: AB3TUMModel: 165C-2Cross Ref: 1VDF6
7 In Stock
Ships within 2 days via
10.00% off
€151.47 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Forged Brass |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Compression Thread Size | 5/16" |
| Configuration Sub-type | Union Elbow |
| Connection Type | Compression |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 400 psi |
| Max. Operating Temp. | 121°C |
| Max. Operating Temp. | 121 Deg C |
| Max. Pressure | 75 psi to 400 psi |
| Maximum Operating Pressure | 2800 psi |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 13/16" |
| Product Datasheet | parker-165c-2.pdf |
| Series | Compression Series |
| Sleeve Material | Brass, Acetal |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow |
| Specific Pipe Fitting Shape | Elbow Union |
| Style | Tube To Tube |
| System Of Measurement | Imperial |
| Thread Size A | 5/16"-24 |
| Thread Size B | 5/16"-24 |
| Thread Type | NPTF |
| Tube Outside Dia. | 1/8" |
| Tube Size | 1/8" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 0.24 |
| Ship length (cm) | 2.06 |
| Ship width (cm) | 5.08 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Tube Size | Max. Pressure | Max. Operating Pressure | Tube Outside Dia. | Fitting Side A Tube Outer Diameter | Thread Size B | Fitting Side B Tube Outer Diameter | Thread Size A | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

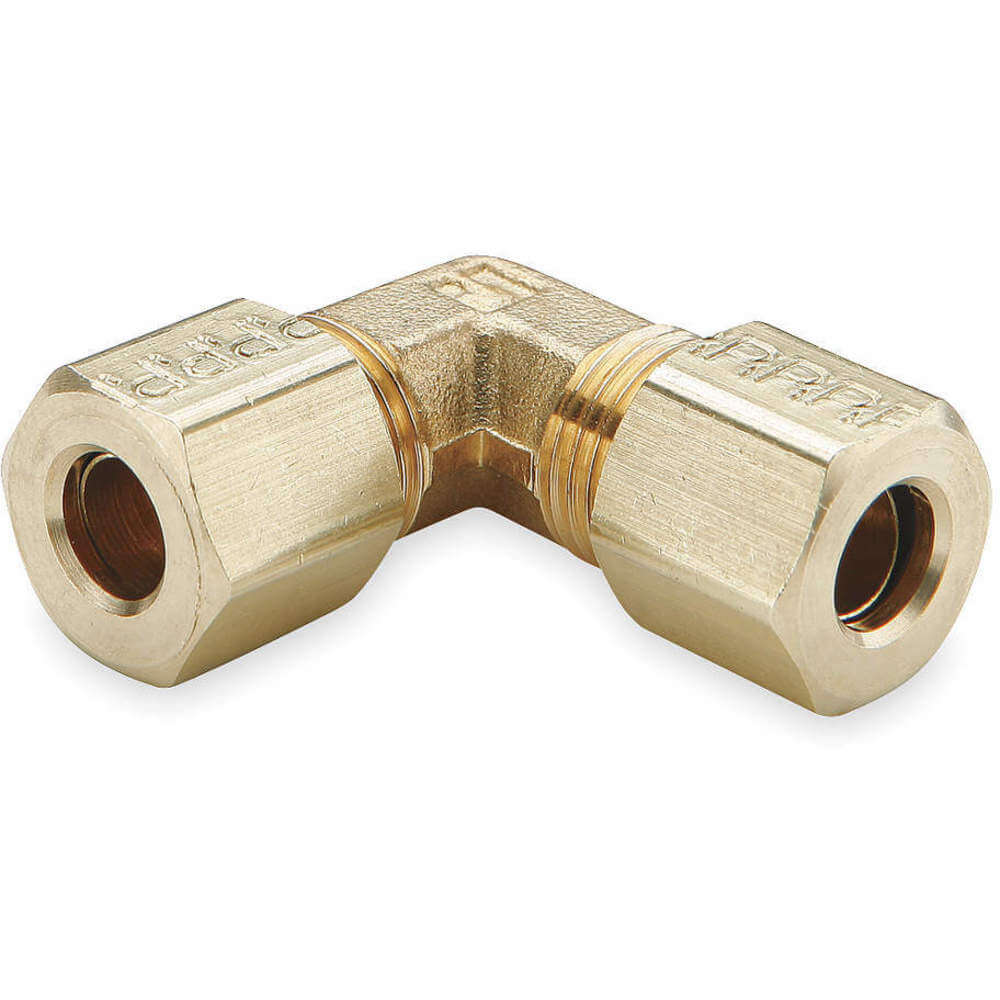

165C-10 | 5/8" | 75 psi to 400 psi | 150 psi | 5/8" | 5/8" | 13/16"-18 | 5/8" | 13/16"-18 | 10 | €401.65 | |
|
165C-3 | 3/16" | 75 psi to 400 psi | 400 psi | 0.188" | 3/16" | 3/8"-24 | 3/16" | 3/8"-24 | 10 | €131.07 | |
|
165C-5 | 5/16" | 75 psi to 400 psi | 300 psi | 0.312" | 5/16" | 1/2"-24 | 5/16" | 1/2"-24 | 10 | €154.15 | |
 |

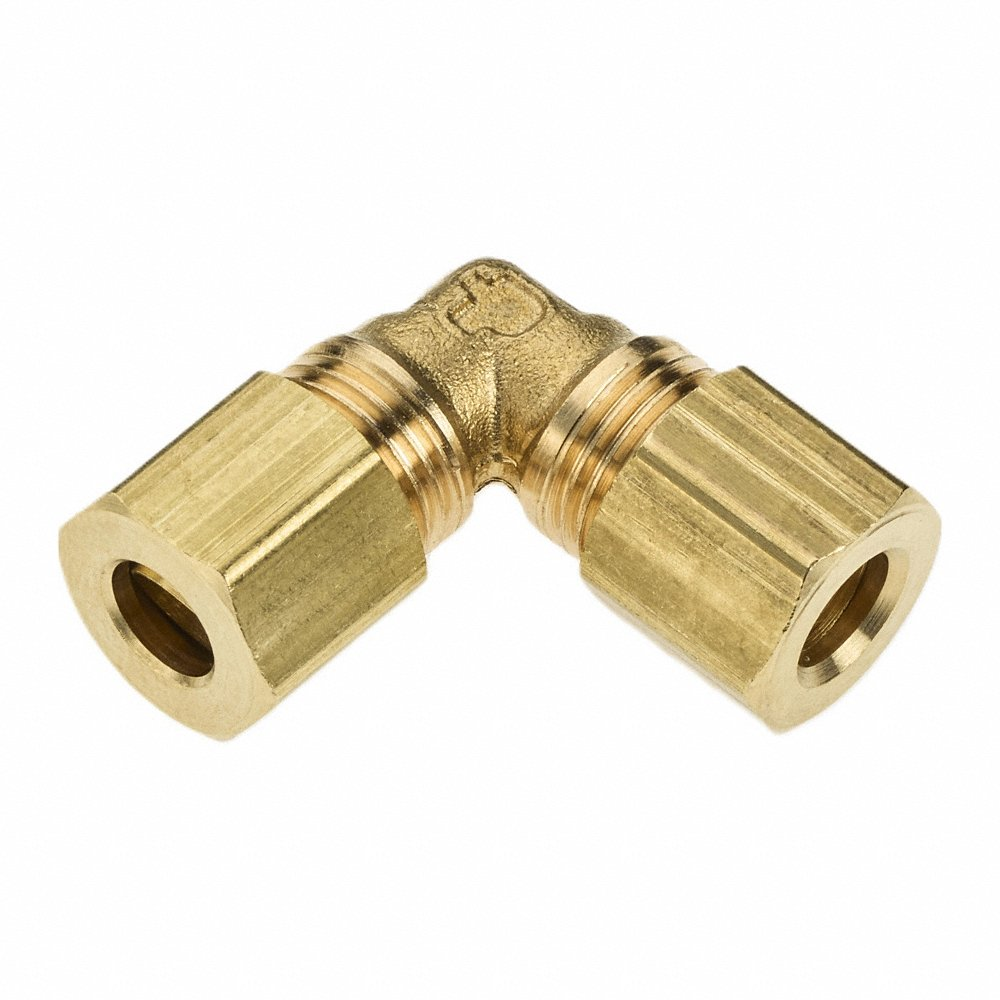

165C-4 | 1/4" | 300 psi | 1400 psi | 1/4" | 1/4" | 7/16"-24 | 1/4" | 7/16"-24 | 1 | €9.20 | |
 |
165C-6 | 3/8" | 200 psi | 20 psi | 3/8" | - | - | - | - | 10 | €132.95 | |
|
165C-8 | 1/2" | 200 psi | 200 psi | 1/2" | 1/2" | 11/16"-20 | 1/2" | 11/16"-20 | 10 | €219.22 | |
|
165C-12 | 3/4" | 100 psi | 550 psi | 3/4" | 3/4" | 1"-18 | 3/4" | 1"-18 | 5 | €476.62 |
