PARKER 164CA-4 Tee, 1/4 Inch Outside Diameter, Brass
Item: AE9PWXModel: 164CA-4Cross Ref: 6LF78
7 In Stock
Ships within 2 days via
10.00% off
€476.27 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Forged Brass |
| Compatible Tube Material | Aluminum, Copper, FEA, PFA, TFE, Thermoplastic |
| Connection Type | NPTF |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/4" |
| Fitting Side C Connection Type | Compression |
| Fitting Side C Tube Outer Diameter | 1/4" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi |
| Max. Operating Temp. | 121 Deg C |
| Max. Operating Temp. | 121°C |
| Max. Pressure | 1400 psi |
| Maximum Operating Temperature | 250°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 1 11/16" |
| Product Datasheet | parker-164ca-4.pdf |
| Shape | Tee |
| Sleeve Material | Brass |
| Specific Fitting Shape | Tee |
| Specific Pipe Fitting Shape | Tee Union |
| Style | Tube To Tube |
| Temp. Range | -65°F to +250°F |
| Thread Size A | 7/16"-24 |
| Tube Outside Dia. | 1/4" |
| Tube Size | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 11.43 |
| HS code | 7412200045 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Size | Max. Pressure | Specific Fitting Shape | Fitting Side A Tube Outer Diameter | Tube Outside Dia. | Fitting Side B Tube Outer Diameter | Fitting Side C Tube Outer Diameter | Overall Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

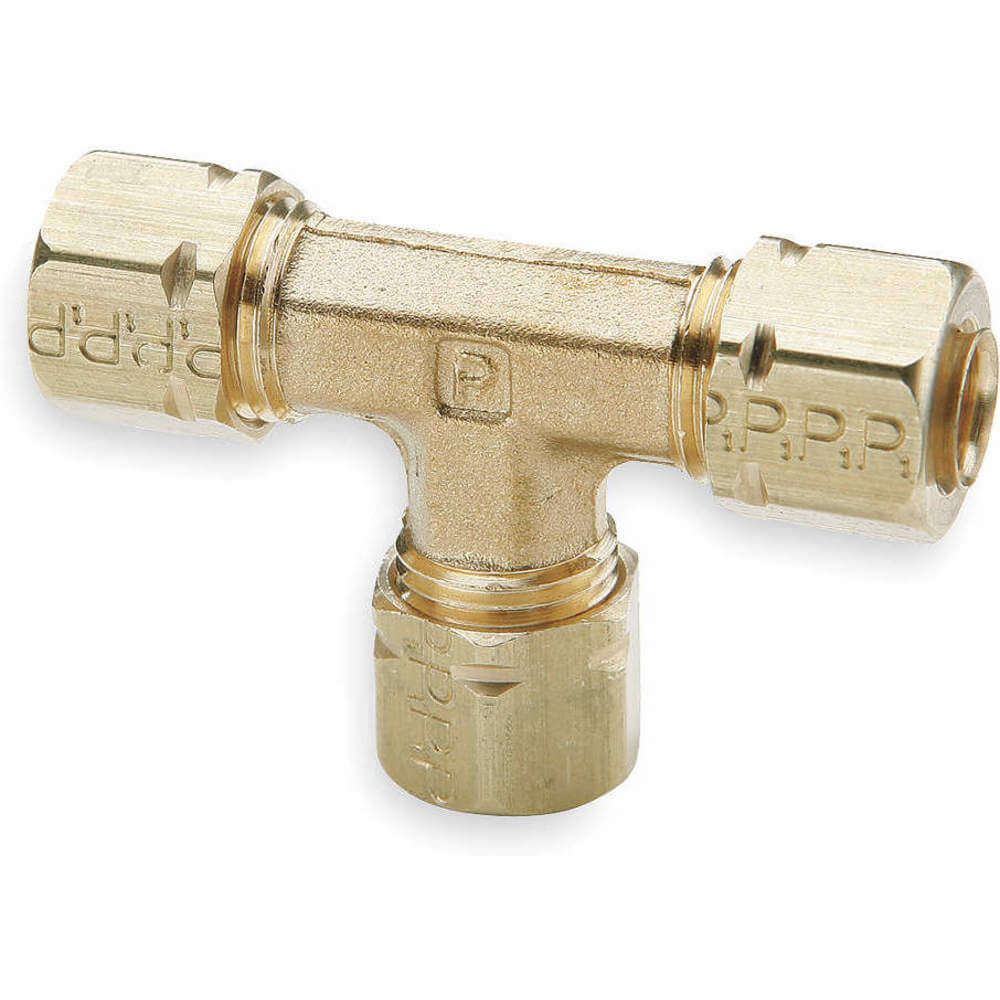

| 164CA-6-6-4 | 3/8" | 350 psi to 2800 psi | Tee | 3/8" | 3/8" | 3/8" | 1/4" | 1 15/16" | 10 | €453.03 | |

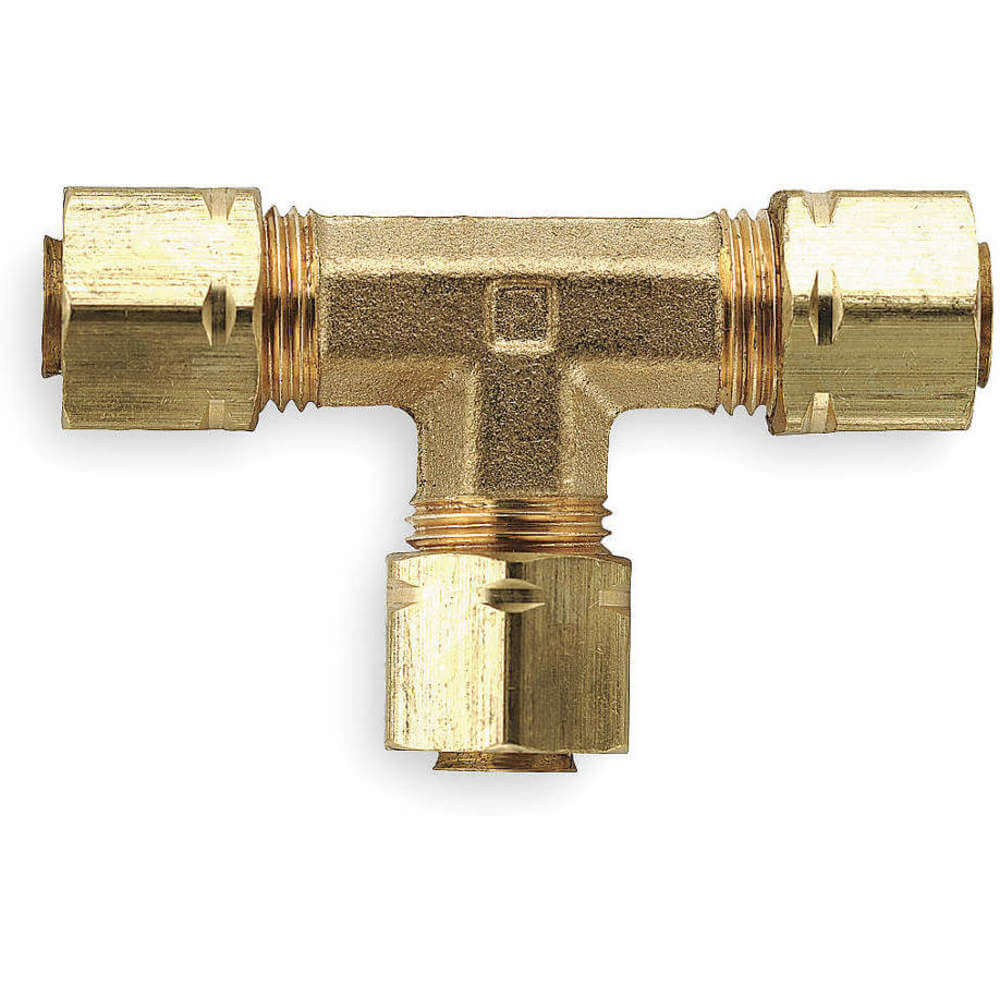

| 164CA-6-4-4 | 3/4" x 1/4" x 1/4" | 1000 psi | Reducing Tee | 3/8" | 3/8" | 1/4" | 1/4" | 1 15/16" | 10 | €429.00 | |
| 164CA-8-8-6 | 1/2" | 750 psi | Reducing Tee | 1/2" | 1/2" | 1/2" | 3/8" | 2 11/32" | 10 | €711.09 | |
| 164CA-12 | 3/4" | 550 psi | Tee | 3/4" | 3/4" | 3/4" | 3/4" | 3 5/16" | 6 | €651.42 | |
| 164CA-2 | 1/8" | 2800 psi | Tee | 1/8" | 1/8" | 1/8" | 1/8" | 1 11/16" | 10 | €270.10 | |
| 164CA-6 | 3/8" | 1000 psi | Tee | 3/8" | 3/8" | 3/8" | 3/8" | 1 29/32" | 25 | €700.69 | |
| 164CA-8 | 1/2" | 750 psi | Tee | 1/2" | 1/2" | 1/2" | 1/2" | 2 5/16" | 10 | €614.75 |
