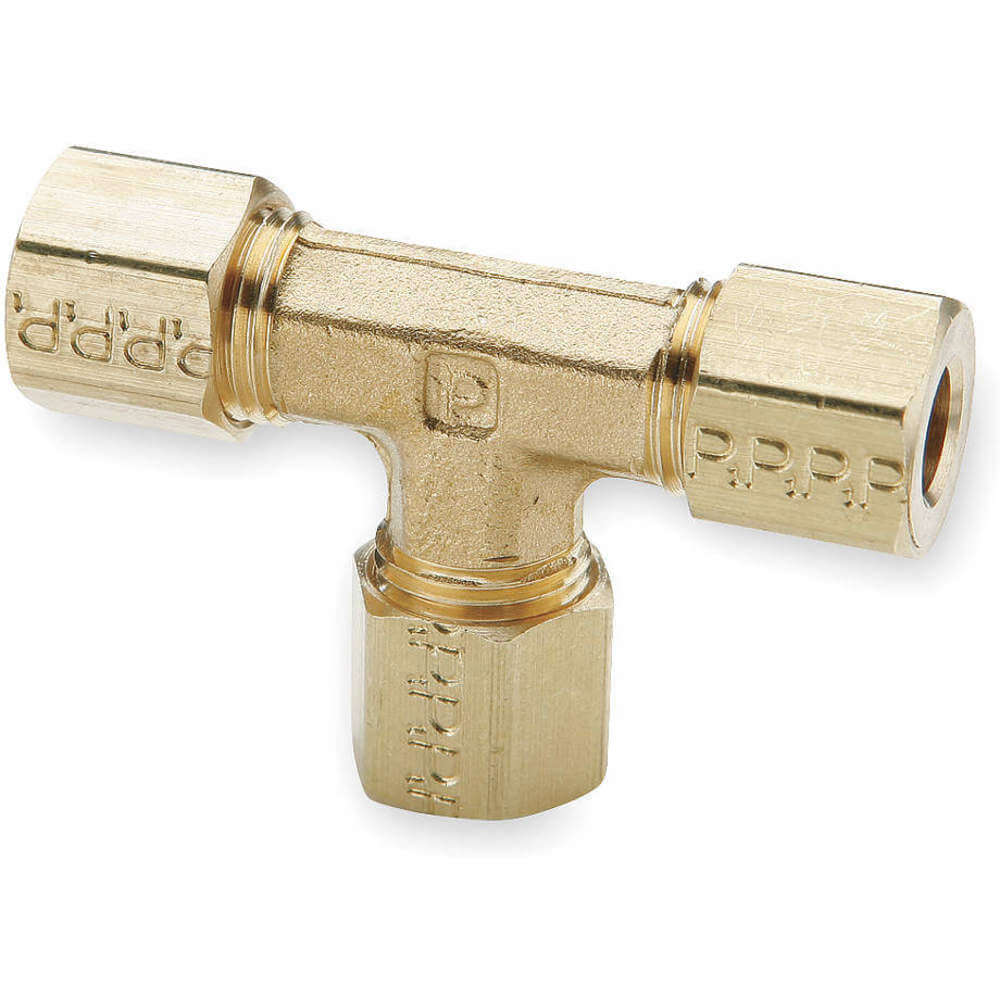

PARKER 164C-2 Tee, 1/8 Inch Outside Diameter, Brass
Item: AB3TUGModel: 164C-2Cross Ref: 1VDE9
7 In Stock
Ships within 2 days via
10.00% off
€153.60 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Air, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Forged Brass |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Compression Thread Size | 5/16" |
| Configuration Sub-type | Union Tee |
| Connection Type | Compression |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/8" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 1/8" |
| Fitting Side C Connection Type | Compression |
| Fitting Side C Tube Outer Diameter | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 400 psi |
| Max. Operating Temp. | 121 Deg C |
| Max. Operating Temp. | 121°C |
| Max. Pressure | 75 psi to 400 psi |
| Maximum Operating Temperature | 250°F |
| Min. Operating Temp. | -54°C |
| Minimum Operating Temperature | 65°F |
| Nut Material | Brass |
| Overall Length | 1 21/32" |
| Product Datasheet | parker-164c-2.pdf |
| Series | Compression Series |
| Shape | Tee |
| Sleeve Material | Brass, Acetal |
| Specific Fitting Shape | Tee |
| Specific Pipe Fitting Shape | Tee Union |
| Standards | SAE J512 |
| Style | Tube To Tube |
| System Of Measurement | Inch |
| Thread Size A | 5/16"-24 |
| Thread Type | NPTF |
| Tube Outside Dia. | 1/8" |
| Tube Size | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 4.21 |
| Ship width (cm) | 7.11 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Tube Size | Max. Pressure | Max. Operating Pressure | Fitting Side A Tube Outer Diameter | Tube Outside Dia. | Fitting Side B Tube Outer Diameter | Fitting Side C Tube Outer Diameter | Overall Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
164C-5 | 5/16" | 75 psi to 400 psi | 300 psi | 5/16" | 0.312" | 5/16" | 5/16" | 1 31/32" | 10 | €193.29 | |
 |

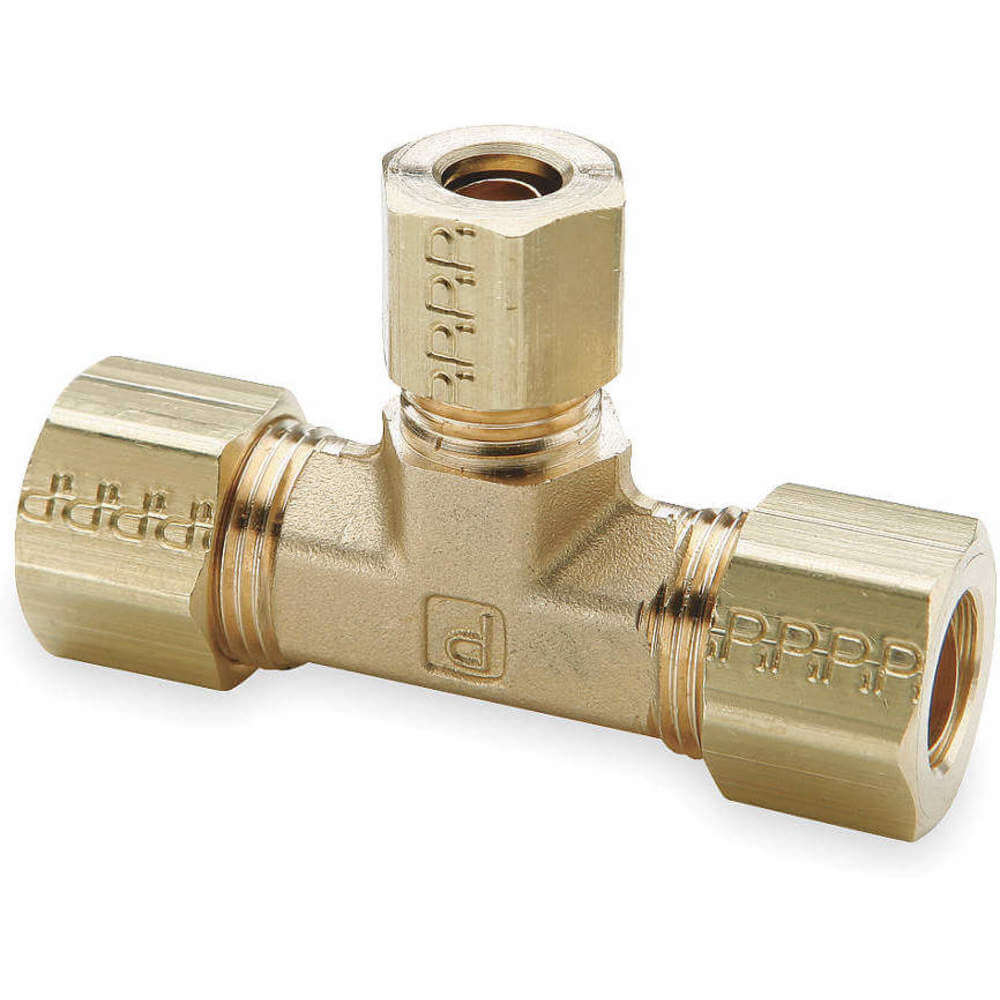

164C-6-6-4 | 3/4" x 3/4" x 1/4" | 75 psi to 400 psi | 200 psi | 3/8" | 3/8" | 3/8" | 1/4" | 2" | 10 | €249.87 | |
 |

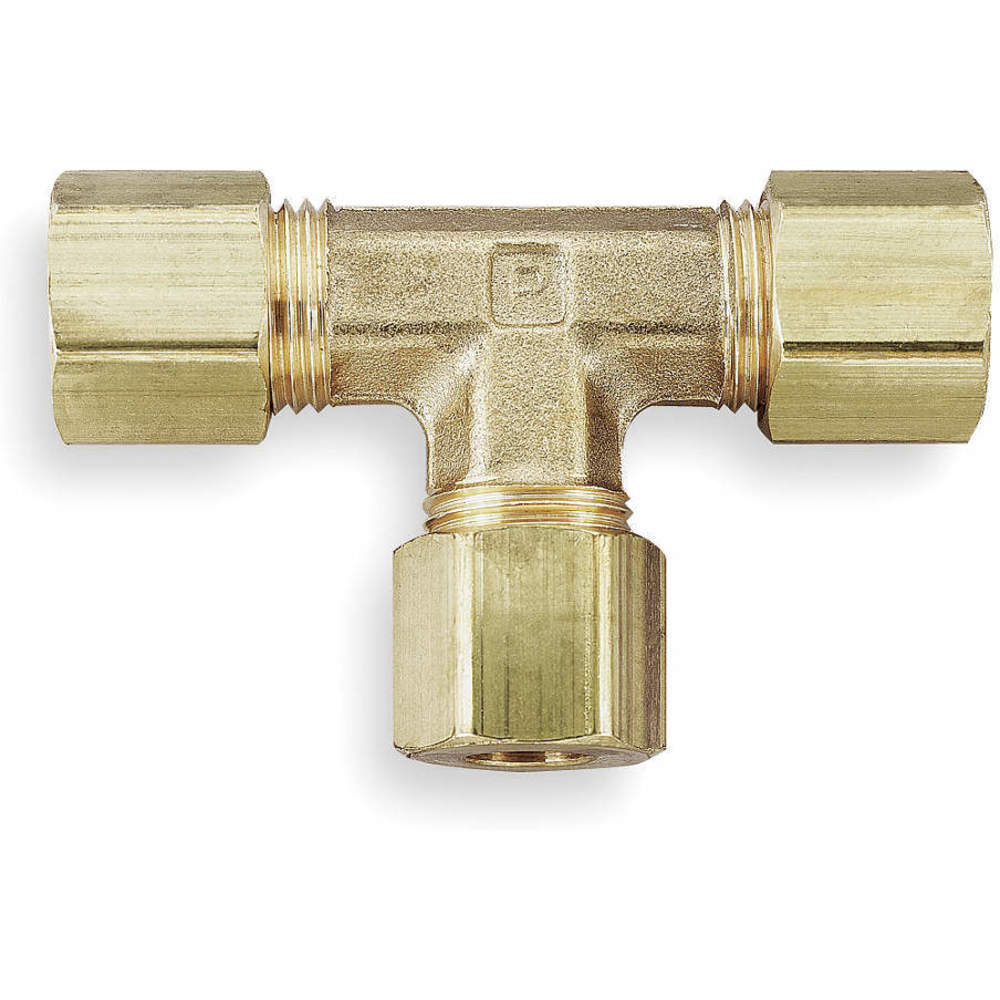

164C-4 | 1/4" | 300 psi | 300 psi | 1/4" | 1/4" | 1/4" | 1/4" | 1 23/32" | 10 | €132.95 | |
|
164C-6 | 3/8" | 200 psi | 200 psi | 3/8" | 3/8" | 3/8" | 3/8" | 2 1/16" | 10 | €173.95 | |
|
164C-8 | 1/2" | 200 psi | 200 psi | 1/2" | 1/2" | 1/2" | 1/2" | 2 11/16" | 10 | €326.70 | |
|
164C-10 | 5/8" | 150 psi | 150 psi | 5/8" | 5/8" | 5/8" | 5/8" | 3 3/32" | 10 | €514.33 | |
|
164C-6-4-4 | 3/4" x 1/4" x 1/4" | 300 psi | 200 psi | 3/8" | 3/8" | 1/4" | 1/4" | 2" | 10 | €319.30 |
