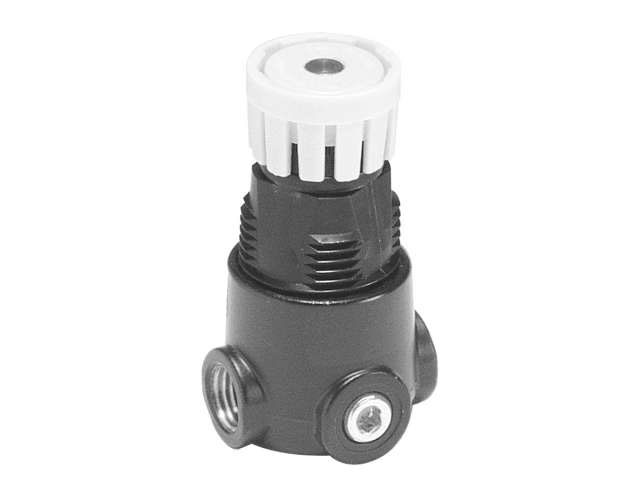

PARKER 14R013FC Air Pressure Regulator, Miniature, 1/8 Inch Size
Item: BT6GYNModel: 14R013FCCross Ref: 807AW7
7 In Stock
Ships within 2 days via
10.00% off
€55.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Regulator |
| Adjustment Mechanism | Knob |
| Air Inlet Size | 1/8" |
| Air Outlet Size | 1/8" |
| Air Outlet Type | NPT |
| Air Preparation Product Type | Regulator |
| Air Preparation Series | General Industrial Series |
| Body Material | Aluminum, Zinc |
| Connection Type | NPT |
| Flow Range | 0-25 SCFM |
| For Fluid Type | Compressed Air |
| For Substance Type | Air |
| Maximum Flow Rate | 13 SCFM |
| Maximum Operating Pressure | 300 psig |
| Maximum Operating Temperature | 125°F |
| Maximum Regulated Pressure | 125 psig |
| Minimum Operating Pressure | 0 psig |
| Minimum Operating Temperature | 32°F |
| Minimum Regulated Pressure | 0 psig |
| Operating Temp. Range | 0°C to 52°C |
| Overall Height | 2 7/8" |
| Overall Width | 1 5/8" |
| Port Inch/bsp | NPT |
| Port Size | 1/8" |
| Port Type | NPT |
| Pressure Gauge Included | No |
| Pressure Gauge Port Size | 1/8" |
| Pressure Gauge Port Type | NPT |
| Product Datasheet | parker-14r013fc.pdf |
| Regulator Type | Relieving |
| Relieving/non-relieving | Relieving |
| Seal Material | Nitrile |
| Secondary Pressure Range | 2 psig to 125 psig |
| Series | 14R MINI Series |
| Supply Pressure Range | 0 psig to 300 psig |
| Weight | 0.03 lbs. |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 4.13 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 7.3 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Max. Flow | Pressure | Regulator Type | Flow Range | Seal Material | Overall Height | Overall Width | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 14R113FC | 15 SCFM | 60 psig | Relieving | 0-25 SCFM | Nitrile | 2 7/8" | 1 5/8" | - | €62.90 | |
| 14R010FC | 13 SCFM | 30 psig | - | 0-25 SCFM | - | - | - | - | €42.25 | RFQ
|
| 14R011FC | 13 SCFM | 60 psig | - | 0-25 SCFM | - | - | - | - | €42.25 | RFQ
|
| 14R110FC | 15 SCFM | 30 psig | - | 0-25 SCFM | - | - | - | - | €42.25 | RFQ
|
| 14R111FC | 15 SCFM | 30 psig | Relieving | 0-25 SCFM | Nitrile | 2 7/8" | 1 5/8" | - | €62.03 | |
| 14R011F | - | - | - | - | - | - | - | - | €38.95 | |
| 14R110F | - | - | - | - | - | - | - | - | €38.95 |
