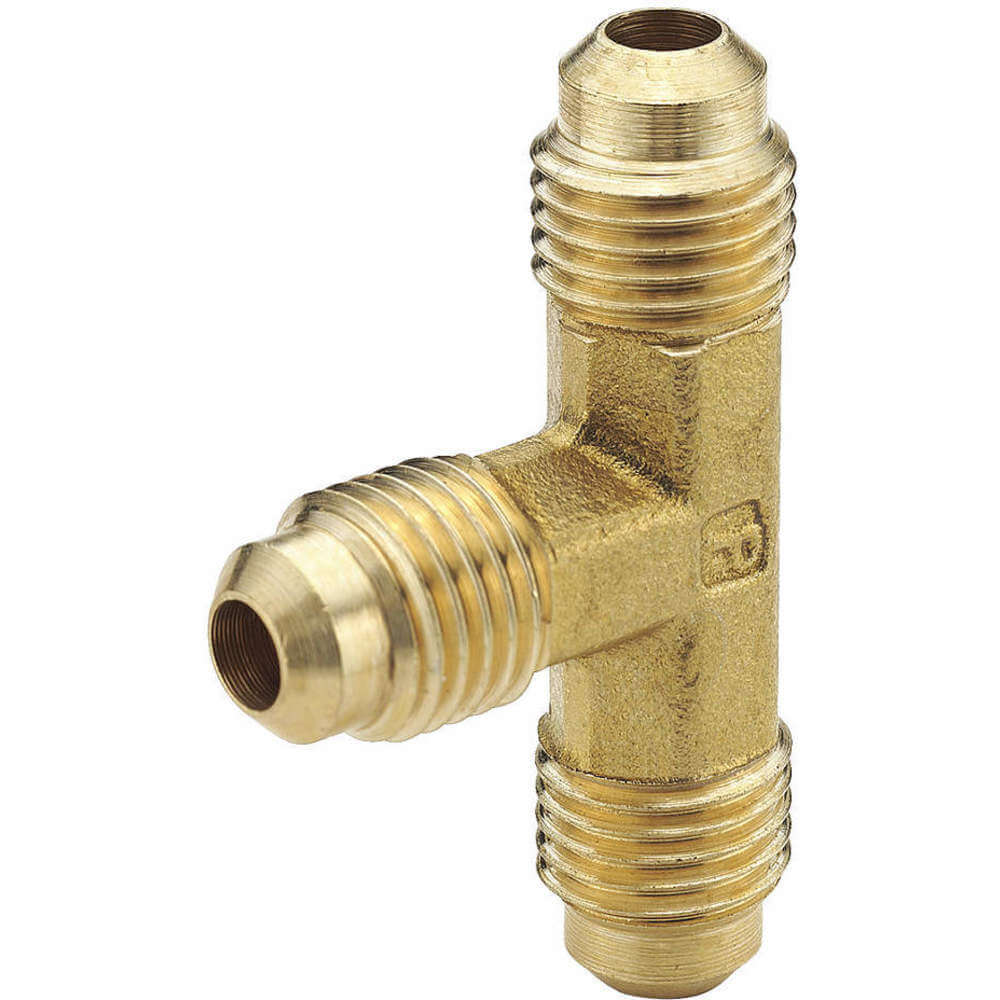

PARKER 144F-4 Union Tee, 1/4 Inch Outside Diameter, Brass
Item: AC2YHUModel: 144F-4Cross Ref: 2P163
7 In Stock
Ships within 2 days via
10.00% off
€61.79 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union Tee |
| Application | Air, Flammable Liquid, Freon, Inert Gases, Non-Combustible Gases |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Brass |
| Body Shape | Extruded |
| Configuration Sub-type | Union Tee |
| Configuration Type | Flare To Flare |
| Connection Type | Flare |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Flared |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | Flared |
| Fitting Side B Tube Outer Diameter | 1/4" |
| Fitting Side C Connection Type | Flared |
| Fitting Side C Tube Outer Diameter | 1/4" |
| Fitting Thread Size | 7/16"-20 |
| Flare Angle | 45° |
| Flare Thread Size | 7/16"-20 |
| Flare Type | 45° |
| Hex Size | 3/8" |
| Material | Brass |
| Max. Operating Pressure | 2800 psi |
| Max. Pressure | 1400 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | 65°F |
| O-ring Material | Fluorocarbon |
| Overall Length | 1 23/32" |
| Pressure Rating | 1400 psi |
| Product Datasheet | parker-144f-4.pdf |
| Sae Reference | SAE 010401 |
| Series | 45° FLARE Series |
| Specific Fitting Shape | Tee |
| Specific Pipe Fitting Shape | Tee Union |
| System Of Measurement | Inch |
| Temp. Range | -65°F to +250°F |
| Thread 1 Type | Fine |
| Thread 2 Size | 7/16"-20 |
| Thread 2 Type | Fine |
| Thread 3 Size | 7/16"-20 |
| Thread 3 Type | Fine |
| Tube Size | 1/4" |
| Type | Flare |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 0.95 |
| Ship length (cm) | 4.37 |
| Ship width (cm) | 0.95 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Size | Max. Pressure | Hex Size | Fitting Side A Tube Outer Diameter | Fitting Side B Tube Outer Diameter | Fitting Side C Tube Outer Diameter | Fitting Thread Size | Flare Thread Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 144F-3 | 3/16" | 450 psi to 2800 psi | 0.344" | 3/16" | 3/16" | 3/16" | 3/8"-24 | 3/8"-24 | 10 | €119.75 | |
| 144F-5 | 5/16" | 450 psi to 2800 psi | 0.469" | 5/16" | 5/16" | 5/16" | 1/2"-20 | 1/2"-20 | 10 | €255.25 | |
| 144F-6 | 3/8" | 1000 psi | 0.469" | 3/8" | 3/8" | 3/8" | 5/8"-18 | 5/8"-18 | 10 | €150.97 | |
| 144F-8 | 1/2" | 750 psi | 0.594" | 1/2" | 1/2" | 1/2" | 3/4"-16 | 3/4"-16 | 10 | €196.55 | |
| 144F-10 | 5/8" | 650 psi | 3/4" | 5/8" | 5/8" | 5/8" | 7/8"-14 | 7/8"-14 | 10 | €331.16 |
