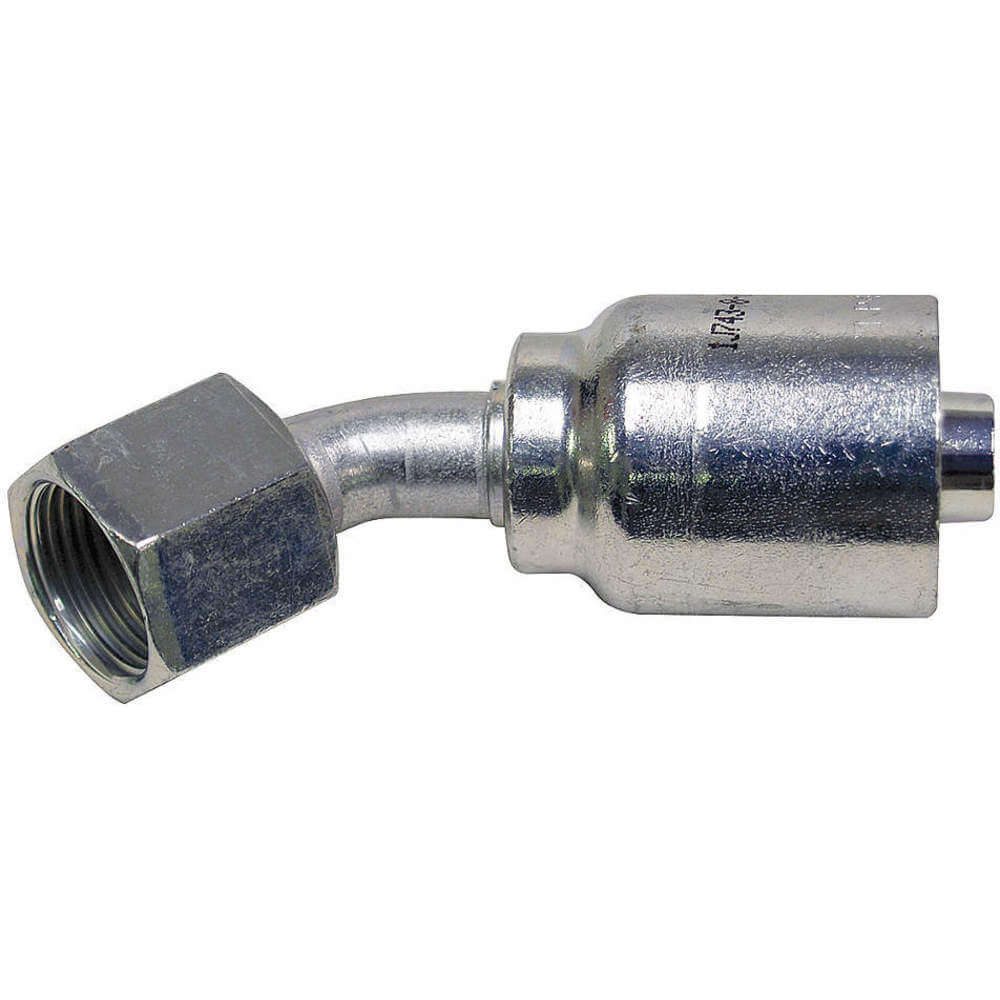

PARKER 13743-5-4 Hydraulic Hose Fitting 45 Deg Elbow, 1/4 Inch Internal Diameter, Steel
Item: AB6DTPModel: 13743-5-4Cross Ref: 21A770
7 In Stock
Ships within 2 days via
5.00% off
€48.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | 45° |
| Dash Size | 5 |
| Finish | Zinc Plated |
| Fitting Material | Steel |
| Fitting Movement | Swivel |
| Fitting Shape | 45° Elbow |
| For Hose Dash Size | -4 |
| For Hose Inside Dia. | 1/4" |
| For Use With Hose Series | 301LT Series, 302 Series, 304 Series, 351ST Series, 351TC Series, 422 Series, 424 Series, 426 Series, 431 Series, 436 Series, 451TC Series, 451ST Series, 471TC Series, 471ST Series, 472TC Series, 482TC Series, 482ST Series, 722TC Series, 881 Series |
| Hex Size | 5/8" |
| Hose | 1/4" |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 1/2" |
| Hose Fitting B Connection Type | Crimp |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1/4" |
| Hose Inside Dia. | 1/4" |
| Item Style | JIC 37° |
| Jic Thread (in.) | 1/2-20 |
| Length | 2.19" |
| Material | Steel |
| Max. Working Pressure @ 70f | 6000 psi |
| Port | 0.312" |
| Reusable | No |
| Sae Flare Size (in.) | 0.3125" |
| Sae Flare Size (in.) | 5/16 |
| Series | 43 Series |
| Standard Thread Size | 5/16" |
| Standard/metric | Standard Fitting |
| Style | Female JIC 37 Deg-Swivel |
| Thread Size | 1/2"-20 |
| Thread Type | JIC |
| Type | Parkrimp (Crimp) Fittings |
| Vacuum | Not Rated |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 3.25 |
| Ship length (cm) | 5.56 |
| Ship width (cm) | 2.3 |
| HS code | 8412909085 |
| Country of Origin | US |
Product Variants
| Model | Type | Finish | Hose Inside Dia. | Dash Size | Hose | Standard/metric | For Hose Dash Size | Fitting Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10643-4-4 | Parkrimp (Crimp) Fittings | Zinc | 1/4" | 4 | 1/4" | Standard Fitting | -4 | Straight | €18.51 | |
| 10643-5-4 | Parkrimp (Crimp) Fittings | Zinc | 1/4" | 5 | 1/4" | Standard Fitting | -4 | Straight | €19.54 | |
| 10643-6-4 | Parkrimp (Crimp) Fittings | Zinc | 1/4" | 6 | 1/4" | Standard Fitting | -6 | Straight | €19.01 | |
| 10643-4-6 | Crimp, Female JIC | Zinc | 3/8" | 4 | 3/8" | - | -4 | Straight | €23.95 | |
| 10643-6-6 | Parkrimp (Crimp) Fittings | Zinc | 3/8" | 6 | 3/8" | Standard Fitting | -6 | Straight | €21.58 | |
| 10643-8-6 | Parkrimp (Crimp) Fittings | Zinc | 3/8" | 8 | 3/8" | Standard Fitting | -6 | Straight | €22.27 | |
| 10643-6-8 | Parkrimp (Crimp) Fittings | Zinc | 1/2" | 6 | 1/2" | Standard Fitting | -6 | Straight | €53.03 |
