PARKER 12 F6L-S Swivel Connect Zinc Steel Female Orfsxm 3/4in
Item: AB4DTQModel: 12 F6L-SCross Ref: 1XCP8
7 In Stock
Ships within 2 days via
10.00% off
€102.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Thread Swivel Connector |
| Application | Air |
| Basic Material | Metal |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Compatible Fitting Brands | Seal Lok |
| Compatible Tube Hardness | 72 HRB |
| Compatible Tube Material | Alloy Steel, Copper, Monel Nickel Alloy, Stainless Steel, Steel |
| Compatible Tube Wall Thickness | 0.148" |
| Configuration Sub-type | Pipe Thread Swivel Connector Orfs Swivel, NPTF |
| Connection Type | Female ORFS x MNPT |
| End 2 Size | 3/4"-14 |
| End 2 Type | NPTF |
| Finish/coating | Zinc Nickel Plated |
| Fitting Material | Steel |
| Fitting Side A Connection Type | Swivel FNPT O Ring |
| Fitting Side A Tube Outer Diameter | 3/4" |
| Fitting Side B Connection Type | MNPTF |
| Fitting Side B Tube Outer Diameter | 3/4" |
| Hex Size | 1 1/4" |
| Material | Steel |
| Max. Operating Pressure | 5500 psi |
| Max. Pressure | 5500 psi |
| Maximum Operating Temperature | 500°F |
| Minimum Operating Temperature | 65°F |
| Overall Length | 2 3/8" |
| Product Datasheet | parker-12-f6l-s.pdf |
| Resistance Properties | Vibration Resistant |
| Series | ORFS Series |
| Specific Fitting Shape | Straight Swivel Adapter |
| System Of Measurement | Imperial |
| Temp. Range | -30°F to +250°F |
| Thread Size B | 3/4"-14 |
| Tube Fitting/adapter Type | ORFS, Seal Lok O Ring Face Seal |
| Tube Size | 3/4" |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 6.03 |
| Ship width (cm) | 3.18 |
| HS code | 7307995060 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Tube Size | Hex Size | Max. Operating Pressure | Max. Pressure | Fitting Side A Tube Outer Diameter | Thread Size B | Fitting Side B Tube Outer Diameter | Compatible Tube Wall Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

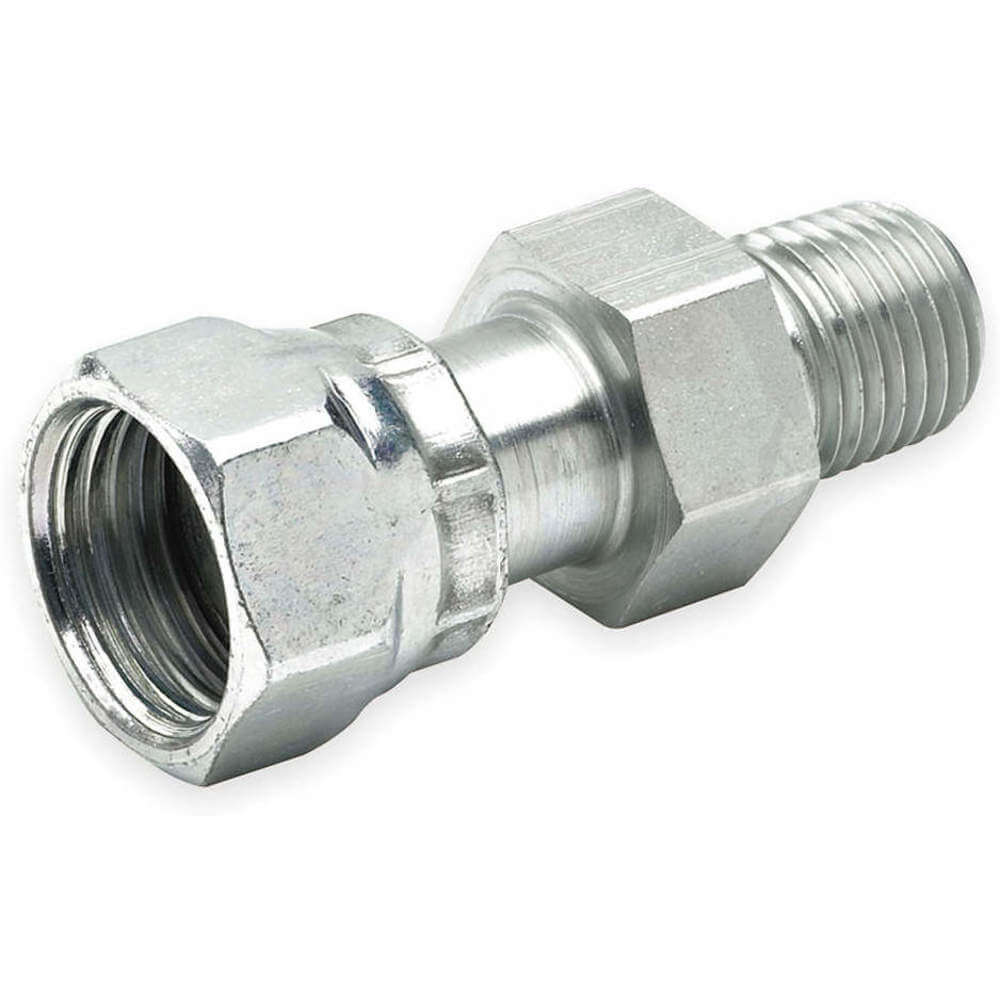

4-4 F6L-S | 1/4" | 5/8" | 6000 psi | 6000 psi | 1/4" | 1/4"-18 | 1/4" | 0.083" | €33.47 | |
|
6-6 F6L-S | 3/8" | 3/4" | 6000 psi | - | 3/8" | 3/8"-18 | 3/8" | 0.109" | €70.25 | |
|
8-8 F6L-S | 1/2" | 7/8" | 6000 psi | - | 1/2" | 1/2"-14 | 1/2" | 0.148" | €80.39 | |
|
16 F6L-S | 1" | 1 1/2" | 4500 psi | 4500 psi | 1" | 1"-11-1/2 | 1" | 0.188" | €77.36 | |
 |

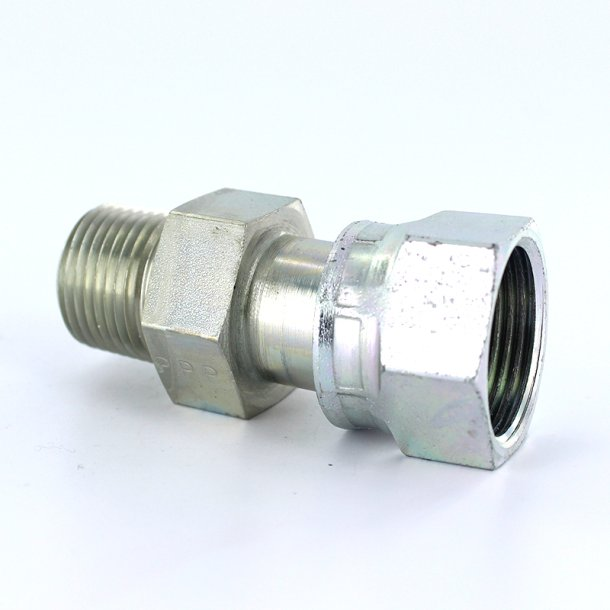

10 F6L-S | - | - | - | - | - | - | - | - | €54.14 | |
 |

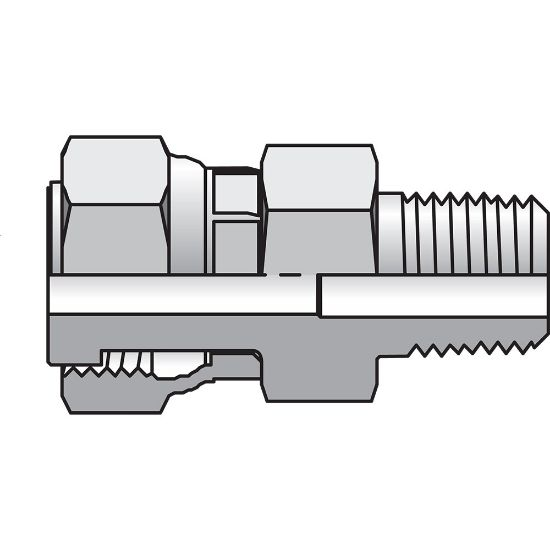

4 F6L-S | - | - | - | - | - | - | - | - | €17.98 | |
 |

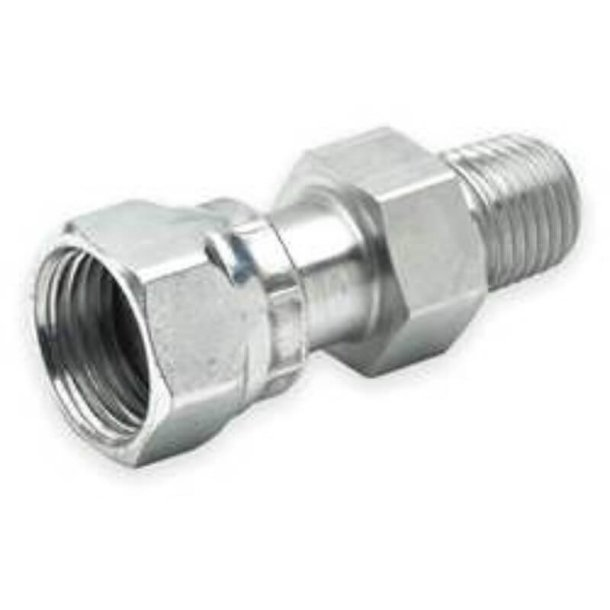

6 F6L-S | - | - | - | - | - | - | - | - | €24.94 |
