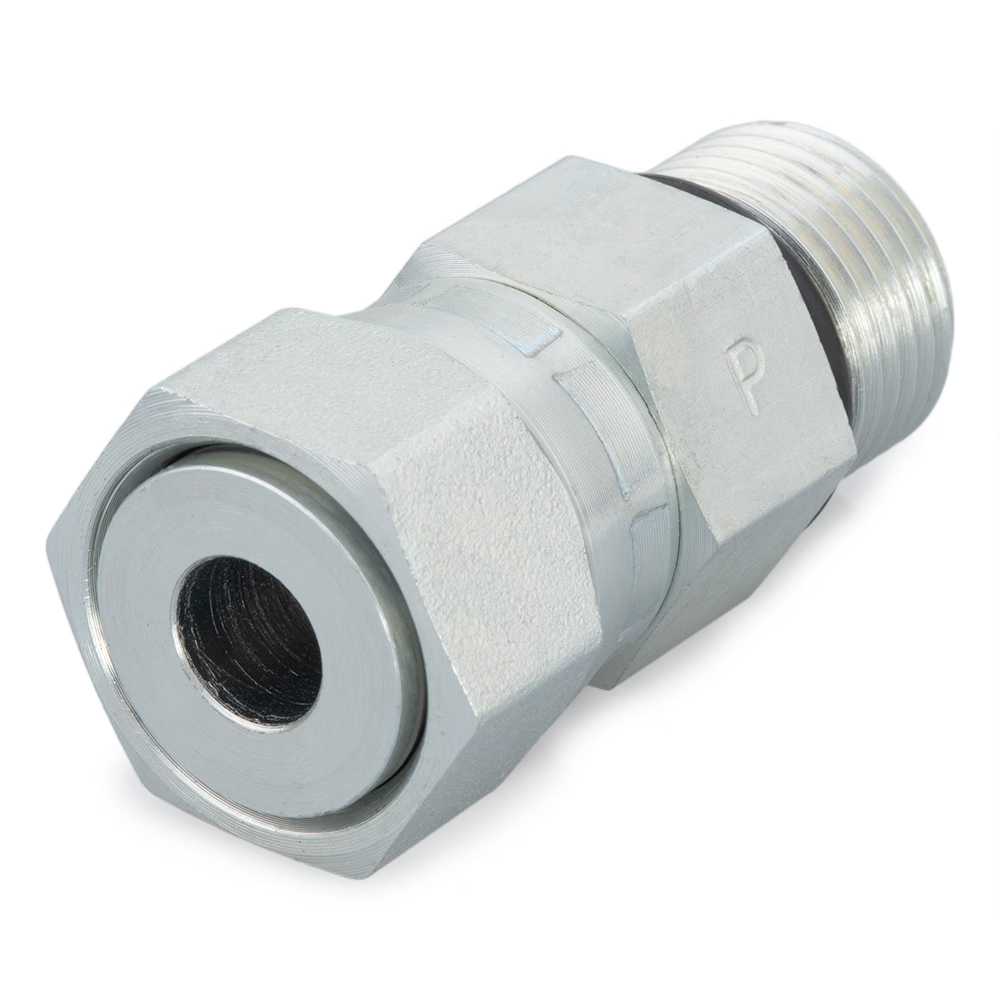

PARKER 12 F65OL-S Swivel Connect Zinc Steel Sae 3/4in
Item: AB4DTLModel: 12 F65OL-SCross Ref: 1XCP3
7 In Stock
Ships within 2 days via
10.00% off
€99.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Thread Swivel Connector |
| Application | Air |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Compatible Fitting Brands | Seal Lok |
| Compatible Tube Hardness | 72 HRB |
| Compatible Tube Material | Alloy Steel, Copper, Monel Nickel Alloy, Stainless Steel, Steel |
| Compatible Tube Wall Thickness | 0.148" |
| Configuration Sub-type | Straight Thread Swivel Connector Orfs Swivel, SAE Orb |
| Connection Type | Female ORFS x Male SAE ORB |
| End 2 Class | Class 2A |
| End 2 Type | Fine |
| Finish/coating | Zinc Nickel Plated |
| Fitting Material | Steel |
| Fitting Side A Connection Type | Swivel FNPT O Ring |
| Fitting Side A Tube Outer Diameter | 3/4" |
| Fitting Side B Connection Type | Male SAE ORB |
| Fitting Side B Tube Outer Diameter | 3/4" |
| Hex Size | 1 1/4" |
| Material | Steel |
| Max. Operating Pressure | 6000 psi |
| Max. Pressure | 6000 psi |
| Maximum Operating Temperature | 500°F |
| Minimum Operating Temperature | 65°F |
| Overall Length | 2 11/32" |
| Product Datasheet | parker-12-f65ol-s.pdf |
| Resistance Properties | Vibration Resistant |
| Series | ORFS Series |
| Specific Fitting Shape | Straight Swivel Adapter |
| System Of Measurement | Imperial |
| Temp. Range | -30°F to +250°F |
| Thread Size B | 1 1/16"-12 |
| Tube Fitting/adapter Type | ORFS, Seal Lok O Ring Face Seal |
| Tube Size | 3/4" |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 5.95 |
| Ship width (cm) | 3.18 |
| HS code | 7307199040 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Tube Size | Max. Pressure | Hex Size | Max. Operating Pressure | Fitting Side A Tube Outer Diameter | Thread Size B | Fitting Side B Tube Outer Diameter | Compatible Tube Wall Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
4 F65OL-S | 1/4" | 9200 psi | 5/8" | 9200 psi | 1/4" | 7/16"-20 | 1/4" | 0.083" | €39.31 | |
|
6 F65OL-S | 3/8" | 9200 psi | 3/4" | 9200 psi | 3/8" | 9/16"-18 | 3/8" | 0.109" | €44.59 | |
|
8 F65OL-S | 1/2" | 9200 psi | 7/8" | 9200 psi | 1/2" | 3/4"-16 | 1/2" | 0.148" | €58.12 | |
 |
10 F65OL-S | - | - | - | - | - | - | - | - | €48.62 | |
 |
16 F65OL-S | - | - | - | - | - | - | - | - | €76.82 | |
|
20 F65OL-S | - | - | - | - | - | - | - | - | €91.49 |
