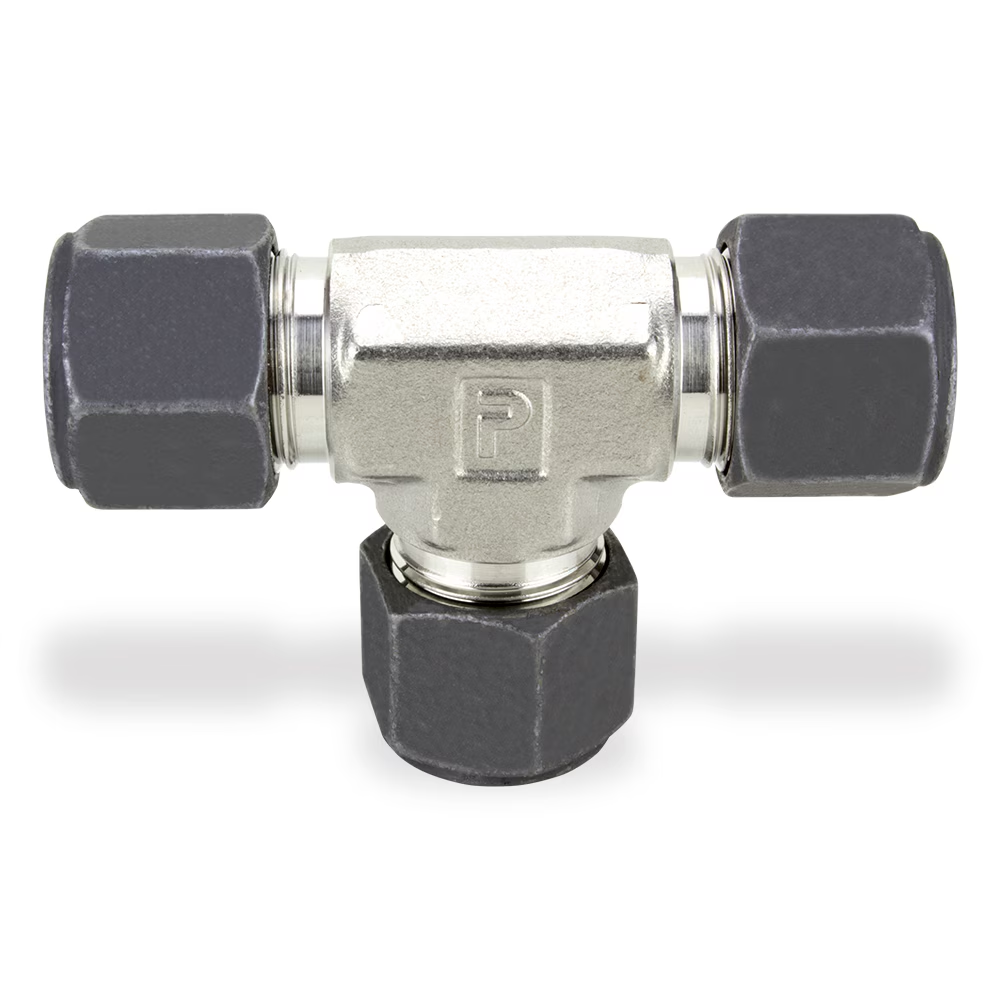

PARKER 12-12-12 JBZ-SS 12-12-12 JBZ-SS-GR Union Tee, 3/4 Inch Size, SS
Item: AD7ADJModel: 12-12-12 JBZ-SSCross Ref: 4CXA1 / 12-12-12 JBZ-SS-GR
7 In Stock
Ships within 2 days via
10.00% off
€313.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Gas, Oil |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Tee |
| Body Material | Stainless Steel |
| Configuration Sub-type | Union Flareless |
| Configuration Type | Tee |
| End 2 Type | Inch |
| End 3 Type | Inch |
| Ferrule Type | Single |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 3/4" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 3/4" |
| Fitting Side C Connection Type | Compression |
| Fitting Side C Tube Outer Diameter | 3/4" |
| Hex Size | 1 1/16" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Max. Operating Pressure | 10000 psi |
| Maximum Operating Temperature | 605°F |
| Minimum Operating Temperature | 255°F |
| Overall Length | 3 5/32" |
| Product Datasheet | parker-12-12-12-jbz-ss.pdf |
| Resistance Properties | Corrosion Resistant |
| Series | CPI Series |
| Specific Fitting Shape | Tee |
| Specific Pipe Fitting Shape | Tee Union |
| System Of Measurement | Imperial |
| Temp. Range | -425°F to +1200°F |
| Tube Fitting/adapter Type | Bite Type, CPI Single Ferrule Flareless |
| Tube Size | 3/4" |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 2.7 |
| Ship length (cm) | 8.02 |
| Ship width (cm) | 2.7 |
| HS code | 7307225000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Tube Size | Hex Size | Connection Type | Specific Fitting Shape | Fitting Side A Tube Outer Diameter | Fitting Side B Tube Outer Diameter | Fitting Side C Tube Outer Diameter | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4-4-4 JBZ-SS | 1/4" | 1/2" | Single Ferrule | Tee | 1/4" | 1/4" | 1/4" | 2 1/8" | €87.59 | |
|
6-6-6 JBZ-SS | 3/8" | 5/8" | - | Tee | 3/8" | 3/8" | 3/8" | 2 13/32" | €135.29 | |
|
8-8-8 JBZ-SS | 1/2" | 13/16" | - | Tee | 1/2" | 1/2" | 1/2" | 2 27/32" | €205.85 | |
|
2-2-2 JBZ-SS | 1/8" | 3/8" | CPI | Reducing Tee | 1/8" | 1/8" | 1/8" | 1 3/4" | €135.08 | |
 |
12-12-12 JBZ-S | - | - | - | - | - | - | - | - | €85.15 | |
 |
10-10-10 JBZ-SS | - | - | - | - | - | - | - | - | €137.06 | |
 |
3-3-3 JBZ-SS | - | - | - | - | - | - | - | - | €79.78 |
