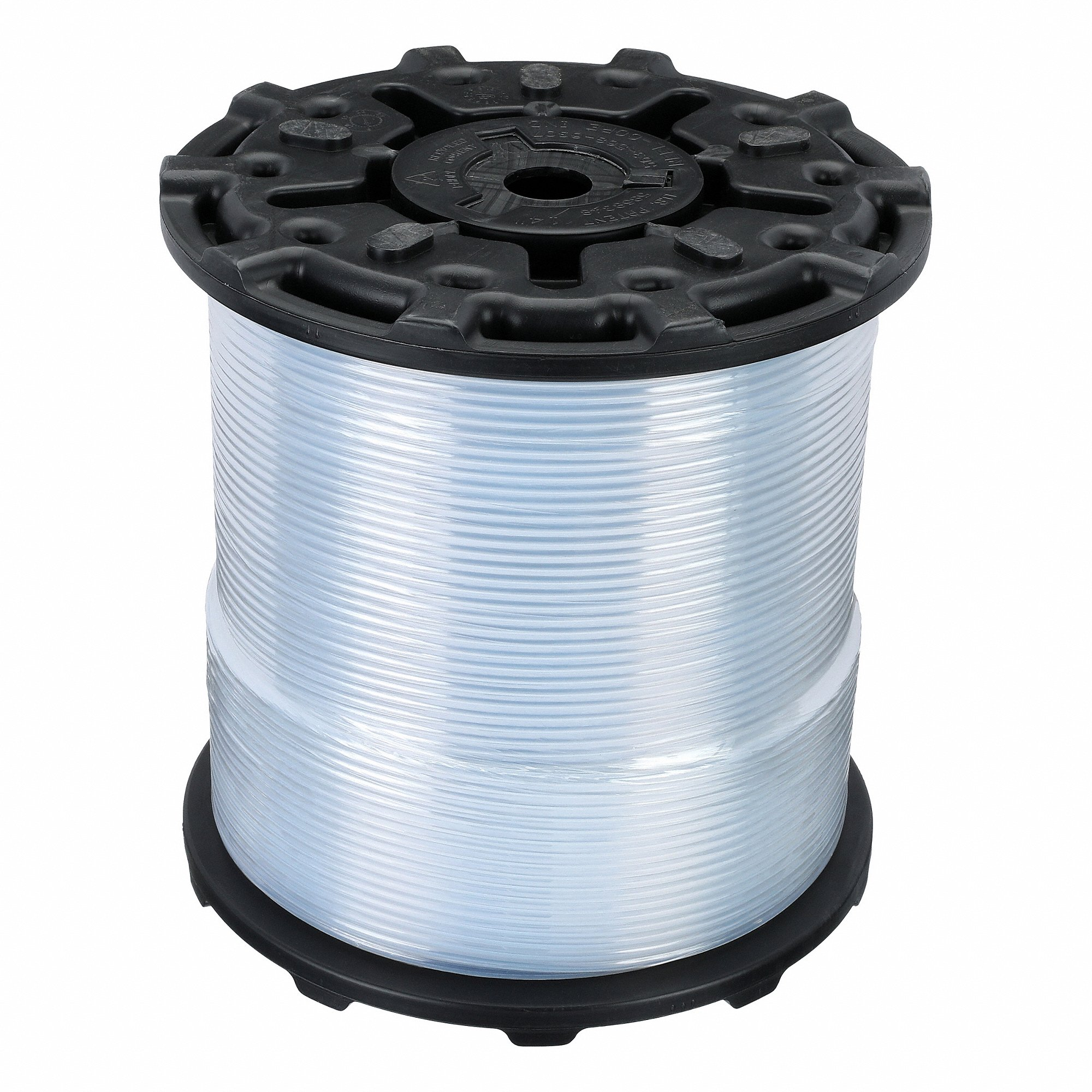

PARKER 105-0250047-NT-500 Tubing, High Purity Pfa, Clear, 5/32 Inch Id, 1/4 Inch OD, 500 Ft Length
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€4,266.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tubing |
| Application | Air, Chemical |
| Autoclavable | Yes |
| Bend Radius | 1/2" |
| Burst Pressure | 1360 psi |
| Clarity | Semi Clear |
| Coil Weight | 14 lbs. |
| Color | Clear |
| Elongation | 280% to 400% |
| Features | Chemically Inert To Nearly All Industrial Chemicals And Solvents, Heat Resistant Up To 500°F, Highest Molecular Weight Available, Low Coefficient Of Friction, Low Permeability, Non-Leaching, Nonflammable Materials, Withstands Corrosive Surfactants |
| Fitting Compatibility | Compression |
| Flexibility | Flexible |
| Flow Application | Flow Monitoring, Semiconductor |
| For Environment | Chemical |
| For Fluid Type | Gas |
| For Location | Indoor, Outdoor |
| For Potable Water Use | Yes |
| Hardness | Shore D 55 |
| Industry Application | Flow Monitoring, Life Science, Semiconductor |
| Inside Dia. | 0.156" |
| Inside Diameter | 5/32" |
| Length | 500 ft. |
| Material | High Purity PFA |
| Material Trade Name | Not Applicable |
| Max. Operating Pressure | 340 psi |
| Maximum Operating Temperature | 500°F |
| Maximum Vacuum Pressure | 28 in. hg |
| Minimum Operating Temperature | -100°F |
| Outside Dia. | 1/4" |
| Overall Length | 500 ft. |
| Peristaltic Pump Compatible | No |
| Resistance Properties | Heat Resistant |
| Stripe Color | No Stripe |
| System Of Measurement | Inch |
| Tensile Strength | 4500 psi |
| Tube Form | Coil |
| Vacuum Rated | Vacuum Rated |
| Vacuum Rating | Vacuum Rated |
| Wall Thickness | 0.047" |
| Weight Per Foot | 0.028 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 9.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Application | Material | Max. Operating Pressure | Overall Length | Outside Dia. | Wall Thickness | Inside Dia. | Burst Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
105-0500062-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | 210 psi | 50 ft. | 1/2" | 0.062" | 3/8" | 840 psi | €1,087.14 | |
|
105-0250047-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | 340 psi | 50 ft. | 1/4" | 0.047" | 0.156" | 1360 psi | €473.25 | |
|
105-0750062-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | 130 psi | 50 ft. | 3/4" | 0.062" | 5/8" | 520 psi | €1,648.74 | |
 |
105-1000062-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | 90 psi | 50 ft. | 1" | 0.062" | 7/8" | 360 psi | €2,392.13 | |
 |
104-0188031-NT-50 | Air, Beverage, Chemical, Food | Teflon | 320 psi | 50 ft. | 0.188" | 0.031" | 1/8" | 1280 psi | €241.17 | |
|
104-0500062-NT-50 | Air, Beverage, Chemical, Food | Teflon | 210 psi | 50 ft. | 1/2" | 0.062" | 3/8" | 840 psi | €970.04 | |
 |
104-0250047-NT-50 | Air, Beverage, Chemical, Food | Teflon | 340 psi | 50 ft. | 1/4" | 0.047" | 0.156" | 1360 psi | €422.57 |
