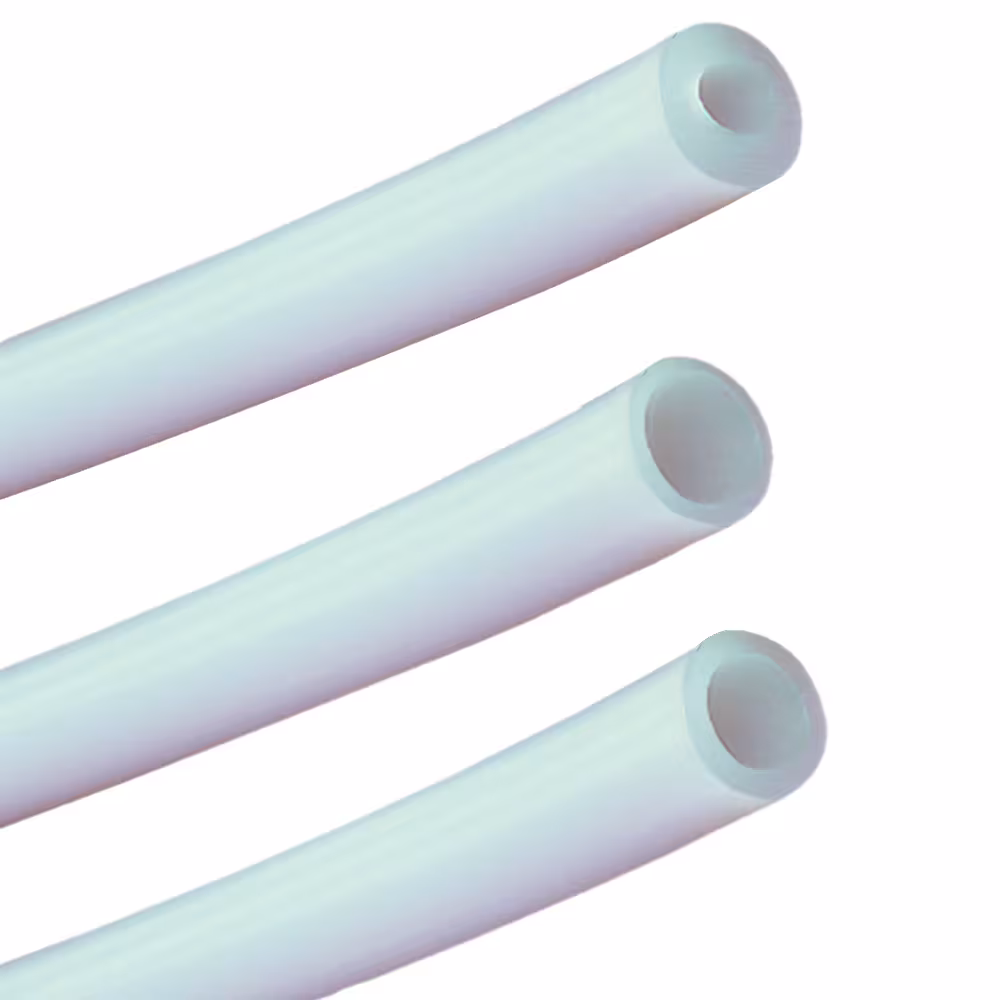

PARKER 104-0500062-NT-100 Tubing, Pfa, Clear, 3/8 Inch Id, 1/2 Inch OD, 100 Ft Length
Item: CT7KXWModel: 104-0500062-NT-100Cross Ref: 797EN0
7 In Stock
Ships within 2 days via
5.00% off
€2,304.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Air, Chemical, Fluid |
| Autoclavable | Yes |
| Bend Radius | 2 1/4" |
| Burst Pressure | 840 psi |
| Clarity | Semi Clear |
| Coil Weight | 7.9 lbs. |
| Color | Natural |
| Compatible Tube Wall Thickness | 0.062" |
| Elongation | 280% to 400% |
| End 1 Size | 1/2" |
| End 1 Type | NPT |
| End 2 Size | 1/2" |
| End 2 Type | NPT |
| Features | Chemically Inert To Nearly All Industrial Chemicals And Solvents, Low Coefficient Of Friction, Low Permeability, Self Extinguishing, Translucent |
| Fitting Compatibility | Compression |
| Flexibility | Flexible |
| Flow Application | Flow Monitoring, Fluid Transfer, Semiconductor, Steam Plant |
| For Environment | Chemical |
| For Fluid Type | Gas |
| For Location | Indoor, Outdoor |
| For Potable Water Use | Yes |
| Hardness | Shore D 55 |
| Industry Application | Laboratory, Semiconductor, Steam Plant |
| Inside Dia. | 3/8" |
| Length | 100 ft. |
| Material | Teflon |
| Material Trade Name | Not Applicable |
| Max. Operating Pressure | 210 psi |
| Max. Operating Temp. | 500°F |
| Max. Pressure | 230 psi |
| Max. Vacuum Pressure | 28 in. hg |
| Min. Operating Temp. | -100°F |
| Outside Dia. | 1/2" |
| Outside Dia. Tolerance | -0.005" to +0.005" |
| Overall Length | 100 ft. |
| Peristaltic Pump Compatible | No |
| Resistance Properties | Crack Resistant, Heat Resistant |
| Series | PFA Series |
| Stripe Color | No Stripe |
| System Of Measurement | Imperial |
| Tensile Strength | 4500 psi |
| Tube Form | Coil |
| Vacuum | Vacuum Rated |
| Wall Thickness | 0.062" |
| Weight Per Foot | 0.079 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 1.27 |
| Country of Origin | US |
Product Variants
| Product | Model | Application | Material | Max. Pressure | Max. Operating Pressure | Overall Length | Outside Dia. | Wall Thickness | Inside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
105-0500062-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | - | 210 psi | 50 ft. | 1/2" | 0.062" | 3/8" | €1,131.74 | |
|
105-0250047-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | - | 340 psi | 50 ft. | 1/4" | 0.047" | 0.156" | €494.67 | |
|
105-0750062-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | - | 130 psi | 50 ft. | 3/4" | 0.062" | 5/8" | €1,696.18 | |
 |
105-1000062-NT-50 | Air, Beverage, Chemical, Food | High Purity PFA | - | 90 psi | 50 ft. | 1" | 0.062" | 7/8" | €2,438.65 | |
 |
104-0188031-NT-50 | Air, Beverage, Chemical, Food | Teflon | 320 psi | 320 psi | 50 ft. | 0.188" | 0.031" | 1/8" | €246.77 | |
|
104-0500062-NT-50 | Air, Beverage, Chemical, Food | Teflon | 230 psi | 210 psi | 50 ft. | 1/2" | 0.062" | 3/8" | €1,017.63 | |
 |
104-0250047-NT-50 | Air, Beverage, Chemical, Food | Teflon | 370 psi | 340 psi | 50 ft. | 1/4" | 0.047" | 0.156" | €451.33 |
