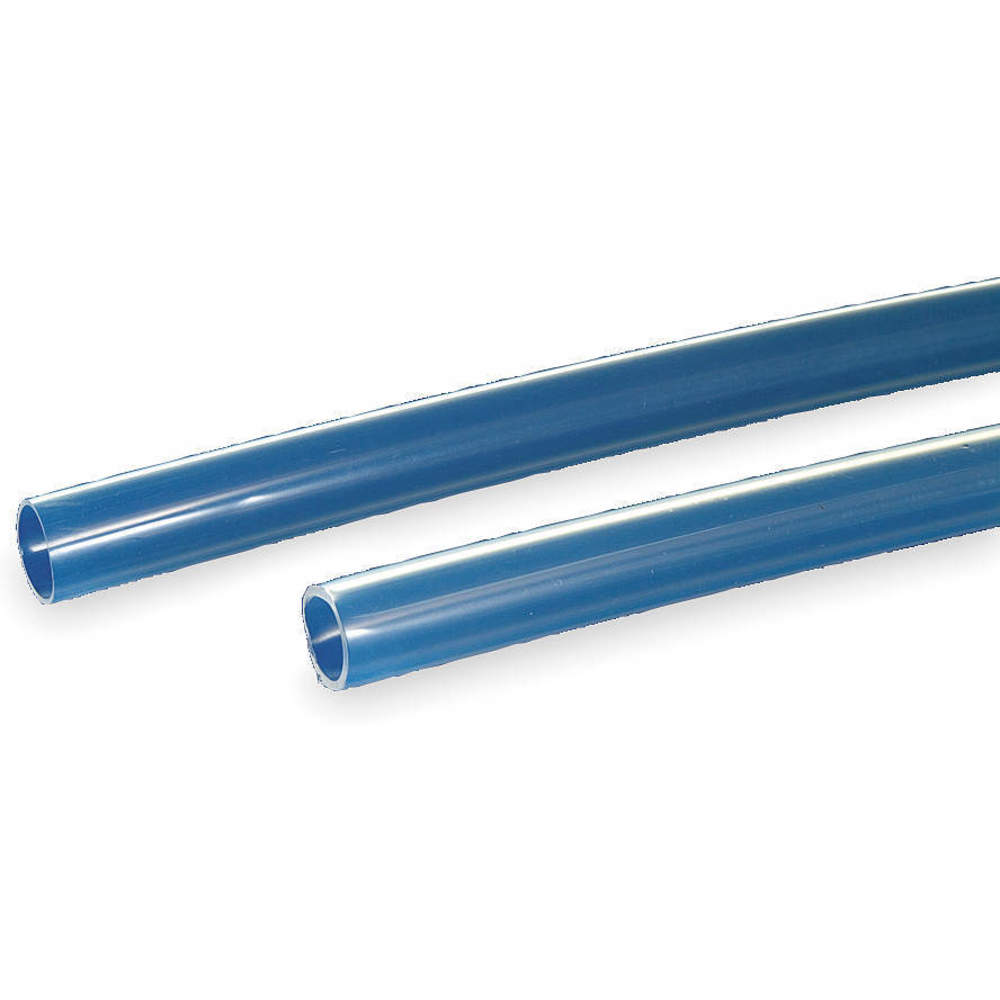

PARKER 104-0250062-NT-50 Tubing 1/8 Inch Id Pfa Natural 50 Feet
Item: AC3QYJModel: 104-0250062-NT-50Cross Ref: 2VLU8
7 In Stock
Ships within 2 days via
10.00% off
€408.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Air, Beverage, Chemical, Food |
| Bend Radius | 3/4" |
| Burst Pressure | 1880 psi |
| Clarity | Semi Clear |
| Color | Natural |
| End 1 Size | 1/4" |
| End 1 Type | NPT |
| End 2 Size | 1/4" |
| End 2 Type | NPT |
| Features | Chemically Inert, Low Coefficient Of Friction, Low Permeability, Non Leaching, Non-Wetting, Self-Extinguishing |
| For Environment | High Temperature |
| Hardness | Shore D 55 |
| Inside Dia. | 1/8" |
| Material | Teflon |
| Max. Pressure Range | 500 psi |
| Max. Working Pressure @ 70 Deg. F | 380 psi |
| Maximum Operating Pressure | 470 psi @ 73°F |
| Maximum Operating Temperature | 500°F |
| Maximum Vacuum Pressure | 28 in. hg |
| Min. Bending Radius | 1/2" |
| Minimum Operating Temperature | -100°F |
| Outside Dia. | 1/4" |
| Overall Length | 50 ft. |
| Pex Type | Not Applicable |
| Resistance Properties | Heat Resistant |
| Roll Length | 50 ft. |
| Series | PFA Series |
| System Of Measurement | Inch |
| Temp. Range | -329°F to +500°F |
| Tube Color | Natural |
| Tube Material | Perfluoroalkoxy |
| Vacuum Rated | Vacuum Rated |
| Wall Thickness | 0.062" |
| Weight Per Foot | 0.034 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 0.8 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 35.56 |
| HS code | 3917320050 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Inside Dia. | Wall Thickness | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|
|
104-0375031-NT-50 | 3/8" | 0.312" | 0.031" | Teflon | Natural | €443.88 |
