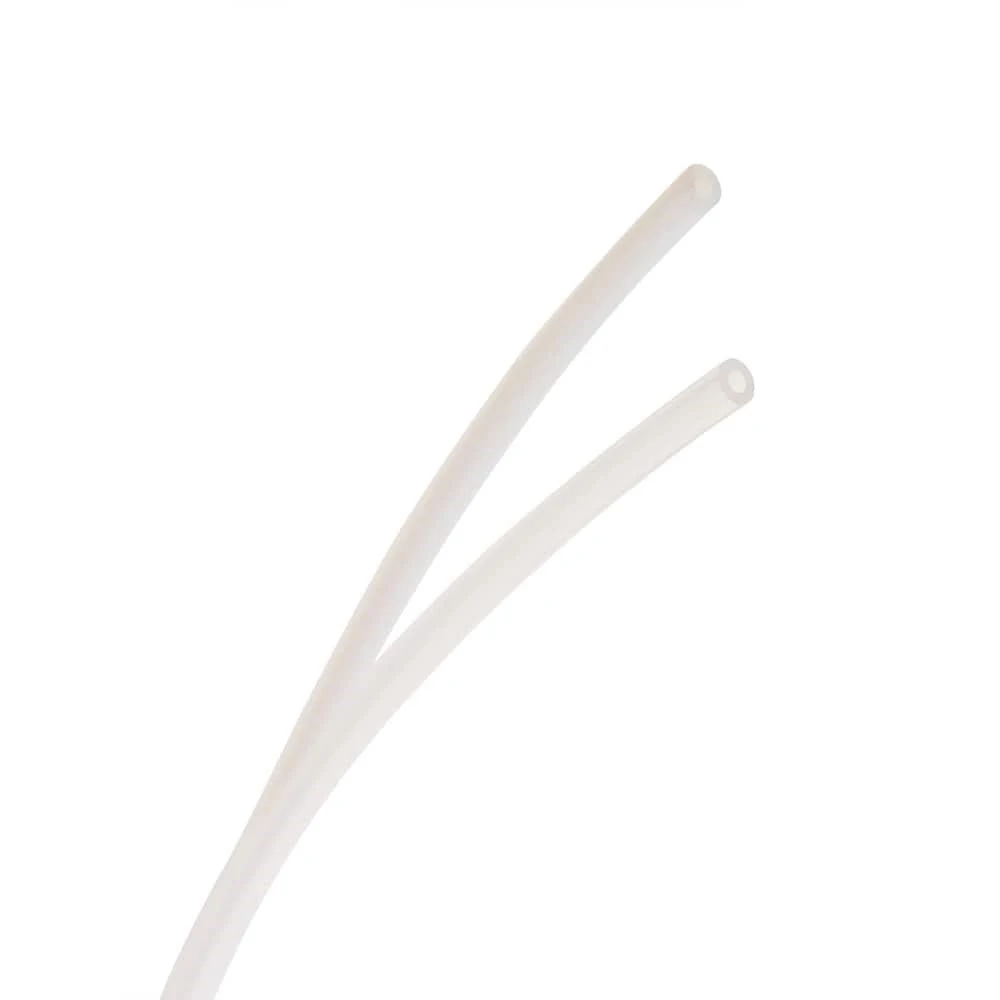

PARKER 103-0250047-NT-500 Tubing, Fep, Natural, 5/32 Inch Id, 1/4 Inch OD, 500 Ft Length, Shore D 55, Autoclavable
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€3,262.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tubing |
| Application | Chemical, Fluid, Water , Laboratory, Life Science |
| Color | Natural |
| Compatible Tube Wall Thickness | 0.047" |
| End 1 Size | 1/4" |
| End 1 Type | NPT |
| End 2 Size | 1/4" |
| End 2 Type | NPT |
| Features | Chemically Inert To Nearly All Industrial Chemicals And Solvents, Non-Wetting, Nonflammable, Weldable |
| Fitting Compatibility | Compression |
| For Fluid Type | Beverages, Gas, Water |
| For Location | Indoor, Outdoor |
| For Potable Water Use | Yes |
| Inside Dia. | 0.156" |
| Length | 500 ft. |
| Material | Teflon |
| Material Trade Name | Not Applicable |
| Max. Operating Temp. | 400°F |
| Max. Pressure | 1360 psi , 340 psi |
| Min. Operating Temp. | -100°F |
| Outside Dia. | 1/4" |
| Outside Dia. Tolerance | -0.005 to +0.005 |
| Resistance Properties | Chemical Resistant, Crack Resistant, UV Resistant |
| Series | FEP Series |
| Stripe Color | No Stripe |
| System Of Measurement | Imperial |
| Tensile Strength | 5000 psi |
| Tube Form | Coil |
| Wall Thickness | 0.047" |
| Weight Per Foot | 0.028 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 9.17 |
| Country of Origin | US |
Product Variants
| Model | Max. Operating Pressure | Wall Thickness | Max. Pressure | Compatible Tube Wall Thickness | End 2 Size | End 1 Size | Fitting Compatibility | Tube Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 103-0563031-NT-100 | 80 psi | 0.031" | 320 psi | 0.031" | 9/16" | 9/16" | Compression | Coil | €996.89 | |
| 103-0375062-NT-25 | 290 psi | 0.062" | 1440 psi | 0.062" | 3/8" | 3/8" | Compression | Coil | €401.63 | |
| 103-0500062-NT-100 | 210 psi | 0.062" | 1000 psi | 0.062" | 1/2" | 1/2" | Compression | Coil | €2,034.14 | |
| 103-0500062-NT-25 | 210 psi | 0.062" | 1000 psi | 0.062" | 1/2" | 1/2" | Compression | Coil | €547.51 | |
| 103-0375031-NT-100 | 130 psi | 0.031" | 440 psi | 0.031" | 3/8" | 3/8" | Compression | Coil | €833.86 | |
| 103-0438062-NT-100 | 250 psi | 0.062" | 1000 psi | 0.062" | 7/16" | 7/16" | Compression | Coil | €1,661.05 | |
| 103-0500031-NT-100 | 90 psi | 0.031" | 360 psi | 0.031" | 1/2" | 1/2" | Compression | Coil | €893.61 |
