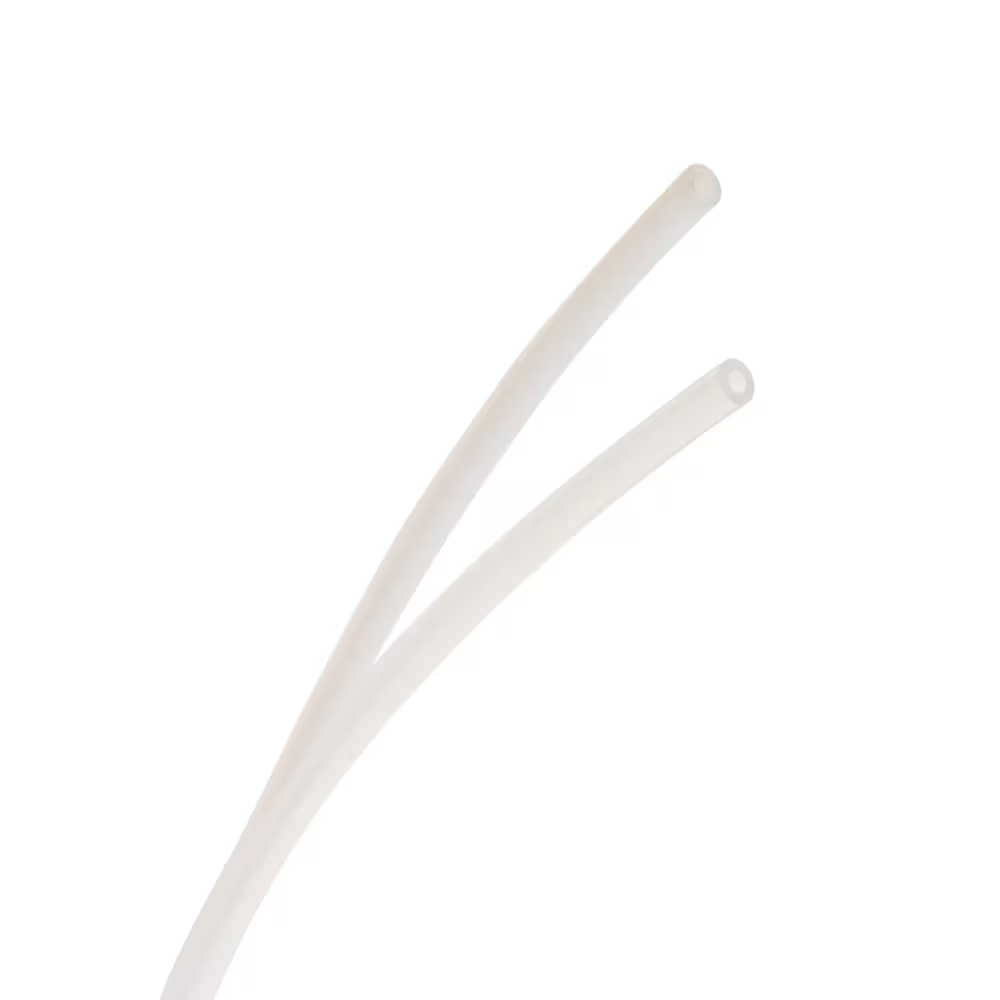

PARKER 103-0250040-NT-500 Tubing, Fep, Natural, 5/32 Inch Id, 1/4 Inch OD, 500 Ft Length, Shore D 55
Get it by Tuesday, Dec 23
10.00% off
€2,972.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tubing |
| Application | Chemicals, Fluid Transfer, Gas Sampling, Water |
| Autoclavable | Yes |
| Clarity | Clear |
| Coil Weight | 12.5 lbs. |
| Color | Natural |
| Compatible Tube Wall Thickness | 1/25" |
| End 1 Size | 1/4" |
| End 1 Type | NPT |
| End 2 Size | 1/4" |
| End 2 Type | NPT |
| Features | Chemically Inert To Nearly All Industrial Chemicals And Solvents, Non-Wetting, Nonflammable, Weldable |
| Fitting Compatibility | Compression |
| Flexibility | Flexible |
| For Environment | Chemical |
| For Fluid Type | Beverages, Gas, Water |
| For Location | Indoor, Outdoor |
| For Potable Water Use | Yes |
| Industry Application | Laboratory, Life Science |
| Inside Dia. | 0.156" |
| Inside Diameter | 5/32" |
| Length | 500 ft. |
| Material | Teflon |
| Material Trade Name | Not Applicable |
| Max. Operating Temp. | 400°F |
| Max. Pressure | 280 psi |
| Max. Pressure Range | 1120 psi |
| Maximum Operating Pressure | 280 psi |
| Min. Operating Temp. | -100°F |
| Outside Dia. | 1/4" |
| Outside Dia. Tolerance | -0.005 to +0.005 |
| Outside Diameter Tolerance | -0.005" to +0.005" |
| Overall Length | 500 ft. |
| Peristaltic Pump Compatible | No |
| Resistance Properties | Chemical Resistant, Crack Resistant, UV Resistant |
| Series | FEP Series |
| Stripe Color | No Stripe |
| System Of Measurement | Inch |
| Tensile Strength | 5000 psi |
| Tube Form | Coil |
| Wall Thickness | 1/25" |
| Weight Per Foot | 0.025 lbs.-ft. |
Shipping Info:
| Ship weight (kg) | 10.12 |
| Country of Origin | US |
Product Variants
| Model | Outside Dia. | Inside Dia. | Wall Thickness | Clarity | Fitting Compatibility | Overall Length | Outside Dia. Tolerance | Outside Diameter Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 103-0563031-NT-100 | 0.563" | 1/2" | 0.031" | - | Compression | 100 ft. | -0.006 to +0.006 | -0.006" to +0.006" | €973.56 | |
| 103-0375062-NT-25 | 3/8" | 1/4" | 0.062" | Clear | Compression | 25 ft. | -0.005 to +0.005 | -0.005" to +0.005" | €383.17 | |
| 103-0500062-NT-100 | 1/2" | 3/8" | 0.062" | - | Compression | 100 ft. | -0.005 to +0.005 | -0.005" to +0.005" | €1,969.19 | |
| 103-0500062-NT-25 | 1/2" | 3/8" | 0.062" | - | Compression | 25 ft. | -0.005 to +0.005 | -0.005" to +0.005" | €525.95 | |
| 103-0375031-NT-100 | 3/8" | 0.312" | 0.031" | Clear | Compression | 100 ft. | -0.005 to +0.005 | -0.005" to +0.005" | €804.13 | |
| 103-0438062-NT-100 | 0.438" | 0.312" | 0.062" | - | Compression | 100 ft. | -0.005 to +0.005 | -0.005" to +0.005" | €1,628.14 | |
| 103-0500031-NT-100 | 1/2" | 0.438" | 0.031" | - | Compression | 100 ft. | -0.006 to +0.006 | -0.006" to +0.006" | €867.41 |
